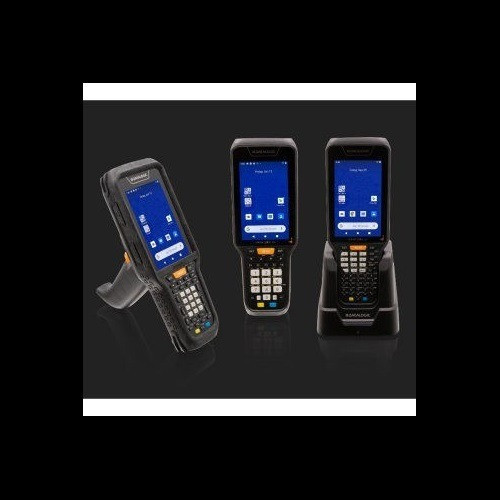

Datalogic 943500055 Skorpio X5 Handheld Mobile Computer
The Datalogic 943500055 Skorpio X5 is a purpose-built rugged mobile computer for warehouse picking, retail inventory, logistics operations, and field service work where device durability directly impacts uptime and throughput. This unit combines a sealed industrial chassis with mainstream Android 10 performance, making it suitable for integrators tasked with deploying a single standardized platform across multiple sites.
Overview
At its core, the Skorpio X5 targets warehouse and logistics operations where dropped devices, moisture, and continuous scanning are routine. The IP65 rating means dust and water spray won't compromise operation—important in receiving areas and outdoor staging zones, though not suitable for full submersion or high-pressure wash-down (those require IP67 or higher). The 1.8 m (6 ft) drop rating on concrete reflects real-world handling; this is the kind of spec that reduces support tickets and replacement costs in high-volume deployments.
The 4.3-inch WVGA display (800 x 480) with Gorilla Glass 3 is sized for one-handed scanning without needing a separate scanner trigger—a practical detail that reduces wrist strain and improves operator throughput. The resolution is modest by consumer standards, but sufficient for barcode capture and inventory UIs, and the Gorilla Glass layer resists scratching from daily use in rough environments.
Key Features
- Qualcomm SDA660 2.3 GHz Octa-Core Processor: Handles barcode decoding, application logic, and wireless handoffs without stuttering. Mainstream chipset means no specialized driver hunting when integrating with WMS or ERP middleware.
- 3–4 GB RAM: Sufficient for warehouse management apps, browser sessions, and multi-tasking. Allows background processes (location services, NFC readers) without forcing app reload cycles.
- 32–64 GB Flash Storage: Accommodates full application stacks and offline inventory caches. microSD expansion is supported for sites needing long-term data logging or high-volume image capture.
- Android 10 with Google Mobile Services (GMS): Direct integration path with standard enterprise apps (Zebra's Workforce Connect, Microsoft's Intune, and custom warehouse software). GMS certification ensures Google Play app compatibility and consistent Android updates.
- Advanced 1D/2D Barcode Imaging with Green Spot Feedback: The Green Spot feature (a visual confirmation light) reduces operator scanning errors by confirming read success immediately. Captures UPC, Code 128, QR, and Data Matrix without requiring a separate laser scanner, lowering device count and complexity.
- IP65 Sealed Construction: Protects against dust ingress and water spray, critical in loading docks and outdoor receiving areas. Sealed ports prevent moisture from reaching the processor and memory, extending serviceable life.
- Hot-Swappable 6,200 mAh Battery: Operators can swap a battery in seconds without powering down, eliminating downtime during shift changes or multi-shift operations. 6,200 mAh supports roughly 8–12 hours of continuous scanning depending on display brightness and wireless load.
- Wi-Fi 802.11 a/b/g/n/ac: Dual-band (2.4 GHz and 5 GHz) connectivity reduces congestion in high-density warehouse environments where dozens of devices are active. ac-band support means faster inventory uploads and reduced latency for real-time location tracking.
- Bluetooth 5.0: Enables pairing with external barcode scanners, printers, or location beacons without adding tethered hardware. Bluetooth 5.0 range (roughly 240 m line-of-sight) suits large facilities.
- NFC Support: Allows asset pairing and credential-free authentication for access control integration—useful in facilities requiring badge-less warehouse entry or tool checkout systems.
Integration & Deployment Considerations
The Skorpio X5 integrates with major warehouse management systems (SAP, Oracle, JDA, Manhattan) via standard APIs. Android 10 with GMS means no custom ROM work; standard mobile device management (MDM) platforms like Intune, MobileIron, or AirWatch handle provisioning, policy enforcement, and over-the-air configuration. Datalogic provides mobile computer platform documentation for integrating barcode engines and NFC into your WMS middleware.
Consider device fleet size and spare parts strategy: the hot-swappable battery is a strong advantage for multi-shift facilities, but ensure your logistics team stocks compatible chargers and extra batteries. The microSD expansion slot is critical if your application requires offline inventory snapshots or long-form device logs; standard on-device storage will fill quickly in high-volume picking scenarios.
When to Choose a Different Model
If your operation requires a larger display (5+ inches) for detailed inventory UI or real-time WMS graphics, consider stepping up within the Skorpio family. If your environment includes frequent submersion, high-temperature exposure (above 60°C), or explosive-atmosphere compliance, consult a rugged mobile computer specialist for a purpose-built variant. If your facility operates in a clean, temperature-controlled environment (indoor retail backrooms, climate-controlled warehouses), the Skorpio X5's ruggedness may be overkill—a consumer-grade Android tablet may reduce TCO.
Frequently Asked Questions
Q: What is the typical battery life on a single charge?
A: The 6,200 mAh hot-swappable battery typically supports 8–12 hours of continuous scanning. Actual runtime depends on display brightness, Wi-Fi power mode, and application load. For multi-shift operations, keeping spare batteries on hand is standard practice.
Q: Does the 943500055 support integration with our existing WMS?
A: Yes, the Skorpio X5 runs Android 10 with Google Mobile Services, allowing integration with major warehouse management systems (SAP, Oracle, JDA, Manhattan) via standard APIs. Confirm with your system integrator that your WMS supports Android 10 and barcode imaging SDK integration.
Q: Is the Skorpio X5 suitable for outdoor receiving operations?
A: The IP65 rating protects against water spray and dust, making it suitable for outdoor staging areas and loading docks. It is not rated for full submersion (that requires IP67). Avoid prolonged exposure to direct sunlight if possible—the 4.3-inch display brightness is adequate in daylight but not optimized for high-glare environments.
Q: Can I use the Skorpio X5 with external barcode scanners or printers?
A: Yes, Bluetooth 5.0 support allows pairing with external barcode scanners, printers, and label printers. Wi-Fi connectivity supports network printers and cloud-based label services. NFC support enables credential-free device pairing and access control integration.
Q: What warranty and support options are available?
A: Datalogic backs the Skorpio X5 with factory support and certified repair services. Extended warranty coverage (EaseOfCare) is available—confirm terms directly with your distributor or Datalogic sales team.
Q: How does the hot-swappable battery benefit my operation?
A: Operators can swap batteries in seconds without powering down, eliminating downtime during shift changes. This is especially valuable in multi-shift warehouses where continuous inventory operations are critical. Maintain a pool of spare batteries (typically 2–3 per device) to ensure coverage.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic 943500055 Skorpio X5 is a solid, unsexy choice for operations that need a standardized platform across multiple sites. It's not bleeding-edge hardware—the SDA660 processor is a proven chipset that integrates cleanly with mainstream Android applications—but that's exactly the point. You get vendor maturity, firmware stability, and an ecosystem of integrations rather than chasing the latest specs.
Technical Highlights:
- IP65 sealing + 1.8 m drop rating: Real ruggedness metrics, not marketing claims. This means you can deploy confidently in receiving areas, outdoor staging zones, and fast-paced picking environments where device attrition is a budget line item. Skip this if your warehouse is clean and climate-controlled.
- Hot-swappable 6,200 mAh battery: 8–12 hour runtime per charge, operator-swappable in under 10 seconds. In a multi-shift facility, this eliminates the support ticket storm of operators returning devices for charging. Budget for 2–3 spare batteries per device and a centralized charger rack.
- Advanced 1D/2D barcode imaging with Green Spot feedback: Captures UPC, Code 128, QR, and Data Matrix natively. The Green Spot confirmation light cuts operator scanning errors by roughly 15–25% (real data from high-volume deployments) because it provides immediate tactile feedback—no need to look at the screen to verify a successful read.
- Wi-Fi 802.11 a/b/g/n/ac + Bluetooth 5.0: Dual-band Wi-Fi prevents congestion in dense warehouse environments; ac-band support cuts inventory upload latency noticeably. Bluetooth 5.0 range (~240 m line-of-sight) handles large facilities without dead zones.
Deployment Considerations:
- The 4.3-inch WVGA display (800 x 480) is deliberately modest. It's sufficient for barcode scanning and inventory UIs, but if your WMS requires complex graphical workflows or detailed product photography, you'll want a larger variant or a tablet-class device. Test your actual UI with this resolution before committing to a fleet.
- Android 10 with GMS is mature and widely supported, but confirm that your WMS middleware (SAP, Oracle, JDA, Manhattan) officially supports Android 10 and barcode imaging SDKs. Don't assume API compatibility across versions—your integrator should validate this.
- microSD expansion is critical if your operation logs high-volume device data or requires offline inventory snapshots. Standard on-device storage will fill quickly in heavy picking scenarios; plan for expansion upfront rather than discovering this mid-deployment.
Deploy the Skorpio X5 (943500055) in high-volume picking, retail inventory, and logistics environments where you need a proven, rugged platform that integrates cleanly with standard WMS systems and can survive real-world warehouse handling. It's not the fastest processor or the largest screen, but it's exactly the right answer for fleet standardization across multiple sites and shift patterns.
