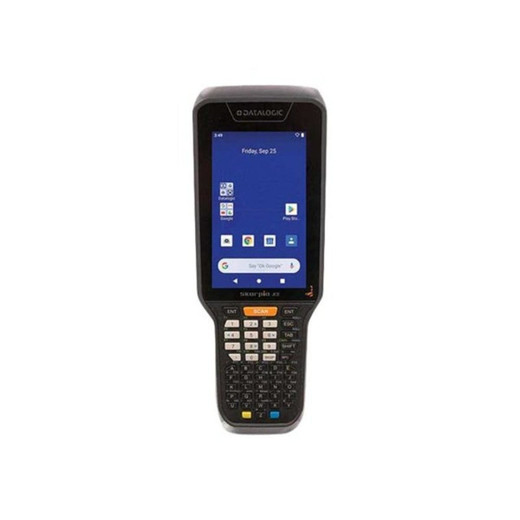

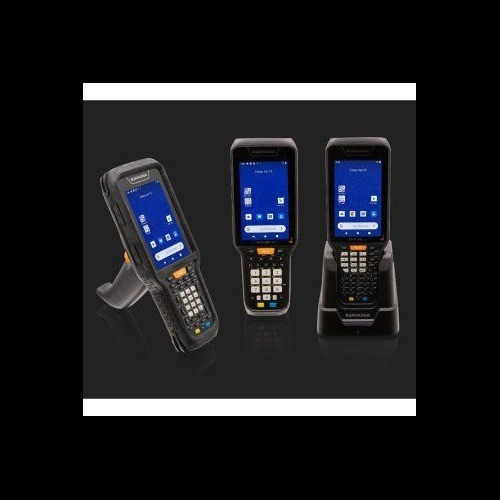

Datalogic 943500037 Skorpio X5 Handheld Mobile Computer
The Datalogic Skorpio X5 (model 943500037) is a rugged handheld mobile computer engineered for high-velocity warehouse, retail, and logistics operations where device durability and sustained performance directly impact throughput and uptime. The platform balances industrial resilience with Android-based application flexibility—a practical choice for enterprises deploying mobile workforce management at scale.
Key Features
- 4.3-inch WVGA (800 × 480) touchscreen with Gorilla Glass 3: Screen size balances visibility and portability—large enough for data-heavy applications and barcode imaging, compact enough to fit cargo pockets and holsters during all-day picking cycles. Gorilla Glass 3 resists scratches and accidental impacts common in warehouse handling.
- Qualcomm SDA660 2.3 GHz octa-core processor: Sufficient processing power for multithreaded warehouse applications (inventory lookups, barcode scanning, real-time data sync) without the thermal overhead or cost of flagship processors. Handles concurrent app operations without lag or forced closures.
- 3–4 GB RAM and 32–64 GB Flash storage with microSD expansion: RAM tier supports simultaneous app execution; Flash capacity handles pre-loaded databases and application caching. microSD slot (up to ~512GB typical) enables offline database snapshots—critical for cold storage or geofenced zones where network latency is high or unavailable.
- IP65 ingress protection rating: Dust and water resistant—brief splashes from wash-down hoses and moisture-heavy environments (cold storage, beverage facilities) won't compromise operation. IP65 is not submersion-rated; avoid prolonged immersion or high-pressure spray directly at seams.
- 1.8 m (6 ft) drop rating on concrete: Specifies survival from waist-height drops onto hard flooring—the most common real-world failure mode in fast-paced picking operations. Drop tests are conducted to IEC 60068-2-32; repeated impacts or drops from higher elevations may exceed rated durability.
- Hot-swappable 6,200 mAh battery: Staff can swap a depleted unit for a pre-charged spare in seconds without docking—essential for 12+ hour shifts where a single battery cannot sustain full-day operation. Pre-positioning spare batteries at shift start eliminates downtime and simplifies charging logistics.
- Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0, NFC, USB: Modern connectivity stack enables integration with enterprise Wi-Fi networks, IoT sensors (Bluetooth 5.0 range and throughput improvements), RFID readers via NFC, and docking stations. Real-time inventory sync and mobile payment processing are standard; Bluetooth 5.0 supports extended range for peripheral communication in large warehouses.
- Android 10 with Google Mobile Services (GMS): Long-term support for Google Play Services and enterprise app distribution. GMS certification simplifies app deployment for organizations with high IT staff turnover; proprietary operating systems introduce training and customization overhead.
- Operating range –20°C to 50°C (–4°F to 122°F): Supports cold storage (–20°C) and outdoor summer operations (50°C). Battery capacity and screen response time degrade at temperature extremes, but the device will not lock or fail. For sustained sub-zero operation, consider pre-warming batteries or insulated holsters.
- Pistol-grip ergonomic form factor, 488 g (1.08 lbs) weight: One-handed operation reduces fatigue during extended picking or scanning cycles. Weight is comparable to consumer smartphones; lighter devices (under 400g) often sacrifice screen size or battery capacity, while heavier rugged units (600g+) increase shoulder and wrist strain.
Integration & Deployment
The 943500037 standardizes fleet operations when deployed across multiple warehouses or fulfillment centers. Single SKU reduces spare parts inventory (one charger type, one battery variant, one screen), unified training reduces onboarding time for seasonal or rotating staff, and Datalogic's factory support and certified repair services minimize unplanned downtime. Mobile computer fleets standardized on a single platform simplify procurement cycles and vendor relationships.
The Skorpio X5 integrates with major warehouse automation platforms via standard APIs and ONVIF-compatible protocols. Enterprise WMS and inventory management systems typically expose mobile endpoints that the Android GMS app ecosystem supports natively, reducing custom middleware development.
When to Choose a Different Model
If your operation requires enterprise-grade ruggedization beyond IP65 (e.g., full submersion in cleaning cycles, high-pressure industrial wash-downs), consider a higher IP-rated variant in the Datalogic portfolio. If screen real estate is critical for data-dense applications (e.g., detailed repair manuals, multi-line transaction displays), evaluate larger-screen models in the same family. For operations requiring extreme temperature tolerance (below –20°C or above 50°C sustained), consult Datalogic's extended-temperature variants.
Frequently Asked Questions
Q: Does the Skorpio X5 (943500037) support barcode imaging and scanning?
A: Yes. The device supports 1D and 2D barcode imaging with Green Spot visual feedback confirmation. Barcode scanning is a core use case; the processor and display are optimized for imaging libraries and capture workflows.
Q: Can I expand storage beyond the built-in capacity?
A: Yes. The microSD slot supports external memory cards, allowing staff to load offline databases, application snapshots, or transaction logs for geofenced zones without network access.
Q: Is the battery user-replaceable?
A: Yes. The 6,200 mAh battery is hot-swappable—no tools, no docking required. Pre-charge spares at shift start to avoid downtime during extended operations.
Q: What is the warranty coverage on the Skorpio X5?
A: Refer to Datalogic's warranty documentation or contact an authorized distributor for specific coverage terms and optional extended plans.
Q: Does the 943500037 work with Android enterprise management (MDM) platforms?
A: Yes. Android 10 with GMS supports major MDM solutions (AirWatch, MobileIron, Intune, etc.), enabling central device provisioning, app distribution, and security policy enforcement.
Q: What is the maximum range for Bluetooth 5.0 connectivity on this model?
A: Bluetooth 5.0 range depends on antenna design and RF environment; typical outdoor range is 100+ meters, indoors 20–50 meters depending on obstacles and interference. Consult Datalogic's technical documentation for specific RF specifications.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Skorpio X5 (943500037) is a pragmatic fit for mid-to-large logistics operations where industrial durability and consumer-grade Android responsiveness must coexist. The IP65 rating combined with the 6 ft drop spec ensures survival in high-velocity picking floors where devices routinely encounter moisture, dust, and impact. The Qualcomm SDA660 and 3–4 GB RAM deliver sufficient throughput for multi-threaded warehouse applications without the thermal complexity or cost-per-unit of flagship processors.
Technical Highlights:
- Hot-swappable 6,200 mAh battery: Staff can sustain 12+ hour shifts by swapping depleted units for pre-charged spares at shift start—eliminates downtime waiting for docking and simplifies charging logistics across multi-site operations.
- IP65 dust and water resistance: Tolerates brief wash-down splashes and high-moisture environments (cold storage, beverage facilities). Not rated for submersion; avoid sustained high-pressure spray at seams or cable connectors.
- Bluetooth 5.0 + NFC integration: Supports emerging IoT use cases (sensor pairing, RFID-assisted picking, real-time asset tracking) without requiring additional hardware modules—reduces device proliferation and training complexity.
- Android 10 with GMS: Long-term support lifecycle and seamless integration with Google Play Services ecosystem reduces vendor lock-in and simplifies app distribution for organizations with rotating IT staff.
Deployment Considerations:
- IP65 rating is resistant to splashes, not submersion—confirm your wash-down protocols do not involve dunking or high-pressure direct spray at cable ports or speaker grilles.
- The 4.3-inch WVGA display offers a practical balance between visibility and portability, but data-dense applications (multi-line transaction logs, detailed repair documentation) may feel cramped; test representative workflows before standardization.
- microSD expansion is key for geofenced or offline-heavy operations; pre-stage database snapshots on spares to avoid network latency bottlenecks in cold storage zones.
- Total cost of ownership is minimized through single-SKU standardization—unified spare parts, one charger type, one training curriculum, and Datalogic's factory repair services reduce unplanned downtime across multiple facilities.
Best suited for enterprise pick-pack-ship operations, retail logistics centers, and third-party fulfillment networks where fleet standardization and mean-time-to-repair directly impact labor productivity and customer SLA compliance.
