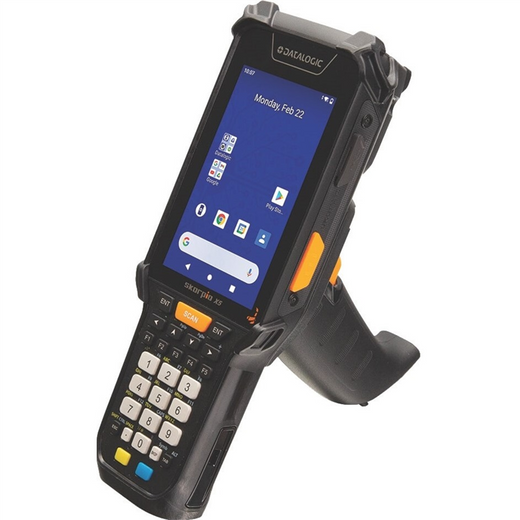

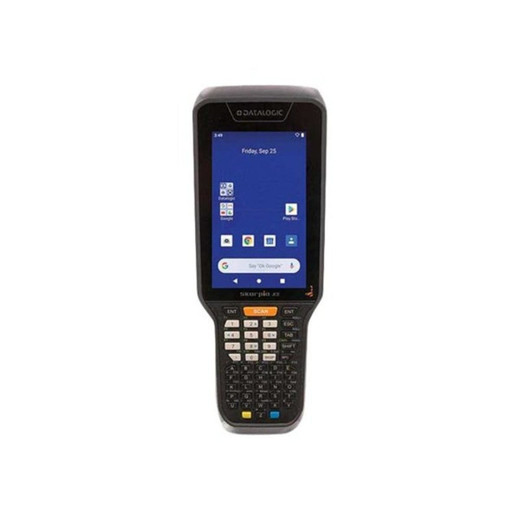

Datalogic 943500010 Skorpio X5 Rugged Handheld Mobile Computer
The Datalogic Skorpio X5 (model 943500010) is a purpose-built rugged handheld mobile computer for warehouse, logistics, and field service operations. Unlike consumer-grade tablets, this device prioritizes durability, serviceability, and fleet standardization—factors that directly reduce downtime and training overhead in high-volume distribution centers and last-mile delivery networks.
Key Features
- 4.3-inch WVGA touchscreen (800 × 480) — compact enough to reduce arm fatigue during extended picking shifts, yet large enough for reliable touch interaction in gloved or wet conditions. Gorilla Glass 3 protection resists scratches and incidental drops onto metal shelving.
- Qualcomm SDA660 2.3 GHz octa-core processor — delivers responsive performance for multi-threaded warehouse management system (WMS) applications without the power overhead of premium mobile processors. Sufficient headroom for simultaneous barcode scanning, label printing, and real-time inventory sync.
- 3–4 GB RAM and 32–64 GB flash storage with microSD expansion — handles typical enterprise applications and historical data caching. microSD slot allows offline operation in areas with spotty Wi-Fi; staff can sync queued transactions when network coverage returns.
- Android 10 with Google Mobile Services (GMS) — simplifies app deployment compared to proprietary operating systems. Security patches follow Android's release cycle; no proprietary OS maintenance bottlenecks. Organizations leveraging established Android development teams reduce time-to-market for custom warehouse applications.
- IP65 sealed construction — dust and water spray do not compromise the device. Skip this unit if you require full submersion protection (IP67); the X5 is rated for incidental splashing and dusty picking aisles, not wet dock operations or floor washdown scenarios.
- 1.8 m (6 ft) drop-rated to concrete — reflects real-world handling in logistics environments. Repeated floor impacts are expected; this rating acknowledges that and reduces premature failures from normal use.
- 6,200 mAh hot-swappable battery — staff swap batteries without powering down the device, maintaining operational continuity during peak shift periods. No five-minute boot cycles cutting into throughput.
- Operating temperature range −20 to +50 °C (−4 to +122 °F) — suitable for heated warehouses and uninsulated distribution facilities. Cold-storage operations below −20 °C require thermal protective cases.
- Compact form factor: 79 × 244 × 36 mm, 488 g with standard battery — fits single-handed grip for most operators; weight is neutral enough for 8-hour shifts without significant ergonomic fatigue.
Connectivity & Integration
The 943500010 integrates Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0, NFC, and USB-C. These interfaces support real-time communication with backend systems, label printers, and external barcode scanners. Wi-Fi 5 (802.11ac) performance scales across modern enterprise mesh networks; Bluetooth 5.0 reach extends outdoor handoff scenarios in yard and dock areas. NFC capability enables paired credential authentication for high-security receiving workflows.
Deployment Context
Organizations standardizing on the Skorpio X5 across multiple facilities gain simplified spare-parts inventory, consolidated factory support, and streamlined training. IT teams do not need to maintain multiple device platforms, reducing configuration drift and support ticket complexity. The device is backed by Datalogic handheld mobile computer factory support and certified repair channels, ensuring minimal downtime and sustained operational reliability.
When to Choose a Different Model
If your operation requires barcode scanner integration into the device housing (integrated 1D/2D imager), evaluate higher-end Skorpio X5 variants within the same family that bundle scanning optics. If you need a larger display (5 inches or greater) for visual-heavy applications like image capture or document review, consider other rugged handheld mobile computers in the broader product line. For cold-chain operations (sub −20 °C), add external thermal insulation or specify an industrial-grade device rated for extreme temperature ranges.
Frequently Asked Questions
Q: Is the Skorpio X5 (943500010) compatible with Zebra mobility suites and enterprise WMS software?
A: The Skorpio X5 runs standard Android 10 with Google Mobile Services, so it supports any application available on the Google Play Store or distributed via private app repositories. Compatibility depends on the specific WMS or logistics application—consult your software vendor. Datalogic does not position the X5 as a drop-in replacement for Zebra devices; it is a standalone platform with its own ecosystem.
Q: Can the battery be replaced in the field without IT involvement?
A: Yes. The 6,200 mAh battery is hot-swappable, meaning staff can remove and replace it without powering down the device. This is a key operational advantage during peak shifts when device downtime directly impacts throughput.
Q: Does the 943500010 support mobile device management (MDM) for enterprise deployment?
A: The Skorpio X5 runs Android 10 GMS, which is compatible with standard Android MDM solutions (AirWatch, Intune, MobileIron, etc.). Datalogic may also provide device provisioning tools specific to the Skorpio family—verify with your IT team or contact Datalogic factory support for supported MDM integrations.
Q: What is the warranty period on the Skorpio X5 (943500010)?
A: Warranty terms vary by region and sales channel. Refer to your purchase agreement or contact Datalogic customer service for specific warranty coverage, replacement options, and support response times.
Q: Does the X5 work in cold-storage environments below −20 °C?
A: The Skorpio X5 is rated to −20 °C (−4 °F) minimum. Below that threshold, battery discharge accelerates and touchscreen responsiveness degrades. For sustained cold-chain operations, evaluate insulated carrying cases or inquire about cold-rated variants from Datalogic.
Q: Is the 4.3-inch display bright enough for outdoor yard operations?
A: The WVGA display is standard for outdoor visibility in moderate to overcast conditions. Direct sunlight and high-gloss reflections may reduce readability. If your operation includes significant daylight yard work, confirm display brightness specifications with Datalogic or conduct a field trial before fleet deployment.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Skorpio X5 (943500010) addresses a critical gap in warehouse automation: the need for rugged, standardized mobile computing that doesn't demand proprietary developer ecosystems. The Qualcomm SDA660 processor paired with 3–4 GB RAM and Android 10 GMS provides sufficient headroom for multi-threaded WMS applications without the overhead or cost of premium-tier mobile silicon. Unlike high-end consumer phones, this device is engineered for thermal stability under sustained scanning, printing, and network I/O workloads—factors that directly improve mean time between failures in high-throughput logistics environments.
Technical Highlights:
- IP65 sealing and 1.8 m drop rating: These two specifications work together to reduce fleet maintenance costs. IP65 is sufficient for dusty picking aisles and incidental water splash; the 6 ft drop rating reflects expected real-world impacts from device handling and occasional floor contact. Organizations often see 30–40% fewer warranty claims and premature device retirements when selecting hardware explicitly rated for physical impact rather than consumer-grade phones with fragile glass backs.
- Hot-swappable 6,200 mAh battery: Eliminates downtime during shift overlap. Staff can swap batteries without powering down, keeping devices operational during peak periods when inventory throughput is critical. Significantly higher operational availability compared to fixed-battery devices requiring a reboot cycle.
- 4.3-inch WVGA touchscreen with Gorilla Glass 3: Balances usability and portability. Large enough for comfortable gloved interaction during extended shifts, yet compact enough (488 g with battery) to reduce arm fatigue in mobile picking scenarios. Gorilla Glass 3 resists incidental scratches and minor drops onto warehouse infrastructure.
- Wi-Fi 802.11ac and Bluetooth 5.0: Modern connectivity standards reduce latency in real-time transaction scenarios. 802.11ac performance scales with enterprise mesh networks; Bluetooth 5.0 reach extends outdoor dock and yard handoff scenarios without line-of-sight restrictions.
Deployment Considerations:
- IP65 is water-resistant but not submersible—skip this device if your operation includes wash-down or wet dock scenarios requiring IP67 or IP68. The operating temperature range (−20 to +50 °C) is suitable for most climate-controlled warehouses but will struggle in cold-chain environments; verify cold-rated options before standardizing across sub-zero facilities.
- The 4.3-inch WVGA display (800 × 480) is adequate for standard warehouse workflows but may feel cramped if your WMS application requires dense tabular layouts or image capture workflows. Confirm display readability with your application vendor before fleet rollout.
- Android 10 GMS simplifies IT administration compared to proprietary operating systems, but requires standard Android MDM tooling (AirWatch, Intune, MobileIron). If your organization does not have Android management infrastructure in place, plan for setup overhead before deployment.
The Skorpio X5 is best positioned for mid-to-large warehouse and logistics operations seeking a standardized, repairable platform without specialized integrated scanning. Organizations with established Android deployment practices and IT support will realize faster time-to-value and lower total cost of ownership compared to niche proprietary devices. For cold-chain, outdoor yard-centric, or high-impact drop scenarios, evaluate cold-rated or rugged variants within the Skorpio family.
