Ubiquiti U6-IW vs NETGEAR WAX210-100NAS: Specification Comparison
Both the Ubiquiti U6-IW and the NETGEAR WAX210-100NAS are dual-band Wi-Fi 6 (802.11ax) access points aimed at business installations where ceiling or wall placement replaces legacy consumer gear. The comparison covers RF throughput and client capacity, power delivery and physical integration, and management architecture — the three axes that typically drive enterprise and SMB Wi-Fi 6 AP selection between these two units.
In This Guide
- Which AP delivers more throughput and can serve more simultaneous clients?
- How do the two units differ in PoE requirements, physical form factor, and built-in switching?
- How do the management platforms, operating environment ratings, and compliance postures compare?
- Which should you choose: the U6-IW or the WAX210-100NAS?
- Side-by-Side Specs
- FAQ
Which AP delivers more throughput and can serve more simultaneous clients?
The U6-IW is specified at 4.8 Gbps on 5 GHz alone, with a separate 2.4 GHz radio rated at 573.5 Mbps, and Ubiquiti lists support for 250+ concurrent clients. Channel bandwidth options span HT 20/40, VHT 20/40/80/160, and HE 20/40/80/160 MHz, giving the radio stack full 160 MHz capability under 802.11ax.
The WAX210-100NAS is rated at 1.8 Gbps aggregate across both bands combined (AX1800 class). No per-band breakdown or concurrent-client ceiling is provided in the supplied specifications. Channel bandwidth options are not listed in the provided spec data.
On raw specified throughput, the U6-IW's 5 GHz radio alone exceeds the WAX210-100NAS's total aggregate rating by more than 2.6x. Buyers sizing for high-density environments or bandwidth-heavy applications will find a materially larger headroom figure on the Ubiquiti side; the WAX210-100NAS's headroom in those scenarios is not spec-documented.
How do the two units differ in PoE requirements, physical form factor, and built-in switching?
The U6-IW requires PoE+ (IEEE 802.3at) at 13 W excluding its own PoE output port. Its in-wall form factor (139.7 × 96 × 31.2 mm, 460 g) is designed to occupy a standard wall cavity and ships with a wall-mount bracket. Critically, the U6-IW integrates a 4-port Gigabit Ethernet switch with one PoE+ output port, allowing it to consolidate the wall AP and a small desk switch into a single gang box.

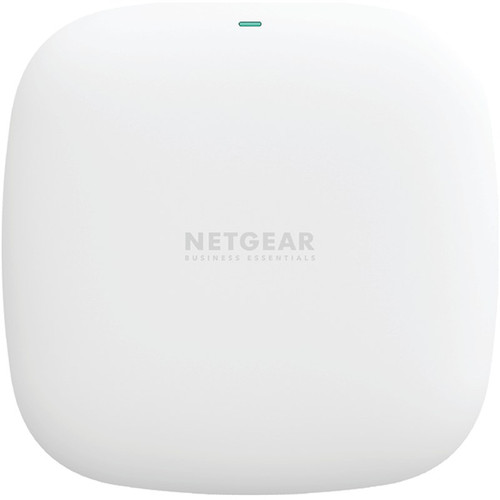

The WAX210-100NAS accepts either 802.3af PoE (lower wattage budget than 802.3at) from a PoE switch or a 12 V/1.5 A (30 W) power adapter included only with the WAX210PA bundle — not the WAX210-100NAS SKU reviewed here. Its 4.5 × 4.5 × 1.2-inch footprint at 0.48 lb supports both wall and ceiling mounting. It has no integrated switching; the single uplink port is its only Ethernet connection.
The U6-IW's built-in 4-port switch with PoE output is a meaningful infrastructure advantage in deployments replacing a wall plate and switch simultaneously. However, it demands a PoE+ source port; the WAX210-100NAS will operate from the more common and lower-cost 802.3af infrastructure, making it easier to drop into existing PoE switch fabrics without port-budget concerns.
How do the management platforms, operating environment ratings, and compliance postures compare?
The U6-IW is managed through Ubiquiti's UniFi ecosystem, supporting both UniFi Cloud and on-premises controller deployments. It carries NDAA compliance (relevant for federal, government, and regulated enterprise bids) and holds CE, FCC, IC, SRRC, and Anatel certifications. Its operating temperature range is -30 to 60 °C (-22 to 140 °F), making it suitable for unconditioned spaces, utility rooms, or outdoor-adjacent installations.
The WAX210-100NAS is managed via a local Web GUI (local portal); no cloud management platform or centralized controller option is specified in the provided data. NDAA compliance status is not provided in the supplied specifications. Its operating temperature is 0 to 40 °C (32 to 104 °F), a narrower range suited to conditioned interior environments only. Storage temperature is listed as -40 to 70 °C.
For multi-site or large single-site deployments, the UniFi controller's centralized visibility (cloud or on-premises) offers operational advantages that a standalone Web GUI cannot replicate at scale. NDAA compliance on the U6-IW opens government and regulated-sector bids that the WAX210-100NAS cannot address based on available spec data.
Which should you choose: the U6-IW or the WAX210-100NAS?
Our take: The U6-IW is the stronger choice when throughput headroom, integrated switching, NDAA compliance, and centralized management are decision criteria. Its 5 GHz radio alone is specified at 4.8 Gbps versus the WAX210-100NAS's 1.8 Gbps aggregate — a 2.6x+ delta — and its 250+ concurrent-client figure has no equivalent published for the NETGEAR unit. The integrated 4-port GbE switch with PoE+ output on the U6-IW eliminates a separate wall switch, while the WAX210-100NAS provides a single uplink only. The U6-IW's -30 to 60 °C operating range versus the WAX210-100NAS's 0 to 40 °C limit matters in non-conditioned spaces. The WAX210-100NAS is a simpler fit where existing 802.3af PoE infrastructure is in place, no controller is desired, and the installation is a small, conditioned interior space with moderate client density — its lower PoE power draw and wall-or-ceiling flexibility make it easier to add without infrastructure changes.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Ubiquiti U6-IW | NETGEAR WAX210-100NAS |
|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) AX1800 |
| Max Aggregate Throughput | 4.8 Gbps (5 GHz) + 573.5 Mbps (2.4 GHz) | 1.8 Gbps (both bands combined) |
| 5 GHz Max Data Rate | 4.8 Gbps | — |
| Channel Bandwidth | HE 20/40/80/160 MHz (also HT/VHT) | — |
| Concurrent Clients | 250+ | — |
| PoE Input Standard | PoE+ (802.3at) | PoE (802.3af) |
| Power Consumption | 13 W (excl. PoE output) | 30 W (adapter) / 802.3af draw |
| Integrated Switch Ports | 4x GbE (1x PoE+ output) | None |
| Uplink Ports | 1x GbE RJ-45 | 1x 100/1000 Mbps RJ-45 |
| Form Factor | In-Wall | Wall / Ceiling |
| Dimensions | 139.7 × 96 × 31.2 mm | 4.5 × 4.5 × 1.2 in (114.3 × 114.3 × 30.5 mm) |
| Weight | 460 g (1 lb) | 0.48 lb (0.219 kg) |
| Operating Temperature | -30 to 60 °C | 0 to 40 °C |
| Management Platform | UniFi Cloud or On-Premises Controller | Web GUI (local portal) |
| NDAA Compliant | Yes | — |
| Certifications | CE, FCC, IC, SRRC, Anatel | — |
Frequently Asked Questions
Which should you choose: the U6-IW or the WAX210-100NAS?
The U6-IW is the stronger choice when throughput headroom, integrated switching, NDAA compliance, and centralized management are decision criteria. Its 5 GHz radio alone is specified at 4.8 Gbps versus the WAX210-100NAS's 1.8 Gbps aggregate — a 2.6x+ delta — and its 250+ concurrent-client figure has no equivalent published for the NETGEAR unit. The integrated 4-port GbE switch with PoE+ output on the U6-IW eliminates a separate wall switch, while the WAX210-100NAS provides a single uplink only. The U6-IW's -30 to 60 °C operating range versus the WAX210-100NAS's 0 to 40 °C limit matters in non-conditioned spaces. The WAX210-100NAS is a simpler fit where existing 802.3af PoE infrastructure is in place, no controller is desired, and the installation is a small, conditioned interior space with moderate client density — its lower PoE power draw and wall-or-ceiling flexibility make it easier to add without infrastructure changes.
Can I use the U6-IW or WAX210-100NAS with my existing 802.3af PoE switches?
The WAX210-100NAS accepts 802.3af (PoE) power, so it will operate from any standard 802.3af port. The U6-IW requires 802.3at (PoE+) — a higher wattage standard. If your existing switches only supply 802.3af, you would need to upgrade those ports or add a PoE+ injector before deploying the U6-IW.
Is the U6-IW or WAX210-100NAS better for a multi-AP deployment managed from one console?
The U6-IW integrates with the UniFi controller platform, which supports both cloud and on-premises centralized management across multiple sites and APs. The WAX210-100NAS is documented as managed via a local Web GUI only — no centralized multi-AP controller option is listed in the provided specifications. For multi-AP or multi-site management from a single pane of glass, the U6-IW and UniFi ecosystem are the specified option here.
Which unit is compliant for government or federally funded projects requiring NDAA compliance?
The U6-IW is specified as NDAA compliant. NDAA compliance status is not provided in the supplied specifications for the WAX210-100NAS. Buyers with federal, state, or regulated-sector requirements that mandate NDAA compliance should verify the WAX210-100NAS's status independently before specifying it.
