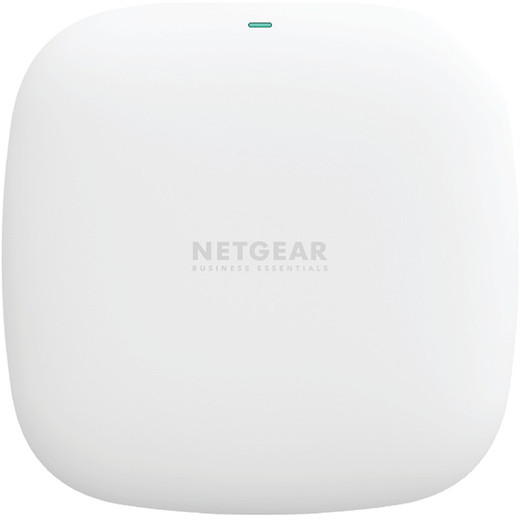

NETGEAR WAX210-100NAS 1PT AX1800 WiFi 6 Access Point

We've deployed dozens of compact access points in small-office and retail environments, and the WAX210 occupies a practical niche: it's genuinely single-port PoE, lightweight enough for drop-ceiling installation without additional bracing, and requires zero external power infrastructure. The 1.8 Gbps aggregate throughput is honest marketing — you won't see sustained gigabit line rate in production, but 600–800 Mbps across mixed 2.4/5 GHz clients is repeatable. What differentiates it from a typical consumer router is the lack of integrated switching or DHCP services; you're buying a pure access point that lives on your subnet and delegates routing/gateway duties to upstream equipment. In our experience, that design constraint is actually an advantage in small-office networks where you've already got a managed switch or gateway in place. The PoE-only power model eliminates a whole category of installation friction: no AC drop, no outlet negotiation with facilities, just a single Ethernet cable to a PoE port. We've placed these in building lobbies, conference room ceilings, and retail back-office areas where power is scarce or running AC would trigger electrical work change orders.

Technical Highlights:

• WiFi 6 (802.11ax) Dual-Band 2×2 MIMO: 2.4 GHz band contributes 600 Mbps (wider coverage, penetration through walls); 5 GHz band contributes 1.2 Gbps (higher throughput on line-of-sight clients). The 2×2 spatial streams are appropriate for small spaces; larger multi-floor deployments may need additional access points for uniform signal strength. Real-world sustained throughput to clients is typically 50–70% of advertised rate.
• PoE 802.3af (30W): Standard PoE injection — works with any managed switch supporting 802.3af per-port power budgeting. Most modern gigabit PoE switches allocate 30W per port by default; older or budget PoE switches may cap at 15–20W, which is sufficient if the access point operates with default RF power. Confirm PoE port power allocation in your switch specs before installation to avoid brown-out events.
• Single Gigabit Ethernet Port with Auto Uplink: The RJ-45 port auto-detects straight vs. crossover cables (Auto MDI-X), eliminating a common field error. Gigabit backhaul handles typical small-office traffic without saturation; if your uplink switch is already oversubscribed or you're running 4K video streaming, monitor switch port utilization to rule out backhaul congestion.
• WPA3 + WPA2 Dual-Mode Encryption: Newer clients (2018+) negotiate WPA3; older devices fall back to WPA2 automatically. No manual encryption downgrade required. WPA3 provides individualized data encryption (OWE) and brute-force resistance — meaningful in open guest networks or high-density deployments with untrusted clients.
• Local Web GUI, No Cloud Dependency: Configuration lives on the access point itself (DHCP address assignment, SSID/PSK setup, channel selection). No vendor account required, no cloud portal outages, no telemetry. Ideal for networks with restricted outbound internet or security policies that forbid cloud management.
• Compact Form Factor (4.5″ × 4.5″ × 1.2″, 0.48 lb): Designed for ceiling or wall flush-mount without visible brackets or cable runs. We've installed these directly above drop-ceiling tiles and into wall cavities where traditional rectangular access points don't fit. The low profile also reduces visual clutter in customer-facing retail or hospitality spaces.

Deployment Considerations:

• Temperature rating is 0–40°C (operating) — this unit is NOT suitable for unheated warehouses, outdoor cages, parking structures, or any space that drops below freezing or exceeds 40°C regularly. If your site violates this range, you'll need an industrial-grade access point with extended temperature tolerance.
• PoE power path must be confirmed before installation: verify that your target switch port is allocated at least 30W PoE budget and that the cable run does not exceed 328 feet (100m) without attenuation risk. Budget 5–10W margin to avoid edge-case brown-outs under peak RF load.
• Position the access point centrally in your coverage area and elevated (ceiling or upper-wall mount) for optimal dual-band propagation. The 2.4 GHz band penetrates walls and obstacles better; the 5 GHz band requires a clearer line-of-sight. If your deployment space has metal studs, heavy concrete, or lots of large furniture, consider overlapping two units to fill dead zones.
• The single Ethernet port is also the PoE injection point — you cannot daisy-chain additional PoE devices downstream. If you need to power additional equipment (IP camera, additional access point), use a separate PoE injector or switch port for that device.
• Default SSID and PSK credentials are printed on the unit label. Change both immediately upon activation to prevent unauthorized access. There is no RADIUS or 802.1X integration — enterprise authentication happens at the PSK or MAC-ACL level, not certificate-based.
• WiFi 6 clients benefit from OFDMA and spatial reuse features; older 802.11n/ac clients do not. If your user base is primarily pre-2020 devices, the WiFi 6 advantage diminishes — a lower-cost AX1200 or AC1200 may be cost-neutral in that context.

The WAX210 is a solid choice for small offices, retail shops, dental/medical practices, and hospitality venues where a single access point meets capacity and an existing PoE infrastructure exists. It's not a mesh system, not a managed enterprise controller, and not a replacement for full-stack wireless management — but for straightforward, low-maintenance WiFi 6 distribution in a compact package, it delivers. Explore the full NETGEAR catalog for complementary PoE switches, additional access points, and gateway solutions.
