Hanwha XNV-6083R vs i-PRO X66300-Z4LS: Specification Comparison

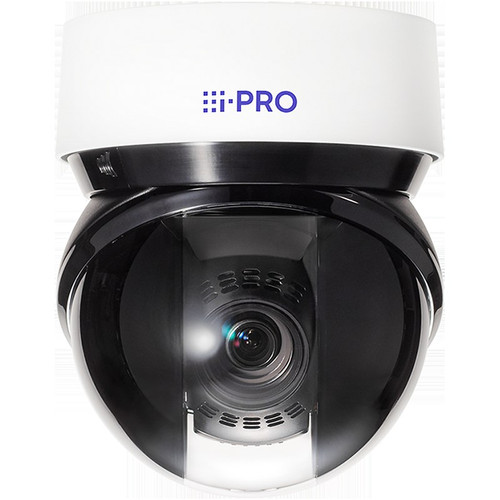

Both the Hanwha XNV-6083R and the i-PRO WV-X66300-Z4LS are 2MP outdoor PTZ dome cameras intended for perimeter and wide-area surveillance. Both deliver 1920×1080 resolution, 60 fps, built-in IR, PoE power, H.265/H.264 compression, and ONVIF compatibility. The comparison below examines where the two models diverge across imaging performance, environmental and installation requirements, and VMS/analytics integration—allowing integrators and IT buyers to match each unit to the deployment conditions it handles best.
In This Guide
How do the imaging specs compare?
Both cameras use an approximately 1/2.8-inch CMOS sensor at 2MP (1920×1080) and top out at 60 fps. The XNV-6083R carries a 32× optical zoom lens (4.44–142.6 mm, F1.6–F4.4) with a supplemental 32× digital zoom for a stated total of 1024×. The i-PRO X66300-Z4LS steps up to 40× optical zoom (4.25–170 mm, F1.6–F4.95) and adds an extra-zoom mode reaching 60× at 1280×720 resolution. At the tele end, i-PRO's DORI 'Detect' range is 2,199.9 m vs. 1,921.3 m for the Hanwha, a difference of roughly 278 m, driven by the longer focal reach.
In low light, the Hanwha specifies 0.05 Lux color / 0.005 Lux B&W, while the i-PRO specifies 0.006 Lux B&W with IR LED active—both figures are in the same order of magnitude but the Hanwha's 0.005 Lux B&W is marginally lower. The more meaningful night-vision differentiator is IR range: the XNV-6083R spec lists an IR distance of 1.5 m (as published in the provided spec sheet), while the X66300-Z4LS specifies an IR LED range of 350 m (30 IRE) / 250 m (50 IRE)—a decisive advantage for long-range darkness coverage. WDR is 120 dB on the Hanwha (SSDR) versus a stated maximum of 144 dB on the i-PRO (Super Dynamic level 31), giving the i-PRO a higher-headroom dynamic range figure. Both support digital image stabilization via built-in gyro sensor.
What about installation and environment?
The XNV-6083R is rated IP67 and carries no published IK impact rating in the provided specifications. The X66300-Z4LS is rated IP66 and NEMA 4X, and adds IK10 impact resistance (IEC 62262) plus a wind resistance spec of up to 40 m/s (approx. 89 mph). The Hanwha's operating temperature range is −10 °C to +55 °C; the i-PRO extends that substantially to −50 °C to +60 °C, making it suitable for extreme cold environments such as northern outdoor installations.
Power draw is a significant installation consideration. The XNV-6083R draws a maximum of 14.5 W via PoE+ (IEEE 802.3at, Class 4), compatible with standard PoE+ switches. The X66300-Z4LS requires PoE++ (IEEE 802.3bt) at up to 45.9 W (Class 6), necessitating a PoE++ capable switch or midspan injector—an infrastructure cost that must be factored into the project budget. The Hanwha body is plastic; the i-PRO housing is aluminum die cast with a polycarbonate dome. The XNV-6083R weighs 1,700 g (3.75 lb); the X66300-Z4LS weighs approximately 3,000 g (6.6 lb). Both ship in white/dome form factor. The Hanwha publishes an extensive accessory mount ecosystem in its spec sheet; no equivalent accessory list was provided in the i-PRO spec data.
Which fits your VMS and analytics better?
Both cameras support ONVIF Profile S, G, and T. The i-PRO X66300-Z4LS additionally lists ONVIF Profile M. The Hanwha XNV-6083R integrates via SUNAPI (HTTP API) and the Wisenet Open Platform in addition to ONVIF. The i-PRO supports MQTT and NTCIP protocol, while the Hanwha also lists NTCIP1205; both support SNMPv1/v2c/v3, HTTPS, SRTP, and 802.1X (EAP) authentication.
On-board analytics differ in depth. The Hanwha provides motion detection, directional detection, virtual line crossing, tampering alerts, and audio detection. The i-PRO adds AI-classified analytics: AI Video Motion, Face Detection, People Detection, and Vehicle Detection, plus AI Sound Classification covering gunshot, yell, vehicle horn, and glass break—a meaningfully broader edge-AI feature set. Edge storage on the Hanwha tops out at microSD/SDHC/SDXC up to 256 GB (1 slot); the i-PRO supports microSDXC up to 512 GB. Audio input on the Hanwha is selectable mic/line-in; the i-PRO uses a 3.5 mm stereo jack for both input and output, with G.726, G.711, and AAC-LC compression. The XNV-6083R specifies up to 20 unicast users; the i-PRO specifies up to 14 simultaneous users. The Hanwha carries a 3-year warranty; the i-PRO carries a 5-year warranty.
Which should you choose: the XNV-6083R or the X66300-Z4LS?
Our take: The XNV-6083R is the stronger choice when PoE+ infrastructure is already in place, budget is constrained, or the deployment environment is a moderate-climate site not requiring extreme cold tolerance. The i-PRO X66300-Z4LS is the stronger choice for long-range IR detection (350 m vs. 1.5 m as spec'd), broader optical zoom reach (40× vs. 32×), and AI-classified edge analytics (face, people, vehicle, AI sound). The i-PRO also extends operating temperature to −50 °C vs. the Hanwha's −10 °C and achieves 144 dB Super Dynamic WDR vs. 120 dB, with IK10 vandal resistance and NEMA 4X sealing. However, the i-PRO demands PoE++ (45.9 W, Class 6) vs. the Hanwha's PoE+ (14.5 W, Class 4), which may require switch upgrades. Choose the XNV-6083R for cost-sensitive standard-climate installs; choose the X66300-Z4LS where long-range IR, AI analytics, or extreme environments are requirements.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Hanwha XNV-6083R | i-PRO X66300-Z4LS |
|---|---|---|
| Resolution | 2MP (1920×1080) | 2MP (1920×1080) |
| Image Sensor | 1/2.8" CMOS | Approx. 1/2.8" CMOS |
| Optical Zoom / Focal Length | 32× / 4.44–142.6 mm | 40× (60× extra zoom) / 4.25–170 mm |
| Max Aperture (Wide / Tele) | F1.6 (Wide) / F4.4 (Tele) | F1.6 (Wide) / F4.95 (Tele) |
| Min Illumination (B&W) | 0.005 Lux | 0.006 Lux (IR LED) |
| IR Range | 1.5 m (as spec'd) | 350 m (30 IRE) / 250 m (50 IRE) |
| Wide Dynamic Range | 120 dB (SSDR) | Max 144 dB (Super Dynamic level 31) |
| Max Frame Rate | 60 fps | 60 fps |
| Video Compression | H.265 / H.264 / MJPEG | H.265 / H.264 / JPEG |
| IP Rating | IP67 | IP66 / NEMA 4X |
| IK / Impact Rating | — (not specified) | IK10 (IEC 62262) |
| Operating Temperature | −10 °C to +55 °C | −50 °C to +60 °C |
| Power Input / PoE Class | PoE+ (802.3at) / Class 4 / 14.5 W max | PoE++ (802.3bt) / Class 6 / 45.9 W |
| Edge Storage | microSD/SDHC/SDXC up to 256 GB | microSDXC up to 512 GB |
| ONVIF Profiles | S, G, T | G, M, S, T |
| AI / Edge Analytics | Motion, directional, line crossing, tampering, audio detection | AI VMD, Face, People, Vehicle detection; AI Sound Classification |
| Audio | Selectable mic/line-in; line out 1 Vrms | 3.5 mm stereo jack in/out; G.726, G.711, AAC-LC |
| Weight | 1,700 g (3.75 lb) | Approx. 3,000 g (6.6 lb) |
| Warranty | 3 years | 5 years |
Frequently Asked Questions
Which should you choose: the XNV-6083R or the X66300-Z4LS?
The XNV-6083R is the stronger choice when PoE+ infrastructure is already in place, budget is constrained, or the deployment environment is a moderate-climate site not requiring extreme cold tolerance. The i-PRO X66300-Z4LS is the stronger choice for long-range IR detection (350 m vs. 1.5 m as spec'd), broader optical zoom reach (40× vs. 32×), and AI-classified edge analytics (face, people, vehicle, AI sound). The i-PRO also extends operating temperature to −50 °C vs. the Hanwha's −10 °C and achieves 144 dB Super Dynamic WDR vs. 120 dB, with IK10 vandal resistance and NEMA 4X sealing. However, the i-PRO demands PoE++ (45.9 W, Class 6) vs. the Hanwha's PoE+ (14.5 W, Class 4), which may require switch upgrades. Choose the XNV-6083R for cost-sensitive standard-climate installs; choose the X66300-Z4LS where long-range IR, AI analytics, or extreme environments are requirements.
Is the XNV-6083R or X66300-Z4LS better for low-light and night-vision performance?
The i-PRO X66300-Z4LS has a substantially longer specified IR illumination range—350 m at 30 IRE / 250 m at 50 IRE—compared to the 1.5 m IR distance published in the Hanwha XNV-6083R spec sheet. In B&W minimum illumination both are close (0.005 Lux for the Hanwha, 0.006 Lux for the i-PRO), so for long-range nighttime detection the i-PRO's IR distance is the deciding factor.
Can I power the X66300-Z4LS from the same PoE switch I use for the XNV-6083R?
Not necessarily. The XNV-6083R requires PoE+ (IEEE 802.3at, Class 4, up to 14.5 W), which is supported by most current enterprise PoE+ switches. The i-PRO X66300-Z4LS requires PoE++ (IEEE 802.3bt, Class 6, up to 45.9 W). If your switch only supports PoE or PoE+, you will need to upgrade to a PoE++ capable switch or add a compatible midspan injector before deploying the i-PRO.
Which camera offers better built-in analytics for AI-based detection?
The i-PRO X66300-Z4LS provides a broader AI analytics suite per its specifications: AI Video Motion Detection, Face Detection, People Detection, Vehicle Detection, and AI Sound Classification (gunshot, yell, vehicle horn, glass break). The Hanwha XNV-6083R specifies motion detection, directional detection, virtual line crossing, tampering alerts, and audio detection, but does not list AI-classified object or sound categories in its provided specifications.
