Geovision FD34100-001U vs Geovision VD3400-001U: Specification Comparison
Both the Geovision FD34100-001U and VD3400-001U are 3MP fixed dome IP cameras from the same manufacturer, occupying the same resolution class and form factor. This comparison is intended for installers and IT buyers evaluating which unit better fits a specific deployment scenario — motorized lens flexibility and lobby-optimized imaging on one side, versus hardened vandal-proof construction and outdoor-rated ingress protection on the other. The specs provided form the basis of every claim below; where data is absent for a model, that gap is noted explicitly.
In This Guide
How do the imaging specs compare?
Both cameras share a 3MP resolution and WDR Pro, placing them on equal footing for dynamic-range handling in mixed-light environments. Night-vision capability is specified as IR on both units. The FD34100-001U carries a 3–9 mm motorized lens, enabling remote or post-installation zoom and focus adjustment without physically touching the optic. The VD3400-001U uses a 3–9 mm varifocal lens covering the same focal range, but varifocal adjustment is manual rather than motorized — requiring physical access to the camera during setup or reconfiguration.
The VD3400-001U spec adds a Day/Night designation alongside IR for its low-light mode, suggesting a mechanical or electronic IR-cut filter for true color daytime imaging transitioning to monochrome at night. The FD34100-001U lists IR only — no Day/Night qualifier appears in its provided specs. Minimum illumination figures, sensor size, maximum frame rate, and video compression codec are not provided for either model in the supplied specifications.
What about installation and environment?

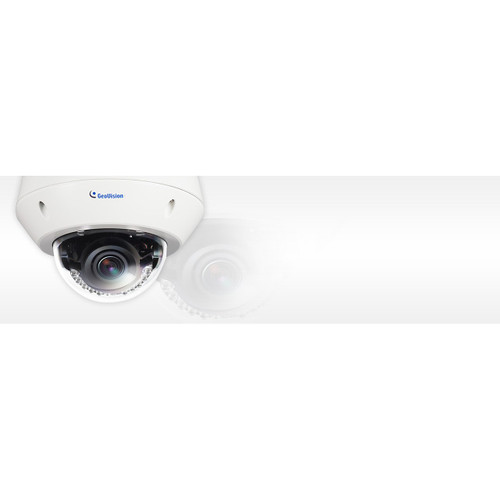

The VD3400-001U carries an IP67 ingress-protection rating, confirming full dust exclusion and protection against temporary immersion — making it suitable for outdoor or washdown-exposed locations. The FD34100-001U has no IP rating listed in the provided specs; buyers should not assume outdoor suitability without confirming this with the manufacturer datasheet. Neither unit lists an IK impact rating explicitly, though the VD3400-001U's product type description — 'Vandal Proof' — indicates mechanical impact resistance; the exact IK rating is not confirmed in the provided data.
Both cameras support PoE power delivery, simplifying single-cable runs on IEEE 802.3af/at infrastructure. The FD34100-001U additionally lists DC12V and AC24V as compatible power inputs, offering flexibility where PoE is unavailable. The VD3400-001U spec lists PoE only. Both units support ceiling and wall mounting in dome form factor. Operating temperature range is not specified for either model in the provided data.
Which fits your VMS and analytics better?
Both cameras are ONVIF-compliant, ensuring baseline interoperability with any ONVIF-conformant VMS or NVR platform. Edge analytics, audio input/output, and on-board SD card storage are not listed in the provided specifications for either model. Buyers requiring these features should consult the manufacturer datasheets directly. The FD34100-001U is categorized under cable category 'MPCam' while the VD3400-001U falls under 'IPCAM' — both are standard IP camera classifications that do not impose integration constraints beyond ONVIF conformance.
Which should you choose: the FD34100-001U or the VD3400-001U?
Our take: The FD34100-001U is the stronger choice when deployment priorities center on lens flexibility and power-source diversity in controlled indoor environments. Its motorized 3–9 mm lens allows remote focal adjustment post-installation — a meaningful advantage in lobbies or access points where revisiting the camera physically is disruptive. It also adds DC12V and AC24V power options beyond PoE alone. The VD3400-001U is the correct selection when the installation demands outdoor or moisture-exposed mounting: its IP67 rating and vandal-proof housing address environmental and deliberate-impact threats that the FD34100-001U's unspecified IP status cannot confirm. Both cameras match on resolution (3MP), WDR Pro, IR night vision, ONVIF compliance, and PoE support. Choose the FD34100-001U for motorized convenience indoors; choose the VD3400-001U for hardened outdoor perimeter or high-risk zone deployments.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Geovision FD34100-001U | Geovision VD3400-001U |
|---|---|---|
| Resolution | 3 MP | 3 MP |
| Form Factor | Dome | Dome |
| Lens / Focal Length | 3–9 mm motorized | 3–9 mm varifocal |
| WDR | WDR Pro | WDR Pro |
| Night Vision / Low Light | IR | IR; Day/Night |
| IP Rating | — | IP67 |
| Vandal / Impact Rating | — | Vandal Proof (IK rating not specified) |
| ONVIF | Yes | Yes (ONVIF compatible) |
| Power Input | PoE; DC12V; AC24V | PoE |
| PoE | Yes | Yes |
| Mount Type | Ceiling / Wall | Ceiling; Wall |
| Connectivity | Ethernet | PoE (Ethernet) |
| Recommended Environment | Lobby / indoor | High-risk / outdoor |
Frequently Asked Questions
Which should you choose: the FD34100-001U or the VD3400-001U?
The FD34100-001U is the stronger choice when deployment priorities center on lens flexibility and power-source diversity in controlled indoor environments. Its motorized 3–9 mm lens allows remote focal adjustment post-installation — a meaningful advantage in lobbies or access points where revisiting the camera physically is disruptive. It also adds DC12V and AC24V power options beyond PoE alone. The VD3400-001U is the correct selection when the installation demands outdoor or moisture-exposed mounting: its IP67 rating and vandal-proof housing address environmental and deliberate-impact threats that the FD34100-001U's unspecified IP status cannot confirm. Both cameras match on resolution (3MP), WDR Pro, IR night vision, ONVIF compliance, and PoE support. Choose the FD34100-001U for motorized convenience indoors; choose the VD3400-001U for hardened outdoor perimeter or high-risk zone deployments.
Is the FD34100-001U or VD3400-001U better for low light?
Both cameras list IR night vision and WDR Pro, so their low-light capabilities are comparable based on provided specs. The VD3400-001U additionally specifies a Day/Night mode — indicating a likely IR-cut filter for true-color daytime imaging — which the FD34100-001U does not list. Minimum illumination figures are absent from the provided data for both models; consult the manufacturer datasheets for lux ratings before making a final low-light determination.
Can I mount the VD3400-001U outdoors?
Yes — the VD3400-001U carries an IP67 rating, confirming protection against dust ingress and temporary water immersion, and its vandal-proof housing adds mechanical impact resistance. The FD34100-001U does not list any IP rating in the provided specifications, so outdoor suitability for that model cannot be confirmed from the available data alone.
Does the motorized lens on the FD34100-001U mean I can adjust it remotely after installation?
The FD34100-001U specifies a 3–9 mm motorized lens, which typically allows remote zoom and focus control via the camera's network interface or VMS — eliminating the need for physical access during coverage adjustments. The VD3400-001U uses a 3–9 mm varifocal lens covering the same focal range, but varifocal lenses require manual adjustment at the camera. Confirm remote-adjustment capability with the manufacturer datasheet, as specific motor-control protocol support is not detailed in the provided specs.
