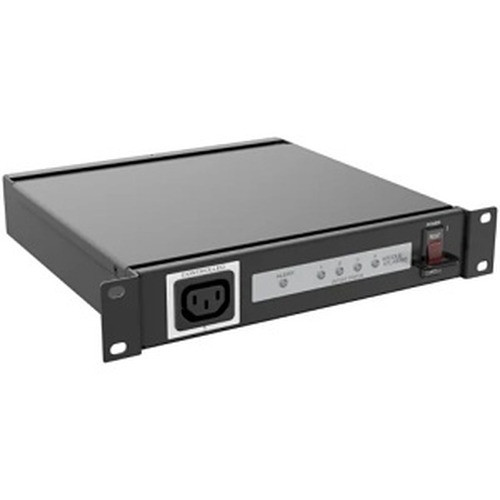

Middle Atlantic Compact Premium+ PDU with Racklink RLNK-P420 4 Outlet 20A 2-STAGE Surge

Middle Atlantic RLNK-P420 Compact Premium+ PDU with RackLink

Overview

The Middle Atlantic RLNK-P420 is a 4-outlet, 20-amp intelligent rack power distribution unit built for integrators who need remote power management in tight rack spaces without sacrificing surge protection quality. With a LAN output port for RackLink network control and a 2-stage surge protection design, the RLNK-P420 sits at the intersection of power reliability and remote management — a pairing that matters most in unmanned equipment rooms, remote surveillance head-end racks, and distributed AV/security installations where a site visit to cycle power costs real money.

Rated for 80–140V AC input, the RLNK-P420 covers standard North American power environments, including sites with marginal or fluctuating utility voltage. Its NEMA 5-20R receptacles accept both standard 5-15P and 5-20P plugs, giving you flexibility across the mixed power-draw equipment that typically populates a security or AV rack. This unit ships from Middle Atlantic as a Middle Atlantic power management product and is UL Listed for commercial installation confidence.

Key Features

• 2-Stage Surge Protection: Two discrete suppression stages mean transients are clamped progressively rather than dumped into a single MOV bank. For NVRs, network switches, and video servers — equipment with sensitive storage and network interfaces — this layered approach reduces the risk of data corruption or component damage from line events that a single-stage unit would pass through.
• 20-Amp Circuit Rating: A full 20A feed means you can load a multi-device rack PDU configuration without hitting the 80% continuous-load ceiling early. Running four devices at an average of 3–4A each leaves comfortable headroom — important in security racks where NVRs, encoders, and managed switches all draw simultaneously at startup.
• 4 x NEMA 5-20R Outlets: The 5-20R receptacle accepts both 5-15P (standard) and 5-20P (higher-draw) plugs. In practice, this means you can mix a 15A NVR power supply with a 20A device without an adapter, which keeps wiring clean and avoids a common field frustration on mixed-load racks.
• RackLink LAN Control Port: The onboard LAN output connects this unit to Middle Atlantic's RackLink ecosystem, enabling per-outlet remote switching, scheduling, and monitoring over your existing IP network. For an integrator managing a multi-site surveillance or AV infrastructure, remote outlet cycling replaces a truck roll for a frozen NVR or locked-up encoder — direct operational cost reduction.
• 80–140V Wide Input Tolerance: The extended voltage window handles brownout conditions that are common in commercial buildings with heavy HVAC cycling or in industrial environments with variable utility quality. Equipment stays powered through conditions that would trip a narrower-spec unit.
• Compact Form Factor: At 6.5 lbs shipping weight, this is a space-efficient unit designed for 1U rack environments. The compact footprint matters in surveillance head-end racks, telecom closets, and wall-mount enclosures where rack unit space is premium.
• UL Listed: UL listing means the unit has been independently evaluated for electrical safety — a requirement on most commercial AV and security jobs where inspectors and AHJs verify installed equipment. Skipping UL on a rack PDU in a commercial install is a liability exposure, not just a spec omission.

Integration and Compatibility

The RLNK-P420 integrates into Middle Atlantic's RackLink platform via the onboard LAN port, enabling network-based power control from a browser interface or integration with building automation and monitoring systems. The NEMA 5-20R outlet configuration is compatible with the broad range of commercial security, AV, and IT equipment that ships with 5-15P or 5-20P cords — no special adapters required for standard rack deployments. For projects requiring remote monitoring of network video recorders and associated network gear, the RackLink interface simplifies power sequencing and recovery procedures without requiring physical access to the rack.

This unit is not TAA-compliant and is not available for international shipment — confirm project requirements if TAA compliance is a contract condition or if the installation site is outside North America. For TAA-required government or federal projects, verify compliance requirements before specifying this model.

For planning the broader PoE switch and network infrastructure in the same rack, coordinating the PDU's 20A circuit capacity with aggregate switch and NVR power draw is a standard pre-installation step — use the RLNK-P420's 20A rating as your ceiling and calculate device draws at startup, not steady-state, since inrush on storage-heavy NVRs can be 1.5–2x running draw.

Frequently Asked Questions

Q: What outlet type does the RLNK-P420 use, and will standard 15A plugs fit?

A: The RLNK-P420 uses NEMA 5-20R receptacles, which accept both standard 5-15P plugs (the flat-blade type on most equipment) and 5-20P plugs (with one horizontal blade). You do not need adapters for typical rack equipment with 15A cords.

Q: What does the LAN port on the RLNK-P420 do?

A: The LAN port connects the unit to Middle Atlantic's RackLink network power management platform, enabling remote outlet control, power sequencing, and monitoring over IP. This is how you remotely reboot a frozen NVR or encoder without a site visit.

Q: Is the RLNK-P420 TAA compliant for government or federal projects?

A: No. The RLNK-P420 is not TAA compliant per the manufacturer's published specifications. If TAA compliance is a contract requirement, a different model will be needed.

Q: What is the input voltage range for the RLNK-P420?

A: The RLNK-P420 accepts 80–140V AC input, which covers standard North American utility voltage (120V nominal) with tolerance for brownout conditions as low as 80V.

Q: Can the RLNK-P420 ship internationally?

A: No. This unit is specified for North American use only and is not available for international shipment.

Q: What does 2-stage surge protection mean compared to a single-stage PDU?

A: Two-stage surge protection uses two sequential suppression circuits that clamp transients progressively. The first stage absorbs the bulk of the energy; the second stage cleans up residual voltage spikes before they reach connected equipment. This provides more thorough protection for sensitive electronics — NVRs, managed switches, encoders — compared to a single MOV bank that may pass residual transients.

Jerry Tildsen

The RLNK-P420 gets specified on commercial security jobs where remote power cycling is non-negotiable — specifically the combination of a 20A NEMA 5-20R outlet configuration with a RackLink LAN port in a compact footprint. I've seen integrators lose hours on frozen NVR service calls that a PDU with remote outlet control would have resolved in two minutes. That's the real value here, not just the surge protection.

Technical Highlights:

• 2-Stage Surge Architecture: Progressive clamping across two stages means NVR storage controllers and managed switch ASICs — the components most vulnerable to residual transients — get cleaner power than a single-stage unit delivers.
• 20A / NEMA 5-20R: The 20A circuit gives you real headroom for a four-device security rack. Running an NVR, PoE switch, encoder, and a second network device simultaneously at startup inrush won't trip the circuit the way a 15A PDU would in the same load scenario.
• 80–140V Input Window: That 40V undervoltage tolerance below nominal 120V is meaningful in commercial buildings with shared HVAC loads. Equipment stays up through brownout conditions that a tighter-spec unit would drop.

Deployment Considerations:

• The RackLink LAN port requires network connectivity at the rack — plan a dedicated management VLAN port on your switch if you're managing this alongside production security traffic. Commingling management and camera traffic on the same port is a common oversight.
• This unit is not TAA compliant and ships to North American addresses only — confirm before specifying on any government-funded project or international job site, as substitution mid-project is disruptive.

The RLNK-P420 (also searched as RLNK P420) is the right call for unmanned surveillance head-end rooms and remote AV equipment closets where the cost of a service dispatch to cycle power exceeds the price of the PDU itself — multi-site retail security, branch office AV, and distributed access control head-ends being the primary deployment fit.
