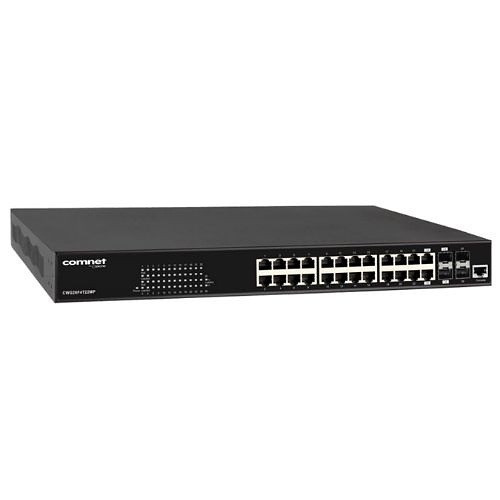

Comnet CWG26F4T22MP Commercial-Grade Managed Network Switch

Overview

The CWG26F4T22MP is a 26-port managed Gigabit switch purpose-built for surveillance and access-control deployments where you need to consolidate camera power and data onto a single rack-mounted appliance. It delivers 22 copper PoE+ ports (up to 30W per port, 420W total budget) plus 2 copper/fiber combo ports and 2 dedicated SFP fiber ports — the mix you need when you're bridging copper-fed cameras across a facility and extending to fiber for backbone uplinks or rooftop nodes. Switching fabric: 52 Gbps, latency 7 µs, handles 8,000 MAC addresses and up to 4,000 VLANs. Fits 1-RU in a 19-inch rack.

Compatibility

Works with any standard Power over Ethernet device that draws ≤30W in 802.3af/at mode: IP cameras (Axis, Hikvision, Dahua, Uniview, Hanwha, Bosch, etc.), access-control readers, PoE+ powered intercoms, and wireless access points. The 52 Gbps fabric and 7 µs latency support full-frame-rate 1080p and 4MP video streams across all 22 ports without oversubscription. SFP fiber ports accept 100Base-FX and 1000Base-LX modules for uplink to distant NVRs or core switches. Combo ports auto-sense copper or fiber (plug one or the other, never both simultaneously).

Installation Notes

Mains input: 100–240 VAC, 50–60 Hz (typical draw 30W idle, max 450W under full PoE load). Operating range 0–50°C; store at –20 to +80°C. Mount in a standard 19-inch rack using supplied rails. Plan PoE budget carefully: 420W total across 22 ports means average ~19W per port if all are live. Uplink to an NVR or core infrastructure via copper gigabit or SFP fiber. Supports link aggregation (up to 13 groups, 8 ports per group) to bond multiple ports for redundancy or increased backbone bandwidth. TAA compliant (meets US federal procurement rules).
