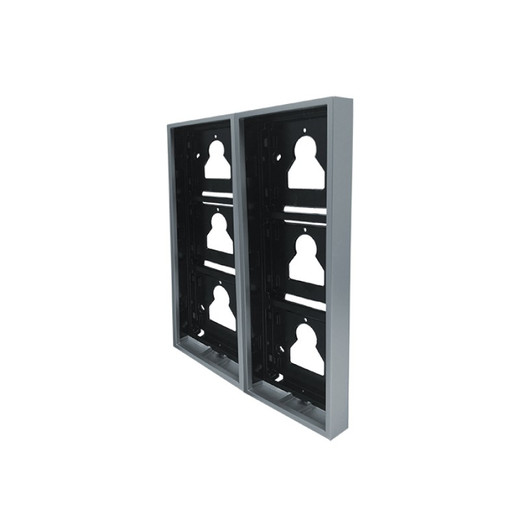

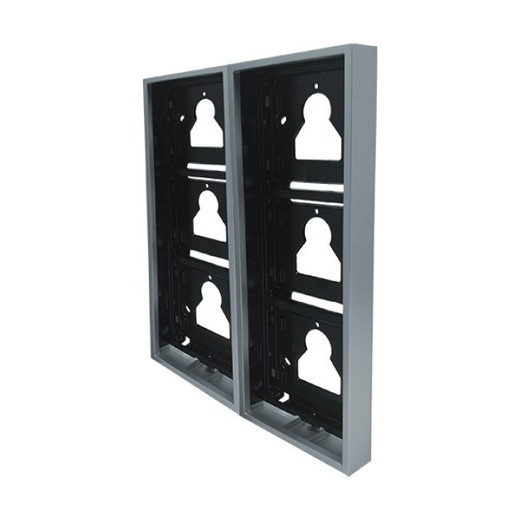

Comelit UT9176 Surface-Mounted Wall Housing
Overview
The Comelit UT9176 is a surface-mounted wall housing designed to accommodate six Ultra intercom modules in a 2×3 arrangement (two stacks of three modules). This housing eliminates the need for recessed installation or structural cutting — it mounts flat to finished walls with minimal protrusion (35 mm), making it the practical choice when you cannot modify wall cavities or when retrofit installations require avoiding drywall work. The metal support secures modules without screws, and the die-cast aluminum finishing frame resists chemical, environmental, and UV degradation — important for areas exposed to sunlight or moisture.
Compatibility
The UT9176 is engineered specifically for Comelit Ultra entrance panel systems using 6-module configurations. Verify your system uses Ultra module architecture before ordering. The housing integrates the inter-module connection cable required for side-by-side module communication — that cable is included, so you do not need to source it separately.
Installation Notes
Surface-mounting on drywall, plaster, or similar finished surfaces requires standard anchoring appropriate to wall material and system weight. The 35 mm depth allows mounting directly over baseboard or wiring without excessive recessing. No special tools or torque specifications are mentioned in the manufacturer data — standard wall fasteners and a level are sufficient. Ensure wall surface is clean and flat before mounting to prevent frame binding or module misalignment.
What's in the Box
- 1x Metal support frame (6-module capacity)
- 1x Die-cast aluminum finishing frame
- 1x Inter-module connection cable
