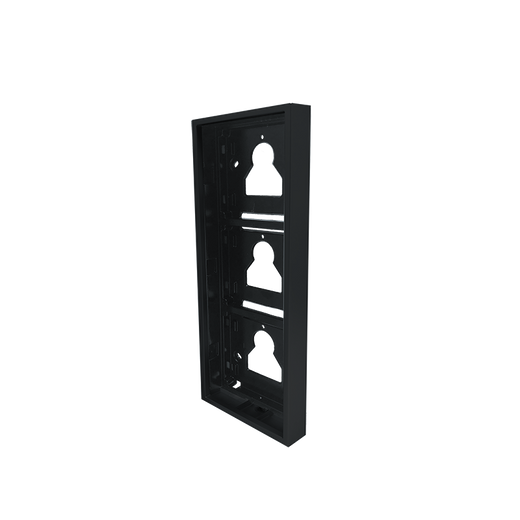

Comelit UT9173B Surface-Mounted Housing 3 Ultra Modules
The Comelit UT9173B is a wall-mounted enclosure designed to consolidate three ultra modules into a single installation point, eliminating the need to mount individual modules separately across a wall or facade. This approach simplifies cable management, reduces visible clutter, and centralizes power delivery to a single PoE+ connection point.
Key Features
- Three-Module Capacity: Houses up to three Comelit ultra modules in a single surface-mounted form factor, reducing installation labor and wall penetrations compared to distributed single-module mounts.
- PoE+ (802.3at) Power: Draws power over a single Ethernet line using PoE+ standard, eliminating the need for dedicated 12VDC or AC power supplies at the installation site. This matters in retrofit scenarios where power routing is difficult or where you want to keep infrastructure minimal.
- Thermal Integration: Purpose-built to integrate Comelit ultra thermal modules, supporting multi-perspective or redundant thermal coverage in a compact envelope. Thermal imaging is critical for perimeter security, equipment monitoring, and fire detection in industrial and warehouse settings where visible-light cameras alone cannot detect heat-signature threats.
- Surface-Mount Simplicity: Wall-mounted design (rather than flush or in-wall) allows rapid deployment without structural modification, making it suitable for temporary installations, rapid redeployment, or facilities where drilling into structural members is prohibited.
- Indoor and Controlled Outdoor Placement: Engineered for surface mounting in indoor spaces and controlled outdoor environments (sheltered areas, covered loading docks, equipment rooms). Not rated for direct rain or extreme weather without supplemental protection.
- Comelit Ultra Module Compatibility: The UT9173B is designed specifically for Comelit's ultra module thermal camera line, ensuring mechanical fit and electrical integration without adapters or workarounds.
Integration and Deployment Context
The UT9173B fits into larger thermal imaging and warehouse automation deployments where multi-point thermal data collection is necessary. In a typical warehouse automation setup, thermal modules mounted via the UT9173B can feed temperature and anomaly data to a network video recorder or thermal analytics platform for real-time alerts on equipment overheating, fire hazards, or personnel detection in restricted zones.
Because the housing consolidates three modules into one PoE+ draw, it also simplifies PoE switch planning — you budget one PoE+ port instead of three, reducing switch port count and overall power budget pressure on your network infrastructure.
If your deployment requires higher module density or additional power headroom, consider whether multiple UT9173B housings in series or a alternative Comelit mounting solution better serves your long-term scaling. Comelit's product documentation provides detail on multi-housing deployments and PoE+ power stacking rules.
Physical Specifications
The UT9173B is engineered for standard wall-mount installation using common fastening hardware. Its surface-mounted profile keeps cabling accessible and simplifies maintenance — modules can be serviced without removing the entire housing from the wall. For exact dimensions and weight, refer to the manufacturer datasheet linked in the technical specifications section.
When to Choose a Different Model
If you require only one or two thermal modules, a single-module mount may reduce cost and footprint. If your installation requires full outdoor weather resistance (IP67 or higher) with no sheltering, specify a weatherproof thermal module enclosure rated for direct rain and submersion. For Comelit's full range of thermal and IP camera mounting solutions, consult the Comelit catalog or your systems integrator.
Frequently Asked Questions
Q: Can I mount the UT9173B on a ceiling instead of a wall?
A: The UT9173B is designed for surface wall mounting. Ceiling mounting may be possible with supplemental brackets, but that is not a standard configuration — verify with the manufacturer or your integrator before attempting.
Q: Does the UT9173B include thermal modules, or is it just the housing?
A: The UT9173B is the housing only. You supply the three Comelit ultra thermal modules separately. This allows you to choose the specific module models and count that match your coverage requirements.
Q: What is the maximum PoE+ power budget for the UT9173B when fully loaded with three modules?
A: Total power draw depends on the specific ultra modules installed. Check the module datasheets and sum their individual power consumption to verify your PoE+ switch can supply the combined load. Typical modern PoE+ switches deliver 30–95W per port depending on standard (802.3at vs. 802.3bt).
Q: Is the UT9173B compatible with older Comelit module generations?
A: The UT9173B is designed for Comelit ultra modules. Compatibility with legacy or non-ultra module variants is not confirmed. Verify module part numbers with Comelit or your specialty distributor before ordering.
Q: Can I use a standard PoE (802.3af) injector instead of PoE+?
A: No. PoE+ (802.3at) is the minimum standard for this housing. Standard PoE (802.3af) delivers up to 15.4W, which may be insufficient for three modules under load. Always use PoE+ or higher.
Q: Does the housing include cable management or connector panels?
A: Internal design and included accessories are detailed in the manufacturer datasheet. Confirm cable entry points and strain-relief provisions before final installation planning.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The UT9173B consolidates three thermal modules into a single wall-mounted PoE+ endpoint, which is a practical win for thermal-heavy deployments in warehouses, logistics hubs, and manufacturing floors. Rather than running separate power and network drops to each module, you get one cable, one PoE+ budget line, and one physical footprint. That simplicity matters when you're deploying across a 10,000-square-foot facility and cable runs are expensive or architecturally constrained.
Technical Highlights:
- Three-Module Integration: Single PoE+ connection feeds all three ultra modules, eliminating redundant power infrastructure and reducing switch port consumption to 1 instead of 3.
- PoE+ (802.3at) Minimum: Budget 30W per PoE+ port on modern switches; verify individual module power draw sums do not exceed your switch's per-port or aggregate capacity.
- Surface-Mount Simplicity: No structural drilling, no in-wall running, rapid repositioning if coverage requirements shift — critical for temporary warehouse automation trials or seasonal deployments.
Deployment Considerations:
- The housing itself is not IP67 rated — keep it out of direct rain and high-humidity spray. Sheltered loading docks, covered equipment areas, and indoor control rooms are the right fit; outdoor perimeter applications require weatherproof thermal enclosures.
- Module power stacking is real. Three ultra modules can easily exceed a standard 802.3af PoE budget (15.4W). Confirm your network switch supports 802.3at (30W) or 802.3bt (60–90W) before committing, or you will face a costly switch upgrade mid-project.
Deploy the UT9173B when thermal redundancy or multi-angle thermal coverage is a hard requirement — for example, three thermal perspectives across a goods-receiving dock to catch equipment faults, fire risk, and personnel overexposure in a single installation. For single-module thermal deployments or weatherproof outdoor thermal imaging, re-evaluate the form factor and enclosure rating.
