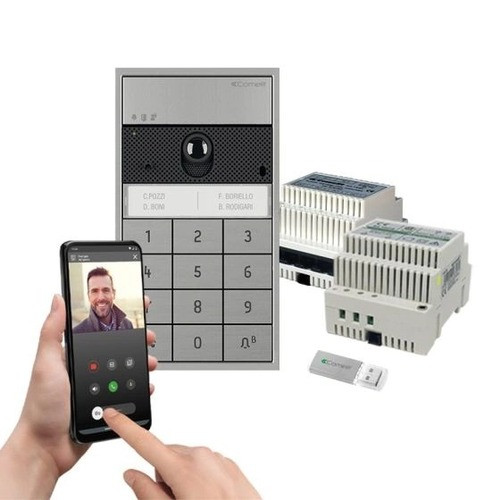

Comelit KVU8509 4MP IP Video Intercom with Keypad and Gateway
Overview
The Comelit KVU8509 is a unified PoE+-powered IP video intercom designed for building entry, access control, and visitor management at main entrances, lobbies, and secure access points. This unit combines a 4MP camera sensor with an integrated numeric keypad and network gateway function in a single wall-mounted form factor. The 4MP resolution delivers sufficient detail for facial recognition and license plate capture at typical entry distances—a practical benefit when you need to verify visitors or document access events. Power arrives over a single PoE+ (802.3at) connection, eliminating the need for separate 12VDC supplies or mains wiring at the entry point itself.
Key Features
- 4MP Sensor (2688 × 1520): Captures facial detail and wider lobby scenes without requiring a second panoramic or multi-sensor unit. Useful for access logs and incident review.
- PoE+ (802.3at) Power: Draws power from your network switch with no additional cabling. Simplifies installation at remote entry gates and reduces the number of electrical circuits you need to provision.
- 850nm Infrared Night Vision: Operates in complete darkness using near-infrared illumination. Critical for 24/7 outdoor or dimly-lit entry points where ambient light cannot be guaranteed.
- Integrated Keypad: Numeric entry for PIN-based access control or gate release commands, eliminating the need for a separate wall-mounted access control keypad or button station.
- Gateway Function: Acts as a network node for intercom signaling and access control commands. Supports communication with building management systems and mobile apps for remote unlock/monitoring requests.
- IP Video Intercom Architecture: Unlike older analog intercom systems, the KVU8509 transmits audio and video over your network, allowing calls to be routed to smartphones, desk phones, or a central security station without dedicated intercom wiring.
Integration & Compatibility
The KVU8509 is part of the Comelit IP camera and access control family. Before deployment, verify that your network video recorder or management software supports ONVIF (Open Network Video Interface Forum) protocol, which ensures broad compatibility across third-party systems. Comelit also publishes integration guidelines for popular VMS platforms—consult the datasheet or contact Comelit technical support to confirm your specific system pairing. Network switch must supply PoE+ (minimum 30W per port) to avoid power-sharing issues if multiple high-wattage devices draw from the same switch.
The unit mounts on a standard wall outlet box or surface-mounted enclosure, making it suitable for retrofit installations where running new conduit is not practical. Consider PoE switches capable of delivering sufficient power budget if you plan to scale this across multiple entry points.
When to Choose a Different Model
If you need higher resolution (8MP or 12MP) for long-range identification tasks, evaluate higher-megapixel variants within the Comelit intercom range. If your site requires a separate control relay or advanced automation logic beyond basic keypad entry, consult Comelit's modular access control panels. If you need outdoor-only ruggedness (IP67 submersion-rated enclosures), verify the KVU8509's exact IP rating and consider ruggedized variants if full water immersion is a risk.
Frequently Asked Questions
Q: Can the KVU8509 integrate with my existing Comelit door access panel?
A: Yes, the KVU8509's gateway function allows it to communicate with Comelit access control systems. Confirm your specific panel model and firmware version with Comelit support to ensure compatibility.
Q: Does the KVU8509 work with ONVIF VMS software?
A: The unit supports ONVIF for video and basic metadata. Intercom and keypad features may require proprietary Comelit software or integration modules—check with your VMS vendor before purchase.
Q: What's the power consumption of the KVU8509?
A: Exact wattage is detailed in the product datasheet. PoE+ (802.3at) provides up to 30W per port, which is sufficient for the unit. If you run multiple intercoms on the same switch, verify total power budget.
Q: Can I mount the KVU8509 indoors and outdoors?
A: The KVU8509 is designed for standard wall mounting. Verify its IP and temperature ratings in the datasheet for your specific climate. If outdoor installation in extreme weather is required, confirm weather-seal and enclosure specifications with the manufacturer.
Q: Does the KVU8509 include a microphone and speaker for two-way audio?
A: Yes, IP intercoms include two-way audio. Confirm audio codec and echo cancellation details in the datasheet for your specific VMS integration.
Q: Is there a mobile app to unlock the KVU8509 remotely?
A: Remote unlock functionality depends on your gateway configuration and VMS software. Consult Comelit's integration documentation or contact a systems integrator for setup guidance.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The KVU8509 closes a common gap in IP-based access control: it bundles video, keypad entry, and network gateway into one wall-mounted unit, reducing component count and installation complexity. For warehouse receiving docks, office lobbies, or multi-tenant entry points where you need to log who entered and when, the 4MP resolution and integrated keypad make this a practical all-in-one solution. The 850nm IR keeps it working around the clock without adding external lighting.
Technical Highlights:
- 4MP Resolution: Sufficient for facial recognition and asset verification at typical entry distances (3–6 meters). Reduces false accepts/rejects compared to lower-megapixel units.
- PoE+ Single-Cable Install: One network run replaces separate video, audio, power, and relay wiring. Installation labor is typically 30–40% faster than traditional intercom + access control stacking.
- 850nm IR Range: Delivers night vision without visible light spillover, important for perimeter gates and outdoor courtyards where white LED floods would annoy neighbors or trigger security alerts.
Deployment Considerations:
- Gateway function assumes your network supports multicast SIP signaling; confirm with your IT team if your VMS or phone system uses SIP, or you may need a separate intercom controller.
- Keypad entry alone is not encryption-protected over the network—pair with 802.1X port authentication or a separate access control appliance if you operate in a high-security environment.
Deploy the KVU8509 at main building entrances where you want a single touchpoint for video, call, and door release—particularly in operations where tablet or smartphone unlock approval is your primary workflow.
