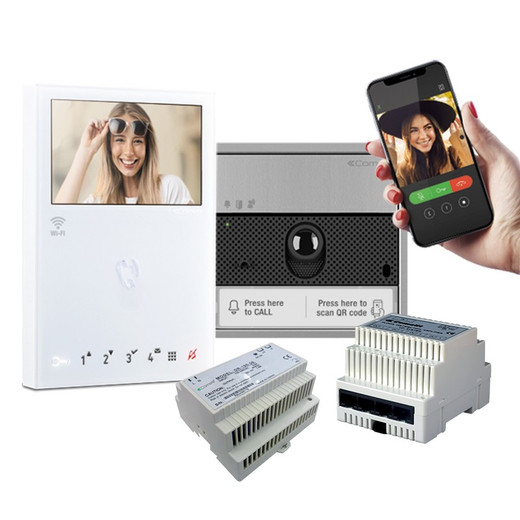

Comelit KVU8508 Surface Mount Video Intercom Kit
Overview
The Comelit KVU8508 is a complete surface-mount video intercom solution purpose-built for single-family residential deployments. This unit delivers 4MP resolution with integrated 850nm infrared night vision, enabling round-the-clock entry monitoring without supplemental lighting. Power arrives via PoE+ (802.3at), eliminating the need for dedicated 24VDC power runs to the entry point — a meaningful cost saving on retrofit installations where running conduit is disruptive or expensive.
Key Features
- 4MP Resolution: Captures enough detail to identify faces and read license plates at typical entry distances, reducing the back-and-forth common with lower-resolution systems.
- PoE+ (802.3at) Power: Runs the entire unit over a single Ethernet cable from a PoE+-capable network switch. No separate power supply or 24VDC transformer — simplifies wiring, reduces clutter at the main panel, and lowers total project cost on residential retrofits.
- 850nm Infrared Night Vision: Built-in IR illumination ensures video clarity after sunset and in low-ambient conditions. IR range is sufficient for typical entry vestibules and stoops; verify exact range against your specific mounting height and approach distance.
- Surface-Mount Form Factor: Mounts flush to exterior walls or entry surrounds without requiring a bulky in-wall housing. Simplifies installation on existing finished surfaces and reduces aesthetic intrusion on residential facades.
- Residential Video Intercom Integration: Designed to pair with Comelit IP intercom and access control systems. If you're standardizing on the Comelit video intercom line, this unit's firmware and codec stack integrate without custom bridging.
- Network-Ready Architecture: Operates on standard Ethernet infrastructure, making it compatible with any IP-based access control platform or video management system that supports ONVIF or proprietary Comelit protocols. Verify codec and frame-rate compatibility with your chosen NVR or VMS before purchase.
Integration and Compatibility
The KVU8508 connects to standard PoE+-enabled network switches commonly found in modern residential security deployments. Because the unit is PoE+-powered, confirm your switch has sufficient available power budget: a single unit draws power within the 802.3at envelope, but if you're daisy-chaining multiple intercoms or combining this with other high-draw devices (like IP cameras or access control readers), calculate total wattage against your switch's PSU capacity.
Network integration depends on the downstream system. If you're using a Comelit-branded NVR or intercom server, compatibility is native. If you're integrating into a third-party network video recorder or VMS platform, confirm that your chosen platform lists Comelit intercom or 4MP IP camera support in its compatibility matrix — especially regarding audio codec, intercom signaling (SIP, proprietary), and resolution scalability.
Power and Wiring Considerations
PoE+ eliminates a separate power supply, but it does mean your network infrastructure must support it end-to-end. If your existing switch is PoE or standard PoE only (802.3af, 13W max), upgrade the switch or use a PoE+ injector at the run length from switch to camera. Long cable runs (over 100 meters) can degrade PoE voltage delivery — keep runs under 90 meters where possible, or use active injectors at midspan.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Comelit KVU8508 is a solid fit for single-family retrofits where you're adding video verification to an existing residential access control system and want to avoid the cost and mess of running dedicated 24VDC power lines. The 4MP resolution and 850nm infrared keep night-time identification reliable, and PoE+ power keeps the bill of materials simple. The real decision point: does your control system or VMS actually support Comelit's intercom codec and signaling stack? If you're mixing platforms, you may end up needing a translator or bridge.
Technical Highlights:
- 4MP Sensor: Sufficient for entry-level face recognition and plate reading at typical residential entry distances (2–4 meters). At 4MP, expect file sizes of 800 KB–1.2 MB per H.264 frame at standard bitrates — a 30-day rolling buffer on a 2TB NVR drive is feasible for continuous recording.
- PoE+ Integration: Draws within 802.3at limits, meaning any modern commercial PoE+ switch can power it without strain. Budget roughly 13–15W max draw during active IR illumination.
- 850nm Night Vision: Invisible to the human eye, reducing light pollution complaints in residential neighborhoods. Effective range typically 3–5 meters in a dark entry; extend via supplemental IR if you need 10+ meter visibility.
Deployment Considerations:
- Verify that your chosen access control server or VMS explicitly lists Comelit KVU8508 or Comelit intercom support. Generic ONVIF support does not guarantee intercom call signaling (SIP, proprietary RTP) will function.
- Surface-mount form factor means weather sealing relies entirely on gaskets and sealant. On installations with heavy wind-driven rain or direct spray, apply silicone caulk around the base and test for water ingress before commissioning.
- PoE+ power means a network outage blacks out the camera and intercom simultaneously — no battery backup on this unit. If entry monitoring is mission-critical, consider a battery-backed PoE+ injector or UPS-protected network segment.
Position the KVU8508 for residential single-family installs where you're retrofitting a Comelit system or building out a new PoE-based residential access control stack. Skip this unit if your site is already committed to a non-Comelit vendor ecosystem without proven bridge support.
Frequently Asked Questions
Q: Does the Comelit KVU8508 work with non-Comelit access control systems?
A: The KVU8508 can deliver video over ONVIF-compatible networks, but intercom call signaling (ringing, two-way audio routing, unlock triggers) is proprietary Comelit. If your access control server does not explicitly support Comelit intercom devices, you'll get video only, not full intercom functionality. Verify compatibility with your VMS or control platform before deploying.
Q: What is the infrared night vision range on the KVU8508?
A: The unit includes 850nm infrared illumination suitable for typical residential entry vestibules and stoops (roughly 3–5 meters in darkness). Exact range depends on mounting height, lens angle, and reflective surfaces. If you require coverage beyond 5 meters, plan for supplemental IR fixtures or higher-power IR intercom models.
Q: Can the KVU8508 be powered by standard PoE (802.3af)?
A: No. The KVU8508 requires PoE+ (802.3at). Standard PoE supplies only 13W maximum; the KVU8508 with active IR may exceed that during peak operation. Ensure your switch or injector is certified PoE+ (30W available per port).
Q: Is the KVU8508 suitable for outdoor mounting in rain?
A: The unit is designed for surface-mount outdoor deployment. Ensure proper weather sealing: apply silicone caulk around the base and cable entry, and verify gasket condition before final commissioning. While the electronics are rated for outdoor conditions, water ingress into the junction box or connector areas will cause failure.
Q: What codecs and frame rates does the KVU8508 support?
A: Refer to the full datasheet for codec details (H.264, H.265, or MJPEG options). Standard Comelit units support 30 fps at 4MP. Check your NVR or VMS documentation to confirm it accepts the codec and bitrate the KVU8508 outputs.
Q: What is the warranty on the Comelit KVU8508?
A: Refer to the manufacturer's warranty documentation or verify with your distributor. Comelit typically provides a 1–2 year manufacturer warranty on video intercom units; confirm the exact terms for your region before purchase.
