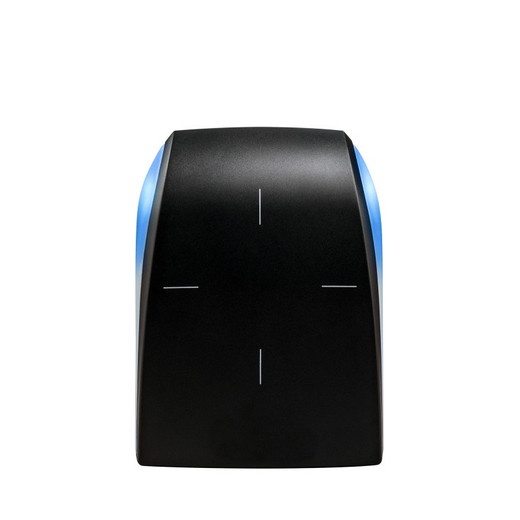

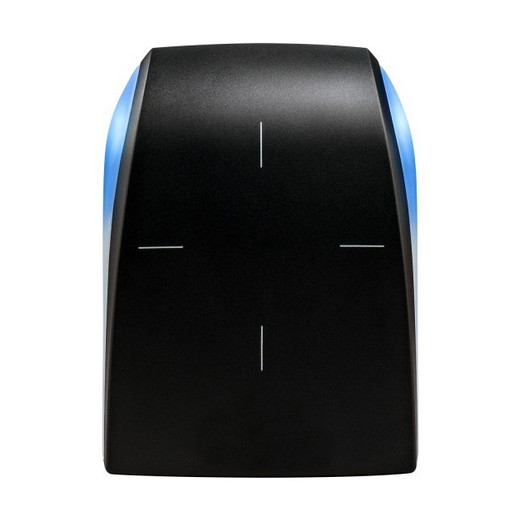

Comelit 7257713 Architect A Blue RFID & Bluetooth Reader
Overview
The Comelit 7257713 is a vandal-proof RFID and Bluetooth reader built for Architect A Blue access control installations. It supports both HF RFID cards and Mobile IDs via Bluetooth, with a configurable read range up to 80 mm for proximity credentials and up to 20 m for Mobile ID authentication. The reader ships with accelerometer-based tamper detection—meaning unauthorized removal or physical attack triggers an alarm without separate mechanical switches. Default operating mode is Card User, though PAC OPS™ mode is available for advanced deployments. Form factor is compact: 80 × 107 × 26 mm (3.15 × 4.21 × 1.02 in), designed for wall or surface mounting in residential and commercial security zones.
Compatibility
The 7257713 integrates with Comelit Architect A Blue control platforms and Architect system architectures. Verify compatibility with your existing Comelit installation before ordering—this reader is not cross-compatible with non-Architect systems. It functions as a credential enrollment and authentication point, supporting multi-factor workflows (card + mobile) where the system logic permits.
Installation Notes
Mount the reader to a vertical surface using the provided hardware; ensure no metal or conductive material is placed directly behind the antenna. Read range for HF cards is affected by surrounding materials—test range in your actual environment before final installation. Accelerometer sensitivity can be tuned to minimize false tamper alarms in high-vibration areas (e.g., near heavy machinery or traffic corridors). Power and communication are typically supplied through the Architect A Blue panel or a dedicated reader power module—confirm wiring requirements with your system integrator.
