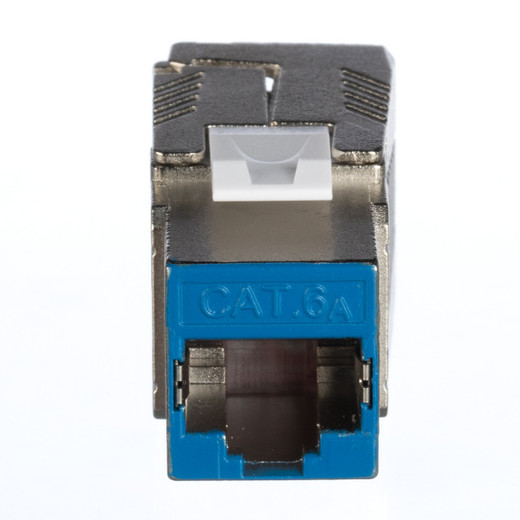

Panduit KJS6X88TCBU Cat 6A Shielded Keystone Jack - Blue

Panduit KJS6X88TCBU Keystone Cat 6A Shielded Jack Module

The Panduit KJS6X88TCBU is a Category 6A shielded RJ45 keystone jack engineered for 10GBASE-T installations requiring robust EMI protection and high-power PoE delivery. Built around a die-cast metal housing with blue identification facing, this NetKey® jack terminates 22-24 AWG shielded twisted pair cable using forward-motion IDC contacts that preserve pair geometry through 500 MHz. Integrators deploying IP cameras, Wi-Fi 6E access points, or industrial Ethernet devices in electrically noisy environments gain tested 10 Gb/s performance and 100W PoE++ handling in a field-installable keystone form factor.

Key Features

• Category 6A shielded performance: Meets TIA-568.2-D and ISO 11801 Class EA requirements for 10GBASE-T transmission up to 100 meters at swept frequencies 1–500 MHz
• Die-cast metal housing: Provides mechanical strength and 360° EMI shielding continuity from cable shield through connector body to mated plug
• Forward-motion termination: IDC contacts capture conductors in a single forward stroke, reducing pair untwist and maintaining alien crosstalk margins required for 10G
• PoE++ rated: 750-cycle durability rating with IEEE 802.3af/at/bt Type 1–4 compliance for continuous 100W power delivery on data pairs
• Universal keystone mounting: Fits standard keystone cutouts in faceplates, surface boxes, patch panels, and furniture grommets for flexible deployment
• Blue facing: Front-facing color band simplifies circuit identification and matches TIA-606-C blue designation for horizontal voice/data cabling

The KJS6X88TCBU's die-cast housing is central to its 10G performance envelope. Unlike plastic-bodied jacks that rely on foil wraps or internal shields, the metal chassis forms a continuous Faraday cage around the IDC termination zone and RJ45 contact assembly. This architecture maintains shield continuity even when cables experience mechanical stress from conduit pulls or vibration in industrial spaces. The forward-motion termination system uses a purpose-built insertion tool (sold separately) to seat all eight conductors simultaneously—pair twist is preserved to within 0.5 inches of the contact point, keeping NEXT and return loss within Cat 6A component margins through 500 MHz. In alien crosstalk testing per TIA-568.2-D Annex F, shielded jacks of this design consistently deliver 6–9 dB better ANEXT performance than unshielded equivalents at 500 MHz, a critical margin when deploying 10GBASE-T in bundles of six or more cables.

PoE++ installations demand more than data-grade contact durability. The KJS6X88TCBU carries a 750-cycle insertion rating when delivering continuous 100W Type 4 power—three times the 250-cycle baseline of consumer-grade jacks. Contact phosphor bronze is plated with 50 microinches of gold over nickel to resist oxidation and maintain contact resistance below 20 milliohms under sustained heat from 948 mA @ 52V DC. Integrators installing high-power PTZ cameras, 802.11ax APs, or LED lighting controllers benefit from stable contact resistance across temperature cycling and connector mating wear. The blue front facing integrates with structured cabling color schemes: use blue for general horizontal data runs per TIA-606-C, reserving other NetKey jack colors (orange, yellow, green, etc.) for specialty circuits like dedicated PoE trunk lines or surveillance VLANs. The keystone form factor drops into any NEMA WD-6 compliant faceplate, maintaining a consistent tooling and rough-in standard across Panduit, Leviton, Hubbell, and generic keystone infrastructure.

Meets ANSI/TIA-568.2-D Category 6A component and channel requirements, ISO/IEC 11801 Class EA, IEC 60603-7 mechanical interface, and ANSI/TIA-1096A shielded connector standards. RoHS compliant. Sold individually with a 50-piece bulk carton option for large deployments. When job specifications mandate 10 Gb/s headroom, documented shielding effectiveness, and field-verifiable PoE++ power handling in a toolless-swap keystone package, the KJS6X88TCBU delivers the tested performance and mechanical durability that keeps horizontal cabling infrastructure operational through decades of device upgrades and power standard revisions.
