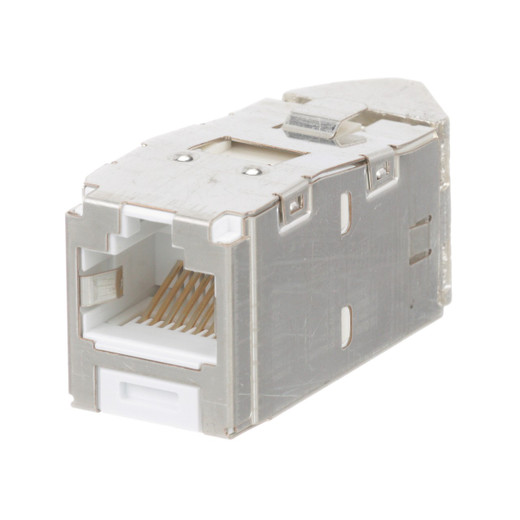

Panduit CJSLR6X88TGWHY Category 6A Shielded Keystone Jack Module

The Panduit CJSLR6X88TGWHY is a Cat 6A shielded keystone jack module engineered for high-performance copper infrastructure in commercial security, datacenter, and enterprise network installations. Built to the Pan-Net® specification, this white jack delivers exceeds-rated performance against ANSI/TIA-568.2-D and ISO 11801 Category 6A channel requirements while supporting the full IEEE 802.3bt PoE++ Type 4 power budget—critical for powering 4K PTZ cameras, high-wattage access points, and advanced IP door controllers over a single structured cable run. Designed for 2,500 mating cycles and UL 2043 plenum compliance, this module meets the durability and fire-safety demands of mission-critical installations.

Key Features

• Category 6A shielded performance exceeding ANSI/TIA-568.2-D and ISO 11801 component and channel specs for 10GBASE-T to 100 meters
• Full IEEE 802.3bt Type 3 and Type 4 PoE++ support delivering up to 90W per port for high-power IP devices
• 2,500 connection cycle durability rating—5× the baseline—ensuring reliable performance in high-churn patch and test environments
• UL 2043 plenum rated and RoHS compliant for installation in air-handling spaces and environmentally regulated projects
• Compact 0.71" × 1.73" × 0.62" white housing compatible with standard keystone wall plates, patch panels, and surface-mount boxes
• IEC 60603-7 and UL 1863 certified for global deployment and electrical safety in structured cabling systems

Panduit's shielded Cat 6A jack modules are built around a precision-stamped contact design that maintains 360° shield continuity from the cable shield through the keystone body to the front-end connector interface. This end-to-end shielding topology is essential in security and surveillance deployments where long cable runs pass through electrically noisy environments—HVAC mechanical rooms, elevator shafts, or alongside fluorescent ballasts and VFD motor controllers. The CJSLR6X88TGWHY maintains less than -40 dB alien crosstalk rejection across the full 1–500 MHz spectrum, preventing interference between adjacent 10GBASE-T links in high-density patch panel arrays. The module's 50-microinch gold-plated contacts resist corrosion and ensure low insertion loss even after hundreds of plug/unplug cycles during troubleshooting or reconfiguration. Termination follows the industry-standard 110 IDC format with color-coded wire guides for both T568A and T568B wiring schemes—installers can punch down 23 AWG solid copper conductors using a standard impact tool with visual and tactile confirmation of seating depth.

PoE++ Type 4 compliance is a critical differentiator for integrators specifying infrastructure to support the latest generation of IP security devices. The CJSLR6X88TGWHY's contact geometry and plating thickness are engineered to carry the continuous 0.96A per conductor pair required by 802.3bt four-pair power delivery without exceeding the 15°C temperature rise limit at the connector interface. This thermal performance is validated across 2,500 mating cycles—representative of a 7–10 year service life in environments where patch cords are frequently moved for testing, MAC (moves/adds/changes), or seasonal camera repositioning. The module's UL 2043 plenum rating allows installation in drop-ceilings and return-air plenums without requiring conduit, reducing material and labor costs on retrofit projects where existing pathway capacity is limited. RoHS compliance ensures the jack meets procurement requirements for government, healthcare, and municipal installations subject to hazardous-substance restrictions. The white housing finish integrates cleanly with modern office and institutional wall plate aesthetics while maintaining visibility in low-light equipment rooms and telecom closets.

The CJSLR6X88TGWHY ships in 50-piece cartons with individual UPC-coded packaging, streamlining inventory management and field kitting for large-scale rollouts. Its Cat 6A shielded performance and Type 4 PoE support make it the logical termination choice for integrators deploying Axis Q-line PTZ cameras, Hanwha Wisenet P-series multisensors, or UniFi 6 Enterprise access points—devices that depend on both 10-gigabit backhaul bandwidth and 60–90W power budgets to operate at full capability. When paired with Panduit's shielded patch cords and grounded patch panels, this jack delivers a complete end-to-end shielded channel that meets or exceeds the performance margins required for AV-over-IP, building automation, and high-resolution video surveillance infrastructure.
