Panduit UTP6AX15MBL Cat 6A 15M Patch Cord - Black

Panduit UTP6AX15MBL TX6A 10Gig Cat 6A UTP Patch Cord

The Panduit UTP6AX15MBL is a 15-meter (49.2 ft) Category 6A unshielded twisted pair patch cord engineered for 10GBASE-T Ethernet deployments in commercial networks, datacenters, and structured cabling installations. Built with 24 AWG solid copper conductors and high-performance RJ45 modular plugs, this black cord delivers 10 Gb/s throughput while maintaining alien crosstalk control through internal foil tape shielding. The tangle-free latch design and pre-installed RapidID barcoding streamline moves, adds, and changes in high-density patching environments.

Key Features

• 15-meter (49.2 ft) Cat 6A UTP patch cord supports 10GBASE-T Ethernet up to 100 meters channel length
• 24 AWG solid copper conductors in U/UTP construction with internal foil tape to limit alien crosstalk
• 0.250\" (6.4mm) diameter cable profile balances performance with space efficiency in high-density racks
• Tangle-free latch prevents snags during cable management and ensures fast, positive release
• RapidID pre-installed barcodes enable automated port mapping and asset tracking via Panduit RapidID software
• Rated for 2500 mating cycles—5× the TIA-568 minimum—for long service life in active patching zones
• PoE++ compatible: supports IEEE 802.3af/at/bt Type 3 and Type 4 (up to 90W per port)
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA performance specifications

The UTP6AX15MBL's solid foil tape construction limits alien crosstalk (AXT) to ensure margin against 10GBASE-T bit error rate thresholds without the bulk and bend-radius constraints of fully shielded F/UTP or S/FTP cables. The 24 AWG solid conductors provide lower DC resistance than stranded equivalents, reducing insertion loss over the 15-meter run and preserving PoE++ power budget headroom. Each modular plug is factory-terminated and tested to IEC 60603-7, eliminating field termination variability and ensuring consistent 500 MHz bandwidth performance across all eight conductors. The black jacket simplifies visual segregation in mixed-service patch fields—common practice for isolating management VLANs, out-of-band networks, or PoE-only switch ports.

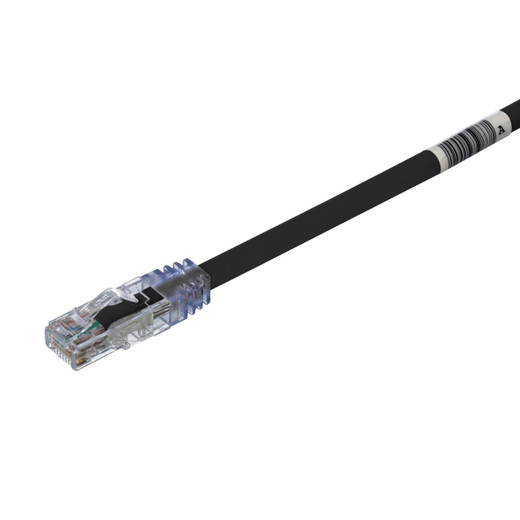

Panduit's tangle-free latch features a low-profile boot that deflects around adjacent patch cords during insertion and removal, reducing the cable pulls and re-dress cycles that degrade plug retention force over time. The RapidID barcode is laser-etched onto the plug body and encodes a unique serial number that integrates with Panduit's RapidID mobile app and Physical Infrastructure Manager (PIM) software—scanning both ends of a cord automatically documents port-to-port connectivity in the DCIM database without manual spreadsheet entry. For PoE++ deployments, the cord's 2500-cycle rating and robust conductor gauge ensure stable contact resistance even after years of device swaps, preventing the intermittent link failures that arise when worn plugs increase series resistance beyond the 12.5Ω channel limit.

This patch cord meets ANSI/TIA-1096-A (formerly FCC Part 68) for telecom interconnection, UL 1863 for communication cable safety, and carries CM (communications) flammability rating suitable for general building horizontal and equipment cord applications. RoHS compliant construction ensures compatibility with EU and California e-waste directives. The 15-meter length suits cross-aisle datacenter runs, building riser interconnects between floors, and zone cabling topologies where consolidation points extend the permanent link—eliminating the need for mid-span couplers that introduce insertion loss and alien crosstalk vulnerability.
