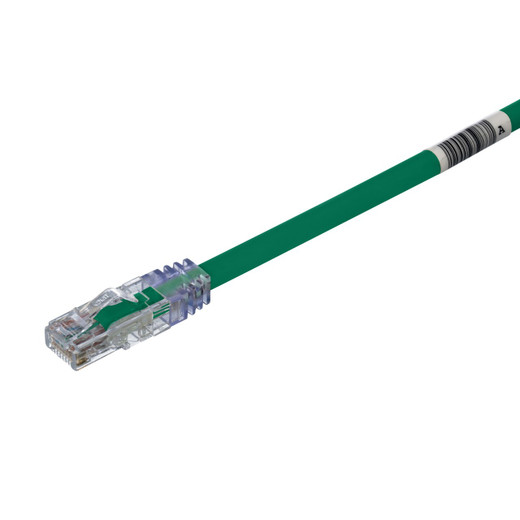

Panduit UTP6AX0.5MGR Cat 6A 0.5m UTP Patch Cord Green

Panduit UTP6AX0.5MGR TX6A 10Gig Cat 6A UTP Patch Cord

The Panduit UTP6AX0.5MGR delivers 10GBASE-T performance in a 0.5-meter patch cord engineered for high-density data center and rack environments. Unlike typical stranded patch cables, this cord uses solid 24 AWG conductors with an integrated solid foil tape shield to mitigate alien crosstalk in tightly bundled deployments. The tangle-free latch design streamlines moves, adds, and changes by preventing snags on adjacent cables, while pre-installed RapidID barcodes enable rapid port mapping and asset documentation without manual labeling.

Key Features

• 10GBASE-T transmission up to 500 MHz, exceeds ANSI/TIA-568.2-D Cat 6A and ISO 11801 Class EA
• Solid 24 AWG U/UTP construction with solid foil tape for alien crosstalk suppression in dense bundles
• 0.5-meter (1.6 ft) length optimized for short top-of-rack and adjacent-switch runs
• Tangle-free latch prevents snags during cable pulls and equipment moves
• RapidID pre-installed barcodes for automated port mapping and change management
• Supports IEEE 802.3af/at/bt PoE, PoE+, and PoE++ (Type 3 & 4) power delivery
• 6.4 mm (0.250") diameter for efficient cable management in high-density panels
• CM flammability rating for general commercial installations
• Compatible with both T568A and T568B wiring schemes

The U/UTP construction combines unshielded twisted pairs with a solid foil tape element that limits alien crosstalk—critical when running dozens of 10 Gb/s links in parallel through shallow cable trays or vertical managers. The solid conductor design maintains tighter twist ratios than stranded equivalents, delivering lower insertion loss and more headroom against the 500 MHz performance ceiling. At 6.4 mm outer diameter, the cord occupies roughly 40% less bundle cross-section than shielded F/UTP alternatives, letting you maintain airflow and bend-radius compliance in 1U and 2U chassis with rear-mounted switches. The green jacket provides instant visual identification for specific VLANs, fabric tiers, or out-of-band management networks.

RapidID integration addresses the documentation gap that plagues fast-turnaround deployments: each cord ships with a machine-readable barcode that ties the physical asset to port records in Panduit's RapidID software. Scan the cord during installation to auto-populate port maps, elimination transcription errors and cut post-deployment reconciliation time. For data center operators managing virtualized server farms or I/O consolidation projects, the combination of 10 Gb/s headroom and PoE++ compliance future-proofs the physical layer against incremental compute and power requirements. The tangle-free latch's breakaway design prevents the accidental port disconnects that occur when removing adjacent cables in fully populated panels—a failure mode that can trigger spanning-tree reconvergence or drop active sessions.

Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA transmission requirements across the full 1–500 MHz spectrum. Tested to ANSI/TIA-1096-A (FCC Part 68), IEC 60603-7, and UL 1863 / CSA C22.2 standards (UL File E129886). Wired to support both T568A and T568B termination schemes without adapter requirements. RoHS compliant. Carton quantity: 10 cords per box for volume rack deployments.
