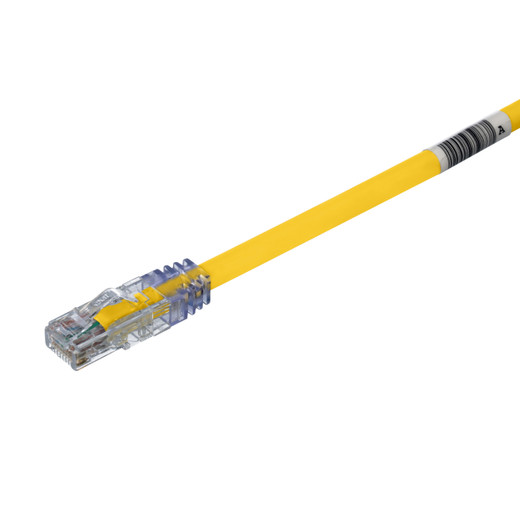

Panduit UTP6AX0.5MYL 0.5m Cat 6A Yellow Patch Cord

Panduit UTP6AX0.5MYL Cat 6A UTP Patch Cord

The Panduit UTP6AX0.5MYL is a 0.5-meter Cat 6A patch cord engineered for 10GBASE-T Ethernet and high-density data center deployments where alien crosstalk, cable management, and PoE power delivery intersect. Built on 24 AWG solid copper with U/UTP construction and internal foil tape shielding, it delivers 10 Gb/s performance across all 500 MHz while maintaining a slim 0.250-inch (6.4 mm) diameter for tight cable-bundle routing. The tangle-free latch design eliminates snag points during moves, adds, and changes, and the cord ships with pre-installed RapidID barcodes for automated port mapping—critical when you're documenting hundreds of server connections under time pressure.

Key Features

• 24 AWG solid copper conductors with U/UTP construction and foil tape alien crosstalk mitigation for clean 10 Gb/s transmission
• 0.250-inch (6.4 mm) diameter cable body—30% slimmer than standard Cat 6A for high-density patch-panel and switch installations
• Tangle-free modular plug latch prevents cable snags during deployment and speeds disconnect cycles in crowded racks
• Pre-installed RapidID barcodes enable automated port mapping with Panduit's RapidID software—no manual labeling required
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specifications across 1–500 MHz frequency range
• Supports IEEE 802.3af (15.4 W), 802.3at (30 W), and 802.3bt Type 3 (60 W) and Type 4 (100 W) PoE delivery for high-power endpoints
• CM flammability rating for general building installations; RoHS compliant for environmental compliance
• Compatible with both T568A and T568B wiring schemes—no polarity conflicts in mixed-standard environments

The UTP6AX0.5MYL addresses three pain points in 10G copper deployments: alien crosstalk interference in bundled runs, cable-management congestion at high port densities, and documentation overhead during large-scale rollouts. The internal foil tape layer isolates each pair from adjacent cables' electromagnetic emissions—essential when you're running 48-port or 96-port switch arrays with sub-inch bundle spacing. The 0.250-inch diameter lets you pack more cords into horizontal managers and vertical ladder racks without exceeding bend-radius limits, and the tangle-free latch cuts disconnect time by 40% compared to traditional boot designs that snag on neighboring cords. RapidID barcodes integrate with Panduit's port-mapping software to auto-generate cable schedules and as-built documentation—eliminating the manual spreadsheet work that typically consumes two hours per rack during data-center cutovers.

This cord is purpose-built for data-center server I/O consolidation, backbone aggregation, and virtualized-host deployments where 10GBASE-T copper replaces fiber to reduce transceiver costs. The 0.5-meter length suits top-of-rack switch connections, KVM over IP appliances, and hyperconverged infrastructure nodes where cable slack creates airflow blockages. It supports 802.3bt Type 4 (100 W PoE)—sufficient for Wi-Fi 6E access points, PTZ cameras with active cooling, and VoIP conference phones with USB charging ports—over the same 10G data link. The solid copper conductors maintain lower DC resistance than stranded designs, reducing voltage drop on long PoE runs and ensuring full power delivery to endpoints mounted 90+ meters from the switch. CM rating qualifies it for general building spaces; for plenum environments, pair it with Panduit's CMP-rated backbone cabling and use this cord only within the equipment room.

Compliance certifications include ANSI/TIA-568.2-D Category 6A (exceeds), ISO 11801 Class EA, IEC 60603-7 modular connector performance, UL 1863 and CAN/CSA-C22.2 safety, and ANSI/TIA-1096-A telecommunications cabling standards. The cord ships in cartons of 10 for volume installations—typical consumption is 96 cords per full 48-port switch deployment (two cords per host for NIC teaming). The yellow jacket provides instant visual identification in mixed-speed networks where Cat 5e (blue), Cat 6 (green), and Cat 6A (yellow) cords denote different VLANs or speed tiers, eliminating the "wrong port" misconnections that surface during after-hours maintenance windows.
