Panduit UTP6AX0.5MRD 10Gig 0.5m Cat 6A UTP Patch Cord

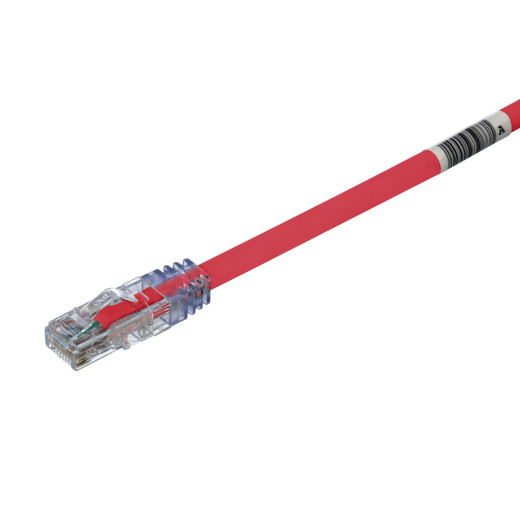

Panduit UTP6AX0.5MRD Cat 6A UTP Patch Cord

The Panduit UTP6AX0.5MRD delivers 10GBASE-T performance in a half-meter form factor purpose-built for high-density rack interconnects and top-of-rack switching. This TX6A series patch cord uses 24 AWG solid copper conductors in a 6.4mm-diameter U/UTP construction, meeting Category 6A performance across the full 1–500 MHz spectrum while maintaining the flexibility needed for congested pathway fills. The tangle-free plug latch eliminates snag-related service calls during MACs, and factory-installed RapidID barcodes integrate directly with Panduit's asset management platform—critical when you're mapping 200+ ports per cabinet in virtualized server environments or spine-leaf architectures.

Key Features

• 10GBASE-T certified Cat 6A UTP patch cord, 0.5-meter length for short rack interconnects
• 24 AWG solid copper conductors with modular plug terminations on both ends
• Red jacket for visual circuit identification and adherence to TIA-606-C labeling standards
• RapidID barcode integration enables automated port documentation via Panduit RapidID software
• Tangle-free latch design reduces snag incidents and accelerates moves, adds, and changes
• PoE++ compliant—supports IEEE 802.3bt Type 4 (90W) power delivery to access points and cameras
• CM flame rating suitable for general building risers and horizontal pathways
• Exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA specifications across 1–500 MHz

Panduit constructs the UTP6AX0.5MRD with 24 AWG solid copper conductors rather than stranded wire, delivering lower insertion loss and superior return loss performance over the 1–500 MHz bandwidth. The U/UTP (unshielded twisted pair) design relies on precise pair geometry and tight twist ratios to achieve alien crosstalk margins that exceed TIA Category 6A limits by a comfortable safety factor, even when bundled in high-density 48-port switch environments. The 6.4mm (0.250") overall diameter strikes the critical balance between pathway fill ratio and bend radius compliance—tight enough to route through 1U cable managers without kinking, yet robust enough to maintain pair integrity through repeated reconnects. Both ends terminate in high-performance modular plugs with 50-microinch gold plating on the contact fingers, ensuring low contact resistance and long-term reliability in environments with hundreds of plug/unplug cycles per year. The cord ships wired to a universal pinout compatible with both T568A and T568B schemes, eliminating the guesswork when integrating with legacy installations or mixed-vendor infrastructure.

Half-meter patch cords occupy a specific role in modern data center architecture: they're the go-to length for switch-to-switch stacking, top-of-rack to spine uplinks in leaf-spine fabrics, and server NIC to TOR switch connections where the physical separation is under two feet. The red jacket aligns with TIA-606-C administration standards, commonly assigned to backbone or high-priority circuits—useful when you need instant visual confirmation that a given connection is carrying production traffic versus management or IPMI. The factory-applied RapidID barcode encodes a unique identifier that the RapidID mobile app reads via smartphone camera, automatically populating the MAC address, switch port, VLAN, and physical location into a centralized asset database. This is not a convenience feature—it's a time-saver that cuts post-deployment documentation from hours to minutes, and it becomes indispensable during after-hours troubleshooting when you're tracing a specific VLAN path through a multi-tier switching fabric. The tangle-free latch uses a flexible boot that snaps back into position after release, eliminating the hook-on-adjacent-cable problem that turns a simple port swap into a five-minute untangling exercise.

The UTP6AX0.5MRD meets PoE++ IEEE 802.3bt Type 4 specifications, safely delivering up to 90 watts over all four pairs without exceeding the conductor's thermal budget—critical when powering high-wattage access points, PTZ cameras, or VoIP phones in converged LAN deployments. UL 1863 and CSA C22.2 listings confirm compliance with North American safety standards, and the CM flame rating qualifies the cord for general building use in horizontal and riser pathways (consult local AHJ requirements for plenum or riser-specific applications). Panduit backs the TX6A line with a comprehensive applications assurance program covering 10GBASE-T Ethernet, data center I/O consolidation, server virtualization fabrics, and high-performance computing clusters—deployments where a single failed patch cord can cascade into multi-rack downtime. For integrators building or maintaining TIA-942 Rated-3 or Rated-4 data centers, this 0.5-meter red patch cord is a color-coded, barcode-enabled, standards-compliant building block that fits the structured methodology these installations demand.
