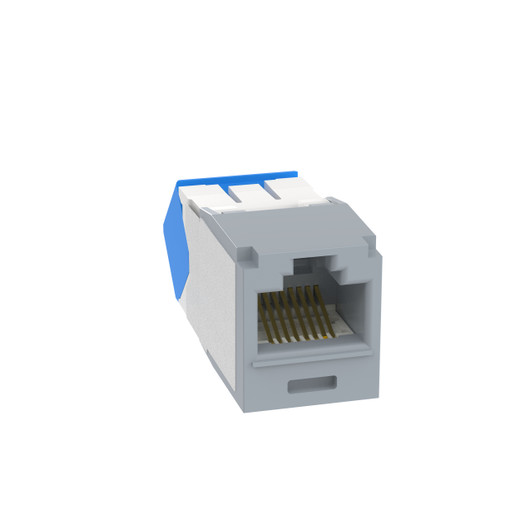

Panduit CJUD6X88TGIG Cat 6A TG Jack - International Gray

Panduit CJUD6X88TGIG Cat 6A UTP Mini-Com Modular Jack

The Panduit CJUD6X88TGIG is a Category 6A UTP RJ45 modular jack designed for high-density structured cabling installations where space constraints and cable management are critical. This Mini-Com module features a 45-degree angled, up/down orientation that improves cable routing in shallow wall boxes, furniture raceways, and patch panel environments. The TG-style tool-free termination eliminates the need for punchdown tools, reducing installation time and labor costs on multi-drop projects. Integrators deploying PoE++ surveillance cameras, access points, or VoIP endpoints gain a factory-tested, serialized jack that exceeds ANSI/TIA-568.2-D and ISO 11801 Category 6A channel requirements.

Key Features

• Category 6A UTP performance – exceeds ANSI/TIA-568.2-D and ISO 11801 component and channel requirements for 10GBASE-T transmission
• TG-style tool-free termination – eliminates punchdown tool requirement, reducing installation time and tool-related wire damage
• 45-degree angled up/down orientation – optimizes cable routing in shallow boxes and high-density panels, minimizing bend radius violations
• Supports 22-26 AWG solid or stranded conductors – compatible with standard plenum, riser, and general-purpose twisted-pair cables
• IEEE 802.3af/at/bt PoE++ support – rated for 2,500 mating cycles under Power over Ethernet Type 3 and Type 4 (up to 90W) load conditions
• Factory tested and serialized – every module ships with individual serial number for end-to-end traceability and automated test reports
• Mini-Com system compatibility – integrates with Panduit faceplates, surface mount boxes, and modular patch panels for unified aesthetics
• UL 2043 plenum rated – approved for air-handling spaces without additional enclosures
• RoHS compliant – meets EU and California restrictions on hazardous substances

The CJUD6X88TGIG uses Panduit's TG (twisted-pair termination geometry) contact design, which aligns conductors in a precisely engineered IDC slot that maintains pair twist and minimizes crosstalk. Unlike legacy 110-style terminations that require impact force and can crush conductors or crack insulation, the TG system seats wires with a simple press-and-click action. Each module undergoes automated performance testing at the factory for insertion loss, return loss, near-end crosstalk (NEXT), and alien crosstalk (ANEXT) across the full 1-500 MHz Cat 6A spectrum. The serialized test report creates an auditable record for compliance-driven installations—data centers, healthcare facilities, and government projects—where channel certification is contractually required. The 45-degree angled port orientation routes patch cords or horizontal cables upward or downward from the faceplate, reducing the depth required behind wall plates and allowing flush mounting in furniture raceway systems or shallow old-work boxes where standard 90-degree jacks would kink cables.

This module is engineered for Power over Ethernet deployments at the upper end of the IEEE 802.3bt Type 4 specification—90-watt camera housings with integrated heaters, pan-tilt-zoom mechanisms, and illuminators; Wi-Fi 6E access points with multi-radio architectures; and building automation controllers with relay outputs. The contact springs are rated for 2,500 insertion cycles under sustained PoE load, far exceeding the 750-cycle minimum in IEC 60603-7, which addresses the thermal and mechanical stress introduced by continuous 54V DC delivery. The international gray housing (RAL 7035 equivalent) provides a neutral finish for commercial office environments, while maintaining compatibility with Panduit's Mini-Com faceplate family—single-port, dual-port, and modular frames in white, electric ivory, black, and gray. Integrators can mix copper, fiber, HDMI, USB, and coax modules within a single frame for converged AV and IT rough-ins, simplifying material management and reducing faceplate SKU proliferation.

The CJUD6X88TGIG ships in 50-unit contractor packs, streamlining bulk orders for mid-rise office builds, university residence halls, and hospitality properties where hundreds of drops are terminated in a compressed schedule. Each module's laser-engraved serial number integrates with Panduit's Physical Infrastructure Manager (PIM) software for automated as-built documentation, MAC/inventory tracking, and warranty claim validation. For installations requiring plenum compliance, UL 2043 approval permits installation in drop-ceiling plenums and HVAC return-air pathways without conduit or additional fire-rated enclosures, reducing material and labor costs in retrofit scenarios. The RoHS-compliant construction eliminates lead, mercury, cadmium, and hexavalent chromium, meeting procurement requirements for LEED-certified buildings, California Proposition 65 compliance, and EU market access.
