Panduit UTP28X30 Cat 6A 28 AWG 30 ft Patch Cord

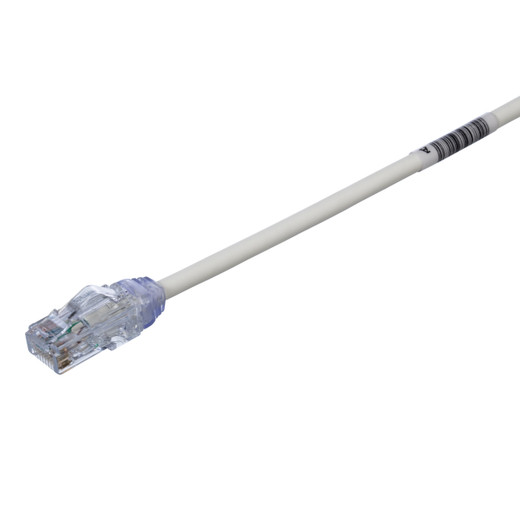

Panduit UTP28X30 Cat 6A 28 AWG UTP Patch Cord, 30 ft

The Panduit UTP28X30 delivers full Category 6A performance in a compact 0.185-inch diameter form factor — roughly 35% smaller than standard Cat 6A cables. This 30-foot patch cord uses 28 AWG solid copper conductors in a U/UTP configuration, meeting ANSI/TIA-568.2-D and ISO 11801 Class EA requirements across the entire 1–500 MHz spectrum while simplifying high-density cabinet installs. The TX6A-28™ series addresses two persistent problems in modern network builds: airflow restriction in packed enclosures and the physical strain of managing thick 23 AWG patch cords during adds/moves/changes. RapidID barcoding integrates with Panduit's port-mapping software for instant documentation, and the patented tangle-free latch prevents snags during pulls through vertical cable managers.

Key Features

• 28 AWG solid copper conductors — 0.185" diameter (4.7 mm), ~35% slimmer than standard Cat 6A for improved airflow and bend radius in high-density racks
• Full Cat 6A performance — exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA across 1–500 MHz, 100% tested for wire map, NEXT, and return loss
• Supports 10GBASE-T Ethernet and IEEE 802.3bt PoE++ (Type 3 and Type 4) — tested to 90W continuous power delivery for high-wattage PTZ cameras and access points
• Centered de-embedded plug with integral pair manager — maintains precise conductor geometry through the termination zone to minimize alien crosstalk
• Tangle-free latch design — low-profile release tab prevents snags on adjacent cables during installation and reduces thumb fatigue during bulk changeouts
• RapidID pre-installed barcodes — scan-to-document workflow eliminates manual port mapping errors in large switch fabrics
• CM/LSZH dual-rated jacket — meets NEC plenum-equivalent flammability limits and emits minimal smoke/halogens for mixed datacenter/commercial deployments

Panduit's TX6A-28 platform uses solid 28 AWG conductors rather than stranded wire, which allows tighter manufacturing tolerances on pair twist rates and NEXT performance. The centered de-embedded plug design positions all four pairs equidistant from the plug body centerline, reducing mode conversion that can degrade return loss above 400 MHz. An integral pair manager inside the plug boot maintains the factory twist pattern through the termination zone — critical when you're pushing 10 Gbps over copper. Each cord ships with factory test reports for wire map, near-end crosstalk, and return loss, and every plug is visually inspected for conductor seating before the boot is crimped. The 0.185-inch overall diameter translates to a 6 mm² cross-section versus ~12 mm² for typical shielded Cat 6A cables, which means you can fit roughly twice as many cables through a 2-inch horizontal cable manager before you start choking airflow. In a 42U cabinet with 10 Gbps fabric switches, that difference often determines whether you need active exhaust fans or can rely on passive convection.

The 30-foot length fits the majority of intra-rack and rack-to-rack connections in modern datacenter rows with 4-foot to 6-foot aisle spacing. For IP camera networks, this cable handles PoE++ Type 4 (802.3bt) at 90W continuous — enough for pan-tilt-zoom cameras with integrated IR illuminators and environmental heaters. The U/UTP construction (unshielded twisted pair) provides clean performance in environments with minimal EMI, and the CM/LSZH jacket rating meets both NEC Article 800 commercial building code and low-smoke requirements for occupied spaces or international projects. RapidID barcoding integrates with Panduit's free RapidID app: scan the cable at both ends during installation, and the software auto-populates your port map with switch port, patch panel position, cable serial number, and install date. In a 200-port edge switch deployment, that workflow saves 8–10 hours of manual spreadsheet entry and eliminates the "which cable goes where" troubleshooting calls six months later.

This patch cord exceeds ANSI/TIA-568.2-D Category 6A channel limits, meets IEC 60603-7 modular plug mechanical specs, and is UL 1863 listed (file E129886). It's RoHS compliant and wired to support both T568A and T568B schemes, so it integrates into existing horizontal cabling without polarity concerns. The tangle-free latch uses a low-profile ramp that deflects past adjacent cables rather than hooking on boots or zip ties — a small detail that matters when you're pulling 40 cables through a vertical manager on a time-limited maintenance window. If you're building 10 Gbps server fabrics, high-camera-count surveillance networks with PoE++, or any environment where cabinet density and airflow are design constraints, the TX6A-28 series delivers the same electrical performance as bulkier cables in a form factor that actually fits the install.
