Product Type:

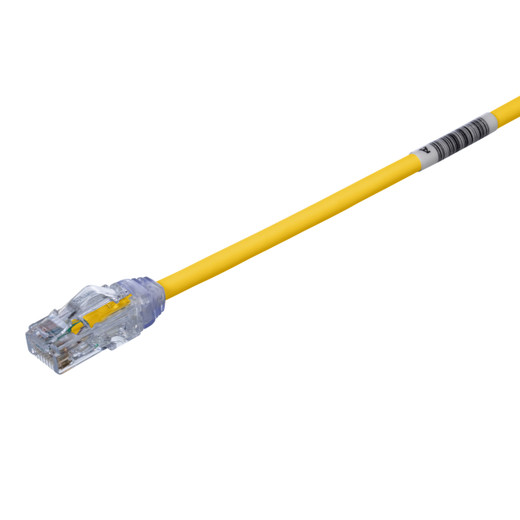

Cat 6A UTP Patch Cord
MPN:
UTP28X6INYL
Sub-Brand:
Pan-Net® TX6A-28™
Cable Construction:
U/UTP (Unshielded Twisted Pair)
Conductor Gauge:
28 AWG
Conductor Type:
Solid Copper
Overall Diameter:
0.185 in (4.7 mm)
Length:
6 inches (0.5 ft / 0.15 m)
Color:
Yellow
Connector 1:
RJ45 Modular Plug (8P8C)
Connector 2:
RJ45 Modular Plug (8P8C)
Bandwidth:
500 MHz
Performance Standard:
ANSI/TIA-568.2-D Category 6A, ISO 11801 Class EA
Flammability Rating:
CM/LSZH
PoE Support:
IEEE 802.3af/at/bt Type 3 & Type 4 (up to 90W)
Wiring Scheme:
T568A and T568B compatible
Special Features:
RapidID barcode, tangle-free latch, centered de-embedded plug, integral pair manager
Testing:
100% factory tested (wire map, NEXT, return loss)
Compliance:
ANSI/TIA-1096-A, IEC 60603-7, UL 1863, CAN/CSA-C22.2, RoHS
Package Quantity:
1 cord
Carton Quantity:
10 cords
UPC:
074983994292
Type:
Cat 6A Patch Cord
Connectivity:
RJ45 (8P8C)
Durability:
CM/LSZH Rated
Poe Power:
PoE++ (802.3bt)
Sub Brand:
Pan-Net®
Application:
(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing.
Length Ft:
0.5
Length M:
0.15
Carton Qty:
10
Package Qty:
1
Upc:
07498399429
Cable Category:
copper-systems
