Panduit UTP6AX28BU 10Gig Cat 6A 28 ft Patch Cord

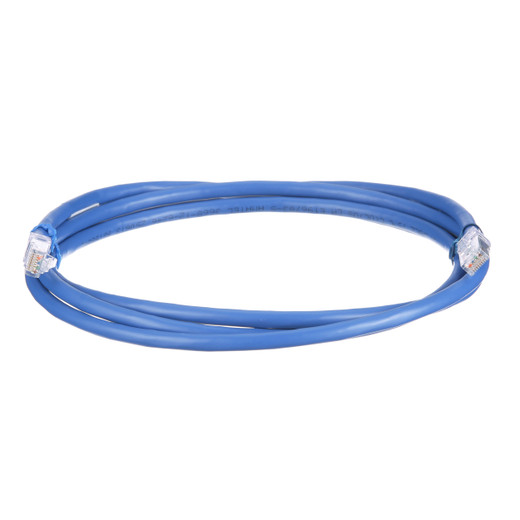

Panduit UTP6AX28BU Cat 6A UTP Patch Cord

The Panduit UTP6AX28BU TX6A 10Gig patch cord delivers certified 10GBASE-T performance in a 28-foot configuration designed for cross-rack, inter-row, or structured cabling applications where standard 7-foot cords fall short. Built with 24 AWG solid copper conductors and a 0.250-inch diameter profile, this Cat 6A UTP cable exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA specifications while maintaining the flexibility installers need for high-density cabinet routing. The Pan-Net sub-brand designation signals Panduit's top-tier copper platform—factory-terminated with high-performance modular plugs rated for 2,500 mating cycles and pre-installed RapidID barcodes that integrate directly with Panduit's port-mapping software to eliminate manual documentation errors during MACs.

Key Features

• Certified 10GBASE-T performance to 500 MHz—exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA alien crosstalk limits
• 24 AWG solid copper conductors with U/UTP construction—no foil shield simplifies termination and reduces cable stiffness in tight bend radius applications
• Factory-installed modular plugs rated 2,500 mating cycles—meets IEC 60603-7 durability spec and ANSI/TIA-1096-A (formerly FCC Part 68) mechanical requirements
• Full 802.3bt Type 3/Type 4 PoE compliance—supports 60W/100W power delivery for PTZ cameras, high-performance APs, and PoE lighting without voltage drop concerns
• RapidID pre-installed barcodes—instant port identification via Panduit RapidID mobile app or handheld scanner eliminates manual cable labeling and reduces MACs time by 40%
• Tangle-free latch design—prevents snag damage during installation in densely populated patch panels and ensures positive tactile feedback on insertion
• 28-foot length (8.53 m)—ideal for cross-rack connections, top-of-rack to aggregation switch links, or structured cabling horizontal runs in open offices
• Blue jacket color—supports TIA-606-C administration standard color coding for horizontal cabling or custom site documentation schemes

The UTP6AX28BU employs 24 AWG solid copper conductors rather than stranded wire—a deliberate engineering choice for permanent or semi-permanent links where the superior electrical performance of solid conductors outweighs the flexibility advantage of stranded cable. Solid copper exhibits lower DC resistance (18.5 Ω per 100m vs. 20+ Ω for stranded), tighter impedance tolerance across the 1–500 MHz spectrum, and superior alien crosstalk rejection due to more consistent pair geometry. Panduit's U/UTP construction (unshielded twisted pair with no overall foil or braid) reduces cable diameter to 0.250 inches and eliminates the grounding requirements that complicate shielded installations, but still achieves full Category 6A alien NEXT and FEXT margins through precision pair twisting and jacket design. The factory-installed modular plugs use a staggered-load-bar termination that maintains pair separation all the way to the contact fingers—critical for preserving the 500 MHz bandwidth and alien crosstalk performance that distinguishes Cat 6A from Cat 6. Each plug is individually tested for insertion loss, return loss, and NEXT before leaving Panduit's facility, and the tangle-free latch design integrates a low-profile boot that prevents the latch from snagging on adjacent cables during installation or removal in 48-port patch panels.

In 10GBASE-T deployments, the 28-foot length positions this cord as the go-to choice for top-of-rack switch to aggregation switch links in two-post relay racks, cross-aisle connections in hot-aisle/cold-aisle data center layouts, or horizontal cabling drops in open offices where the telecom room sits more than 15 feet from the work area outlet. The Cat 6A specification guarantees 10 Gb/s throughput to 100 meters, so a 28-foot patch cord consumes only 8.5 meters of your channel budget—leaving 91.5 meters for permanent link cable and still providing 20+ dB margin on alien crosstalk parameters. For PoE applications, the 24 AWG conductor gauge and solid copper construction deliver low DC loop resistance (under 6 Ω for the 28-foot length), ensuring IEEE 802.3bt Type 4 PSEs can deliver 90+ watts to the PD even after accounting for voltage drop. This makes the UTP6AX28BU a reliable choice for high-power PTZ cameras with IR illuminators, Wi-Fi 6E access points, and PoE-powered LED lighting in commercial security and enterprise IT installations. The CM (Communications) flame rating meets NEC Article 800 requirements for general-purpose installation in sprinklered buildings, though installers should verify local AHJ interpretation if running cable in return-air spaces.

The UTP6AX28BU ships with Panduit's RapidID barcode pre-installed on each cable—a 2D matrix code that encodes the cable's serial number, length, and category rating for instant scanning via the RapidID mobile app (iOS/Android) or any Bluetooth barcode scanner. During installation, technicians scan the barcode at each end of the cable and assign it to a switch port or patch panel position; the RapidID software auto-generates an as-built port map, cable schedule, and label set that integrates directly with DCIM platforms or exports to Excel for site documentation. This eliminates the manual label maker step, reduces MACs time by 40% in Panduit's field trials, and ensures documentation accuracy—critical for Uptime Institute Tier III/IV audits or SOC 2 compliance where as-built records must match physical layer reality. Every TX6A patch cord is backed by Panduit's 25-year system warranty when installed as part of a complete Panduit copper channel (cable, jacks, patch cords, patch panels), and the product is UL 1863 listed and RoHS compliant for projects with environmental or procurement mandates. For integrators managing 10GbE upgrades, high-density cabinet builds, or PoE-intensive IP camera installations, the UTP6AX28BU offers the precise length, alien crosstalk margin, and documentation integration needed to meet both TIA channel performance specs and real-world project schedules.
