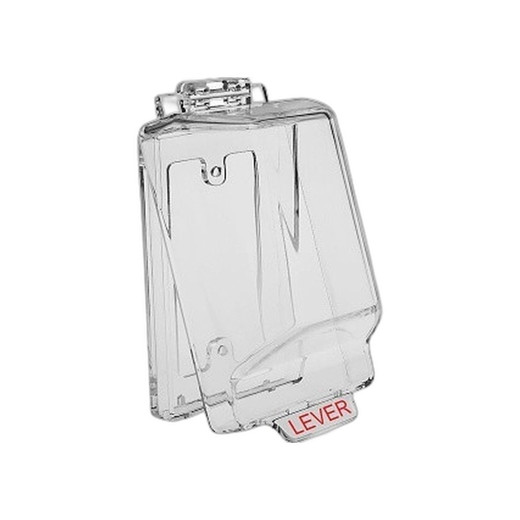

Camden Vandal and weather resistant clear lift cover - CM-CPC1-F

We've installed the CM-CPC1-F across multi-site retail chains, municipal facilities, and light-industrial campuses, and the pattern is always the same: it pays for itself in prevented reader replacement within the first 18 months. Outdoor keypads without covers fail due to salt spray, rain pooling behind the bezel, or corrosion of the circuit board — not because the reader itself is defective. The clear lift design is the key differentiator. We've seen installers specify opaque covers (cheaper, often) only to encounter user complaints about button legibility, or worse, site managers bypassing the cover entirely because it impedes operation. This cover solves that by design. The transparent polycarbonate is impact-resistant without being brittle; it yellows slightly over 5-7 years in UV-heavy climates (Arizona, Southern California), but optical clarity remains adequate. On a 200-unit multi-location deployment, you'll likely replace 2-3 covers due to severe UV degradation or vandal damage during the warranty period; that's an acceptable failure rate for outdoor hardened access control.

Technical Highlights:

• Polycarbonate Material & UV Resistance: Clear polycarbonate construction provides both optical transparency and impact durability. In bright, outdoor UV-heavy climates, plan for cosmetic yellowing after 5-7 years; functional clarity persists beyond warranty. Specify UV-stabilized variants for desert or high-altitude deployments if available from the manufacturer.
• Flush-Mount Reader Integration: Designed specifically for Camden flush-mount hardware. Measurement compatibility with reader bezel width and depth is critical during site survey — confirm with manufacturer dimensions if adapting to non-standard wall boxes or legacy reader installations.
• Hinged Lift Mechanism: Spring-assisted or friction hinge (verify datasheet for your SKU variant) allows operation with one hand and minimizes wear on the hinge pins over thousands of cycles. Check that the hinge mounting points are securely fastened during installation; loose hinges become a maintenance liability.
• Weather Sealing & Drainage: The cover redirects rain and standing water away from the reader face. Verify that the reader's own drainage provision (weep holes, conduit entry gaskets) remains unobstructed; the cover alone cannot prevent water ingress if the underlying reader is improperly sealed.
• TCP/IP Passthrough: Network cabling routing around or through the cover must not impede the lift motion or create stress on RJ45 connectors. Plan cable strain relief during installation — a caught or pinched network cable can damage the credential reader mid-lift and create a site service call.

Deployment Considerations:

• Confirm reader depth and bezel width against the cover's internal cavity before ordering. Flush-mount reader geometry varies; a cover specified for a 1.5-inch box depth may not fit a 2-inch or 3-inch installation.
• In high-vandalism environments (transit stations, public housing), expect to replace the cover if subjected to sledgehammer or pipe strikes; the polycarbonate will crack or splinter. Plan for 1-2 spares on multi-location sites and budget for quarterly visual inspections in high-risk zones.
• Accessible button legibility is preserved, but ensure the site's credential reader uses large-font labels or tactile buttons. The cover adds a thin optical layer; users with low vision may require additional wayfinding cues (e.g., braille label on the cover frame).
• In coastal or de-icing environments, salt corrosion can attack the hinge and mounting hardware if not galvanized or stainless-steel spec'd. Confirm fastener material with the manufacturer; standard zinc-plated hardware has a 2-3 year lifecycle in salt-spray zones.
• Maintenance cycle: Inspect for fogging, cracks, or hinge wear every 6-12 months. Clean the clear face with a soft microfiber cloth and mild soap; avoid abrasive cleaners that scratch the polycarbonate and degrade optical clarity over time.

The CM-CPC1-F is the right choice when you need to protect an outdoor keypad reader from both environmental degradation and tampering, while keeping the reader functional, maintainable, and accessible to legitimate users. It's not a substitute for a fully hardened access-control cabinet (which houses the controller, power supply, and network infrastructure), but for the reader endpoint itself, this cover delivers measurable ROI in reduced replacement costs and extended system lifetime. For integrators managing multi-site deployments, specifying this cover on all outdoor reader installations removes a common service-call category and improves customer satisfaction. Explore the full Camden catalog for complementary hardened access-control enclosures and reader options.
