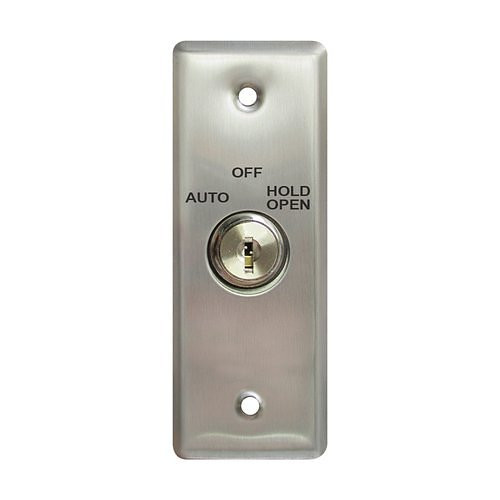

Camden CM-1070 Surface Mount Key Switch SPDT
The Camden CM-1070 is a surface mount key switch designed for access control circuits requiring manual override, emergency activation, or hardwired failsafe control. The SPDT (Single Pole Double Throw) contact configuration supports both momentary and maintained switching modes, enabling flexible wiring into door strikes, electromagnetic locks, solenoid-driven gates, and overhead door operators. Rated 30VDC with color-coded soldered leads and heat-shrink sleeves, it integrates directly into standard access control panels and strike management circuits without credential reader infrastructure — purely mechanical key-operated control restricts activation to authorized personnel only.
Key Features
- SPDT Momentary & Maintained Contact: Single switch operates in both momentary (press-to-activate) and maintained (toggle-lock) modes. Dual-mode flexibility eliminates the need for separate momentary and maintained switches in mixed-use access control designs.
- 30VDC Rated: Direct compatibility with standard access control power supplies and strike circuits. Works with electromagnetic locks, electric strikes, solenoid operators, and relay-driven systems without additional step-down transformers.
- Surface Mount Aluminum Construction: 1/4" thick die-cast aluminum faceplate with tamper-proof mounting screws. Weather-resistant rubber gasket rated for both indoor and outdoor installations without external enclosure.
- Mortise Cylinder Compatibility: Accepts universal 1", 1 1/8", and 1 1/4" mortise cylinders. Flush-mounted cylinder with built-in locators prevents rotation — no set screws required, simplifying installation and reducing loose-hardware maintenance calls.
- Soldered Leads with Heat-Shrink Protection: 18 AWG color-coded leads with heat-shrink sleeves prevent accidental contact shorts during panel wiring and reduce field troubleshooting time on integration jobs.
- No Credential System Dependency: Hardwired mechanical key control — eliminates access control software integration complexity, card reader batteries, and credential enrollment overhead. Works standalone or as manual backup in hybrid installations.
- Brushed Aluminum Finish: Corrosion-resistant powder coat suitable for damp, salty, or chemically treated environments common in industrial and coastal facilities.
The CM-1070 operates independently of any credential system or networked access control infrastructure. It serves as a pure mechanical failsafe mechanism — ideal for emergency egress override, manual gate activation, or hardwired strike control on standalone door hardware. The key-operated design ensures only authorized personnel can trigger the switch; key custody replaces digital audit logs and access codes, which is precisely what many end-users demand for critical manual control points.
Installation is straightforward: surface mount only (no flush recesses required), with a 1.5" minimum radial clearance recommended for smooth key insertion and rotation. The aluminum faceplate and gasket assembly weatherproof the switch against rain, dust, and hose-down cleaning without external backbox or NEMA enclosure — reducing installation time on outdoor pedestals or wall-mounted strike panels. Mounting template and tamper-proof hardware included. The cylinder sits flush with built-in locators, preventing rotation during operation and eliminating the need for adjustment screws or rework.
Because the CM-1070 is a pure mechanical switch with no electronics, power supply, or communication protocol, it becomes the fallback control point in multi-layered access designs. Pair it with a networked card reader or keypad on the same strike circuit, and the key switch serves as silent backup if the reader loses power or connectivity. Total cost of ownership remains low: no annual credential licenses, no reader batteries, no firmware updates, and minimal training overhead beyond basic key security discipline.
Compatible with any 30VDC access control system, electric strike panel, or solenoid operator. Supports electromagnetic locks, overhead door operators, and relay-driven gate actuators. The SPDT contact logic plays well with standard momentary and maintained relay circuits, making field integration straightforward for integrators working across multiple VMS and controller brands. Brushed aluminum resists corrosion in industrial, parking garage, and coastal environments; optional custom color finishes available for aesthetics or wayfinding.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
We've installed the CM-1070 across multiple deployment scenarios — parking garage manual gates, emergency egress overrides on high-traffic doors, and hardwired failsafe controls on outdoor electric strikes. What differentiates this switch from electronic readers is precisely its simplicity: it has no network dependency, no credential database, no battery drain, and no firmware quirks. When a facility manager needs to trigger a gate or unlock a door without touching a keypad or swiping a card, the CM-1070 is the control point. It's not a primary access credential device; it's the mechanical backbone of emergency and maintenance operations.
The SPDT dual-mode (momentary and maintained) design eliminates a common site-problem we see repeatedly: integrators building separate circuits for maintained gate control and momentary door-strike override. With the CM-1070, one switch wired into a relay or strike board serves both use cases, depending on how the end-user holds or toggles the key. That flexibility cuts panel real estate, reduces wiring complexity, and makes troubleshooting faster when a field tech needs to trace a circuit at 2 a.m.
Technical Highlights:
- 30VDC Rated, SPDT Contact: Handles both momentary pulse and maintained-contact switching in a single assembly. The 30VDC standard matches 95% of legacy and modern access control power supplies — no voltage conversion required, minimal panel integration cost.
- Mortise Cylinder Universal Fit (1", 1 1/8", 1 1/4" bores): Accepts off-the-shelf commercial mortise cylinders — you're not locked into proprietary blanks or waiting for backorder specialty parts. Swap cylinders on-site without replacing the entire switch housing.
- Soldered Leads + Heat-Shrink: Factory-terminated wiring with color-coding and heat-shrink sleeves eliminates field crimping and solder-joint cold-solder failures we've debugged countless times on panel installations. Grab the leads, verify continuity on your meter, and terminate in the relay or strike board — done.
- Aluminum Faceplate + Rubber Gasket (Weather-Rated): No external NEMA box required. The gasket and faceplate seal out rain and dust on outdoor pedestals or wall-mounted strike panels. One less enclosure cost in a 200-door campus job.
- No Electronics, No Power Consumption: Purely mechanical — zero standby current, zero network traffic, zero firmware to update. If your facility loses AC power or network connectivity, the key switch still works. That's why we spec it as manual override on critical doors.
Deployment Considerations:
- Surface mount only — no flush-mount option. Plan mounting location before ordering; ensure 1.5" minimum radial clearance around the cylinder for key insertion and rotation. Outdoor pedestal or wall-mounted strike panels work fine; panel-mounted control cabinets may require recessing a backbox if clearance is tight.
- Key custody replaces digital audit trails. There is no access log, no event record, no way to know who used the key or when — only a mechanical switch closure. If your compliance or liability posture requires per-event logging, pair the CM-1070 with a monitoring relay or gateway that can timestamp contacts electronically.
- Mortise cylinder keying is a separate order — switch assembly ships without the cylinder. Source keying strategy before installation: master-key system, individual keys, or restricted keyway (ASSA, Medeco, etc.). Cylinder availability impacts project timeline on custom keying requests.
- Wire termination is soldered leads with color-coded heat-shrink — not screw terminals. Verify wire gauge and solder joint quality before panel closure. If you're accustomed to screw-terminal readers, adjust your termination checklist accordingly.
- SPDT contact rating is appropriate for low-current solenoid and relay coils (<1A typical). Do not drive high-current DC motors or high-wattage loads directly through the switch; use an intermediate relay on the strike board. Always verify load current against the datasheet before final wiring.
The CM-1070 is the right choice for facilities that need hardwired, key-operated control with zero dependency on access systems, cloud connectivity, or credential readers. Parking facilities, industrial gates, emergency overrides, and maintenance failsafes are textbook deployments. If your end-user wants per-event logging or integration with a VMS audit trail, acknowledge the limitation upfront and design a relay-based monitoring circuit. For teams standardizing on mechanical manual control across multiple properties, the universal mortise fit and dual-mode contact make this a no-brainer cabinet component. See the Camden catalog for other hardwired access control hardware.
