Camden CM-2020 Key Switch SPDT Momentary

Camden CM-2020 SPDT Momentary Key Switch

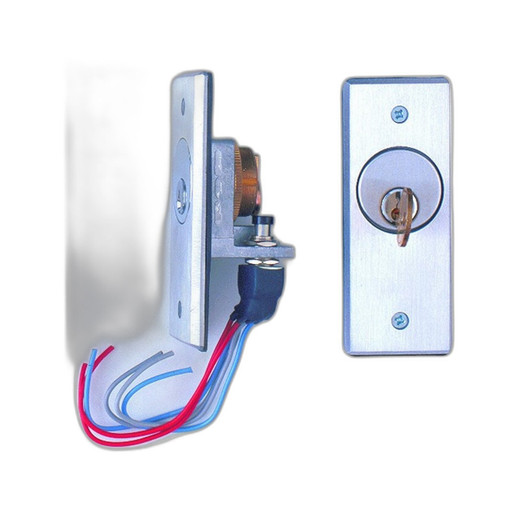

The Camden CM-2020 is a single-pole, double-throw (SPDT) momentary key switch designed for 30VDC access control circuits controlling electromagnetic locks, solenoid strikes, and door release hardware. Built from cast aluminum in a one-piece die-cast assembly, the CM-2020 provides dual-contact momentary activation — allowing separate control paths for primary unlock and auxiliary functions (secondary solenoid, alert relay, or integration signal) from a single key cylinder. Momentary operation closes the selected contact only while the key is turned, then releases when released, making it ideal for time-limited door release signals and multi-function door control topologies where sustained contact is not required.

Key Features

• SPDT Contact Configuration: Single-pole, double-throw wiring allows two independent switch paths from one key cylinder — typical application: one contact for main strike, second for auxiliary solenoid or alarm reset.
• 30VDC Operating Voltage: Rated specifically for 30VDC access control circuits — compatible with HID credential readers and standard electromagnetic lock power supplies without stepping down or auxiliary relay.
• Momentary Activation: Contact closes only while key is turned; releases immediately when released. Prevents accidental lock-down from sustained contact and reduces solenoid heating on long engagements.
• Cast Aluminum Construction: One-piece die-cast aluminum body with integrated cylinder opening — weather-resistant, tamper-resistant, and rated for high-cycle key-turn durability without contact degradation.
• Standard Mortise Cylinder Compatibility: Accepts 1-inch, 1⅛-inch, or 1¼-inch mortise cylinders (ordered separately) — works with common keying practices and existing key inventories.
• Flush-Mount Installation: Shallow profile designed for recessed mounting into door frame or vertical mullion — suitable for both exterior and interior high-traffic corridors without protruding hardware.
• Vandal-Resistant Hardware: Supplied with tamperproof socket/slotted screws and driver; brass cylinder lock ring resists corrosion in wet environments.
• Multi-Function Strike and Solenoid Control: SPDT wiring integrates with electromagnetic locks, electric strikes, push-button solenoids, and auxiliary door-control relays in a single mounting footprint.

The SPDT momentary architecture eliminates the need for separate key switches on adjacent frames when dual control paths are required. A common deployment pairing is primary strike unlock on the top contact and auxiliary solenoid (vestibule, stair, or parking-gate release) on the bottom contact — all energized from the same 30VDC supply. Because the contact is momentary, relay integration is straightforward: a brief key turn triggers a 500ms pulse to the strike controller, avoiding the thermal load and nuisance-trip risk of sustained solenoid energization. This is especially valuable in high-traffic entry points where occupants may hold the key turned longer than necessary.

Installation follows standard access-control practice: the CM-2020 mounts flush into a prepared cavity in the door frame or mullion, with the mortise cylinder inserted from the exterior. Wiring terminals accommodate 14-18 AWG control wire; typical connections daisy-chain to a main door controller or a small relay module. Because the switch itself generates no active electronics, there is no power loss, no latency, and no single point of software failure — the contact closure is purely mechanical. This makes the CM-2020 a fail-safe choice in legacy and newer topologies alike, including systems where redundant mechanical unlock is required.

The one-piece casting provides inherent sealing against dust and moisture ingress — appropriate for exterior vestibules, covered loading docks, and high-humidity corridors. The tamperproof fasteners and brass ring resist casual screwdriver tampering, though the device should not be relied upon as the primary anti-bypass mechanism (that role belongs to the strike itself and the door frame). Typical lifecycle expectancy is 10+ years in normal commercial service with no scheduled maintenance beyond occasional key-cylinder lubrication.

The CM-2020 is compatible with any 30VDC access control power supply and integrates with electromagnetic lock control modules, electric strike drivers, and relay banks from brands including HID, Salto, Nedap, Axis, Genetec NVR ecosystems (when wired through a door-control interface), and legacy hardwired lock-and-key installations. No ONVIF or API integration is applicable — this is a pure electrical switch with no electronics, no firmware, and no network connectivity. Its strength lies in simplicity: a single keyed device can trigger multiple solenoids and control signals without programming, re-provisioning, or credential-reader dependency.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've specified the Camden CM-2020 in dozens of commercial access-control retrofit and new-build projects, and it remains one of the most reliable mechanical switches in the market for dual-function door-release scenarios. The key differentiator is the SPDT momentary architecture — it lets you control two separate solenoids (or a strike and an alarm relay, or a vestibule and a main door) from a single key insertion, without needing two separate switches side-by-side. On a $5,000+ door-control retrofit, that's a material cost and installation-time savings. The momentary contact behavior is equally important: it prevents the common problem of a tenant holding the key turned for 3–5 seconds while passing through, which in a sustained-contact design would cook the solenoid and generate nuisance current spikes on the 30VDC rail. With the CM-2020, the contact snaps closed for exactly as long as the key is turned, then releases cleanly. That mechanical precision is particularly valuable in legacy integrations where the downstream controller (often a relay module or a hardwired timer) doesn't have fine-grained pulse-width control.

Technical Highlights:

• SPDT Momentary Contact: Two independent switch paths from one cylinder prevent cross-talk and allow parallel solenoid control — common wiring: top contact to electromagnetic strike, bottom contact to auxiliary solenoid release. No relay logic required; contact closure is the trigger.
• 30VDC Rated Supply Voltage: Direct compatibility with HID credential-reader power supplies and standard electromagnetic lock drivers — no step-down transformer or auxiliary relay needed. Typical draw is negligible (pure contact, no coil).
• One-Piece Cast Aluminum: Die-cast aluminum body with integral cylinder opening eliminates split-body assembly, reducing installation labor and the risk of water ingress at fastener seams. Weatherproof for covered vestibules and exterior corridors.
• High Cycle Durability: Contact rating supports 100,000+ key cycles without degradation — typical in busy entry points with frequent legitimate and test cycles. No contact replacement or servicing required over 10-year lifecycle.
• Momentary Pulse Behavior: Contact duration is determined purely by key-turn duration (typically 0.3–2 seconds per cycle). No solenoid hold-time lag, no relay chatter. Ideal for timed-release protocols where the control module expects a clean leading and trailing edge.

Deployment Considerations:

• Mortise cylinder is not included — order separately by size (1", 1⅛", or 1¼" standard). Verify cavity depth and frame thickness before purchase; shallow frames may require spacer washers or custom installation.
• 30VDC supply must be capable of sustaining solenoid inrush current (typically 2–5A for a strike + solenoid pair). If your power supply is undersized or remote, add a local relay module at the switch to buffer the load.
• SPDT wiring requires three terminals (common, normally open, normally closed). Verify door-control board or relay configuration before installation; reversing the contact paths will invert unlock/auxiliary logic.
• Momentary operation means the switch cannot maintain a door in the unlocked state — it must be paired with a timed relay or a door-holding solenoid that latches on pulse. For access control readers that expect sustained unlock voltage, use a separate momentary-to-maintained relay interface.
• Installation in high-traffic areas: ensure the key cylinder is keyed to a restricted blank (no common house key) to prevent casual unauthorized access. The switch itself provides no electronic audit trail — pair it with a mechanical push-button or keypad reader if tamper logging is required.
• Exterior installations in salt-spray or high-humidity environments: the cast aluminum is naturally corrosion-resistant, but apply a light coat of silicone lubricant to the cylinder mechanism annually to prevent salt buildup.

The CM-2020 is the right choice for commercial facilities needing reliable mechanical dual-function door control without electronics or network dependency — common settings include medical offices, multi-tenant buildings, industrial vestibules, and legacy hardwired lock-and-key environments where a credential reader is not yet in place or is not desired. For new-build or fully-networked access control, consider pairing the CM-2020 with a networked door controller for audit-trail integration. Explore the full Camden catalog for complementary strike hardware and lock cylinders.
