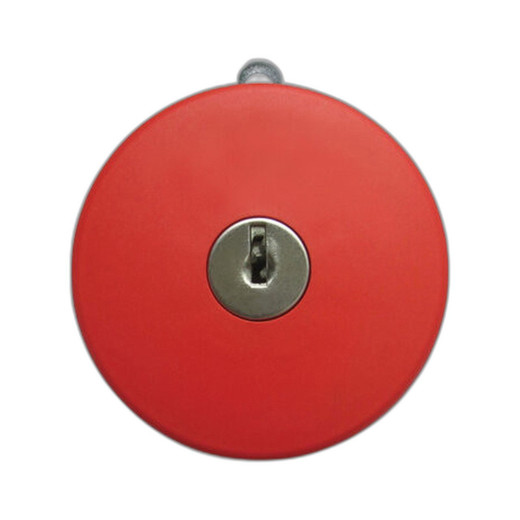

Camden Red Push To Lock Key To Release N/O \& N/C - CM-6050

We've deployed the CM-6050 across hundreds of commercial access control installations — government offices, financial institutions, data centers, and healthcare facilities. The core appeal is simplicity and reliability: it's a passive electromechanical solenoid with no smart logic, no firmware updates, no IP connectivity. That means zero integration risk and zero downstream firmware surprises. The push-to-lock / key-to-release topology is the industry standard for mid-tier security applications where you need fail-safe compliance but don't want to overspec for high-security credential readers or multi-factor authentication. Where the CM-6050 shines is in retrofit work — older buildings with legacy hardwired panels that can't support modern networked access control. You drop this strike in, wire it to the existing solenoid control relay, and you're done. The dual N/O and N/C contacts mean you can hang intrusion detection, exit request confirmation, or badge-reader state logic on the same strike without adding intermediate relay boards.

The real-world gotchas are voltage noise and mechanical fatigue. If your power supply is shared with other solenoids (magnetic locks, door holders, etc.), voltage sag during simultaneous unlock events can cause the CM-6050 to chatter or fail to fully engage the bolt. We always recommend a dedicated 30VDC supply for high-traffic entry points, or at least a local capacitor bank near the strike to absorb inrush current. On doors that see 50+ unlock cycles per day (lobby entries, server-room ingress), the solenoid armature will fatigue within 2–3 years; budget for replacement if the strike is mission-critical. The key-to-release override is mechanically robust, but the key itself is a single point of failure — we've seen integrators lose override keys on job sites. Keep a spare on-site and rotate it into your emergency procedures documentation.

Technical Highlights:

• 30VDC Solenoid Duty Rating: Engineered for continuous low-duty-cycle operation (unlock on command, then hold locked). Not rated for 100% solenoid-on applications — if you need the strike energized to hold it open, use an electric latch or magnetic lock instead. Verify your control panel's timing logic — if unlock pulses are longer than 500ms, thermal stress on the solenoid will shorten service life.
• SPDT Relay Contact Configuration: The normally open and normally closed contacts are electrically isolated and switch at the same instant. This allows you to monitor strike state (door locked vs. unlocked) using the N/C contact in a hardwired security loop, while the N/O contact feeds your access control panel's unlock signal. Don't wire both contacts to the same 30VDC supply — you'll create a short.
• Shielded Wiring Over 25 Feet: Solenoid coil switching generates EMI spikes that propagate up power and signal lines. If your control panel is more than 25 feet from the strike and you're experiencing false locks or unlock failures, the first troubleshooting step is to replace unshielded cable with twisted-pair shielded wire and verify ground continuity at both the panel and the strike enclosure.
• Key-to-Release Override Compliance: Provides manual emergency egress without power — fire code requirement in occupied spaces. The override is entirely mechanical; no battery backup or external power needed for escape. Test it monthly as part of your emergency egress drill.
• Fail-Secure vs. Fail-Safe Wiring: Use the N/C contact in your fail-safe chain to ensure the door unlocks if power is lost or if the control panel loses 30VDC supply. In high-security applications, verify that loss of 30VDC triggers an alarm on your building management system — an unpowered strike is a silent security failure if no one is watching the input.

Deployment Considerations:

• 30VDC power supply must be rated for solenoid duty with adequate inrush current capacity (typically 2–3× continuous rating). Using a regular 30VDC regulated supply without solenoid-rated filtering will cause voltage sag and inconsistent strike engagement.
• The strike enclosure is field-mounted in the door frame cavity or adjacent wall. Ensure adequate airflow around the solenoid coil if the installation is in a tight wall cavity; coil temperature will rise under continuous duty and may trip internal thermal protection.
• Door-frame reinforcement is critical in high-traffic areas. The impact force of the solenoid bolt engaging the keeper plate will eventually crack unreinforced wood frames or loosen mounting hardware. Specify heavy-duty keeper plates and consider adding a strike box or reinforcement frame if the door sees more than 30 unlock cycles per day.
• Cable routing from control panel to strike should be in conduit or cable tray, separate from AC power and data cabling. A loose solenoid wire next to an AC feeder is a classic source of false unlock signals.
• The key-to-release mechanism is a single mechanical lock — once the key is lost, you have no emergency override and must remove the strike from the field or drill out the lock cylinder. Store the spare key in a separate secure location from the primary key, and document the key ID in your asset register.

The CM-6050 is purpose-built for integrators who are upgrading legacy hardwired access control or installing straightforward fail-safe entry points in low-to-medium security environments. It's not the right choice for high-frequency credential readers, multi-door electronic entry vestibules, or cloud-managed access systems. If your client is deploying a modern networked access control platform (Salto, Genetec, HID, etc.), specify a networked electric strike or magnetic lock with API integration instead. For traditional hardwired panels and retrofit work, the CM-6050 is the standard choice. See the Camden catalog for complementary strikes, latches, and hardware integration options.
