Camden CX-MA0613D L & Z Bracket for Double Door 600 lb Magnetic Lock
Overview

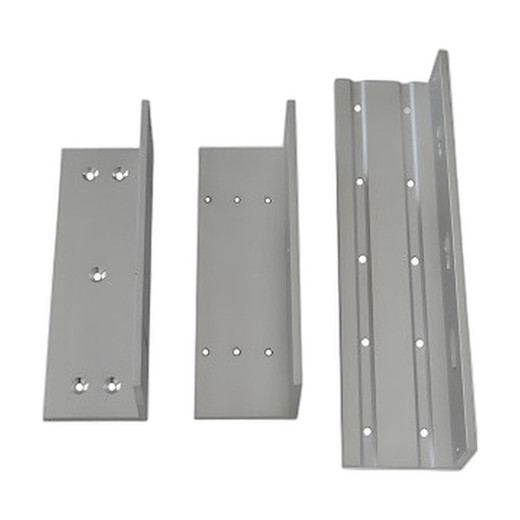

The Camden CX-MA0613D is an L & Z bracket assembly engineered for coordinated double-door magnetic lock installations rated at 600 lbs holding force. This bracket solves the structural alignment problem in paired-door access points where you need simultaneous locking on both leaves — typical in server rooms, secure vaults, or emergency exits requiring coordinated egress control. The bracket mounts to frame members and provides the mechanical interface for 24VDC magnetic locks operating on standard access control circuits.
Compatibility
The CX-MA0613D integrates with Camden 600 lb magnetic lock series compatible with double-door frame geometry. It is designed for installations where both door leaves must be locked or released together via a single access control signal. The bracket works with 24VDC magnetic lock circuits and standard access control relay outputs. Confirm frame depth and door swing direction (left/right configuration) with your frame supplier before ordering — the L & Z geometry is specific to paired-opening geometry and cannot be field-modified.
Installation Notes
Mount the bracket to the frame header or mullion using lag bolts or frame-grade fasteners rated for the 600 lb shear load. Ensure both bracket arms are level and parallel before final tightening — misalignment introduces binding and reduces holding force. 24VDC wiring runs from your access control board to the magnetic lock coils; observe polarity and use surge-protected circuits to prevent coil damage from door-slam transients. Verify clearance between the armature plate and magnet body at full door swing to avoid impact wear.
