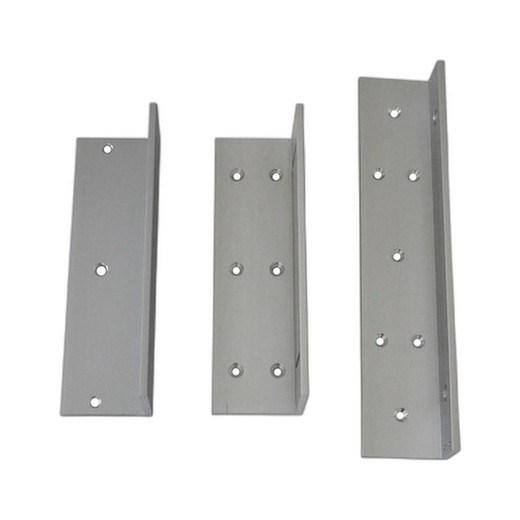

Camden CX-MA0613 L & Z Bracket for 600 lb Magnetic Lock

Overview

The CX-MA0613 is an L & Z bracket assembly designed to mount 600 lb capacity magnetic locks to standard door frame geometries. This bracket provides the mechanical anchor point between the electromagnetic lock body and the door frame, ensuring the holding force transfers cleanly to the structure. Typical deployment: securing access doors in commercial facilities, server rooms, and secure storage where a 600 lb strike is specified and frame geometry requires both horizontal (L) and vertical (Z) orientation support.

Compatibility

The CX-MA0613 is designed for Camden's 600 lb magnetic lock series. Verify your specific lock model against the bracket before ordering — not all magnetic lock capacities use the same bracket footprint. This bracket is compatible with standard steel and aluminum door frames where the L & Z geometry aligns with the frame profile. Check your lock manufacturer's documentation to confirm bracket compatibility with your exact strike model.

Installation Notes

Mount the bracket using fasteners appropriate to your frame material (typically 3/8" bolts for steel frames). Ensure the bracket is fully seated and all fasteners are tight before energizing the magnetic lock circuit. The bracket itself is passive (non-electrical) and does not require power connections. Verify door frame rigidity before installation — a loose frame will prevent the magnetic lock from achieving rated holding force regardless of bracket quality. Allow adequate clearance between the bracket and the door edge to prevent binding.

What's in the Box

• 1x CX-MA0613 L & Z bracket assembly
