Camden CX-MA1213-BK L & Z Bracket for Magnetic Lock

Overview

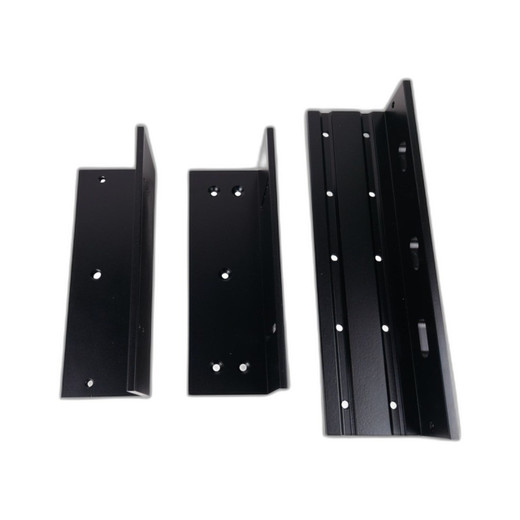

The Camden CX-MA1213-BK is an L & Z mounting bracket engineered for 1,200 lb. capacity magnetic locks in access control door installations. Finished in all-black, this bracket provides the structural foundation for fail-safe or fail-secure magnetic locking on commercial and institutional entry points. It accommodates the Camden CX-91 series magnetic locks (CX-91S-12 surface-mount and mortise-mount variants) and integrates directly into 24VDC access control power distribution — meaning you size your power supply once and the bracket handles the mechanical load, not the electronics. Use this when a single door swing requires heavy-duty electromagnetic holding power without additional frame reinforcement.

Compatibility

This bracket is designed for the Camden CX-91 series 1,200 lb. magnetic locks, including both surface-mount (CX-91S-12) and mortise-mount (CX-91M-12) configurations. It supports flexible installation angles via the L & Z geometry, allowing you to mount on metal door frames, wooden frames, or reinforced glass door assemblies. The bracket works with standard access control systems powered by 24VDC supplies (12VDC operation also supported on the locks themselves, but verify your power budget). Compatible with door status switches and timer/sensor modules (TDS/TLS options) integrated into the magnetic lock itself — the bracket is passive and does not interrupt electrical signals. Confirm your frame material and lock mounting orientation before ordering; Camden supplies mounting templates with locks, but this bracket requires pilot holes drilled to specification.

Installation Notes

Mount this bracket using the hole pattern from the Camden magnetic lock mounting template — typically supplied with each CX-91 series lock. Torque fastener specifications come directly from the lock's installation guide; over-tightening can crack the bracket or strip threaded inserts in the lock body. Ensure the L & Z orientation matches your door swing direction (inbound vs. outbound push/pull). The all-black finish is powder-coat; do not use abrasive tools or harsh solvents during installation, as they will mark the surface. No field wiring is required on the bracket itself — all power and signal connections terminate at the lock. If installing on glass doors, use the gasket and spacer kits supplied separately to avoid stress cracks at the mounting point.
