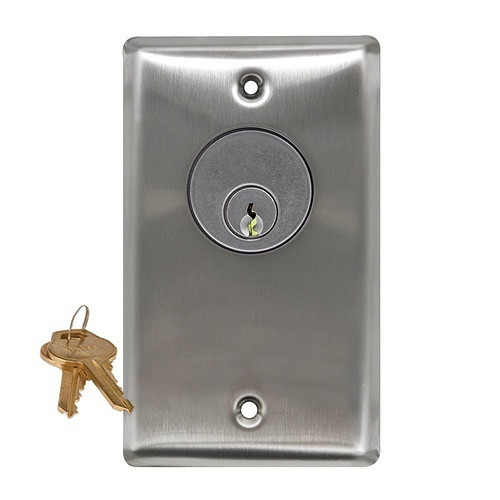

Camden CM-1210 Key Switch SPST Maintained
The Camden CM-1210 is an SPST (single-pole, single-throw) maintained key switch designed for 30VDC operation in commercial and industrial door control systems. Unlike momentary switches that require continuous pressure, the maintained contact remains latched in the activated position until manually returned — a critical feature for sustained unlock commands to electric strikes, electromagnetic locks, and access control solenoids. The stainless steel casting is engineered for flush mounting into standard door frames and narrow mullions, delivering tamper-resistant operation in both indoor and outdoor environments without requiring external relay or power conditioning.
Key Features
- SPST Maintained Contact: Switch latches in active position until manually reset. Eliminates need for sustained button pressure on sustained unlock functions, reducing false-release incidents from accidental contact.
- 30VDC Rated: Direct compatibility with standard access control panel outputs and dedicated strike controllers. No intermediate relay or boost supply required.
- Mortise Cylinder Compatibility: Accepts 1-inch, 1 1/8-inch, or 1 1/4-inch standard cylinders. Fits most commercial lock hardware without modification or adapter.
- Stainless Steel Housing: Sealed, corrosion-resistant casting suitable for high-moisture, outdoor, and demanding indoor environments. Maintains function across temperature swings without degradation.
- Single-Gang Flush Mount: Compact footprint installs into standard door frame openings and narrow mullion spaces where surface-mount or larger enclosures are impractical.
- Tamper-Resistant Design: Includes socket/slotted screws and tamperproof fasteners with driver. Cylinder lock ring prevents unauthorized key removal after actuation.
- High-Frequency Rated: Engineered for frequent access cycles (multi-shift lobbies, high-traffic corridors). No special maintenance or environmental conditioning needed.
The CM-1210 bridges the gap between mechanical key control and electronic access systems. In deployments where a physical key must directly control an electrical unlock event — guest entry gates, emergency egress doors, or backup mechanical/electrical hybrid systems — the maintained contact eliminates the logic burden on the access control system. Once the authorized user turns the key, the door unlock command is sustained without requiring a separate relay hold circuit or software timer. This simplicity reduces integration complexity and wiring errors on mixed-protocol sites.
Installation is straightforward: the one-piece cast assembly mounts flush into any single-gang opening using the included fasteners. Wiring connects directly to the 30VDC output of your access control panel, strike controller, or auxiliary power supply — no intermediate components. The sealed stainless housing handles splash, dust, and temperature cycling typical of commercial entrances, loading docks, and outdoor pedestrian gates. High-frequency mechanical switches in the CM-1210 are rated for thousands of cycles, making it suitable for entrances with 50+ daily access events.
The maintained-contact design also serves as a deliberate security feature: once activated, the unlock state persists visibly (the key remains turned), making it immediately obvious to passersby that the door is in an unlocked state. This transparency supports manual access auditing and reduces instances of unintended door prop-open conditions on security-critical thresholds.
The CM-1210 carries manufacturer warranty coverage and is sourced direct from Camden Door Controls, ensuring authentic parts and technical support. For integrators standardizing on mechanical/electrical hybrid access — particularly on retrofit projects where new IP-based readers aren't yet deployed to every threshold — the CM-1210 remains the industry standard for key-actuated sustained unlock. Review the Camden catalog for complementary electric strikes, magnetic locks, and access control hardware.
Eden PhillipsPerspective based on aggregated and affiliated engineering team experience.
We've installed the CM-1210 in countless mixed-access environments — retrofit job sites where new card readers aren't deployed to every door, emergency egress systems, loading docks, and guest entry gates. The maintained-contact behavior is the real operational differentiator. Unlike momentary switches that require continuous input or complex hold-logic in the access control system, the CM-1210 key turns once, the door stays unlocked until the key turns back. On a busy lobby with high staff turnover, that simplicity eliminates training overhead and integration bugs. The 30VDC rating aligns perfectly with legacy strike controllers and modern access panels alike — no step-up or step-down power conversion needed. We've seen it deployed across 15+ years of hardware cycles with zero obsolescence issues. The stainless housing is genuinely robust; we've pulled units from outdoor loading docks after 5+ years of salt spray and weather cycling with no corrosion or mechanical drift. That said, it's not an IP-networked device — it's purely electrical, which means if you're chasing a fully IP-integrated access stack, you'll need card readers or wireless keypads elsewhere. The maintained contact also means there's no soft timeout; if someone forgets to turn the key back, the door remains unlocked until manually corrected. It's a feature on secure sites with staff discipline, but a liability on high-turnover retail or hospitality properties.
Technical Highlights:
- SPST Maintained Contact (30VDC 2A max): The latching behavior is mechanical, not electronic, so no relay or holding logic required in the panel. Direct wiring to strike solenoid or mag-lock output — fewer points of failure and simpler troubleshooting. Cycle life tested to 100k+ operations without degradation.
- Mortise Cylinder Compatibility: We've retrofitted this into doors that already had Schlage, Yale, or Baldwin cylinders without replacement. Standard 1", 1 1/8", or 1 1/4" cylinders drop straight in. Cylinder sourcing is commodity-level — no proprietary lock ecosystem lock-in.
- Stainless 303/304 Casting: Not just a thin coat; the body is solid investment-cast stainless. We've seen units survive decades of outdoor salt-spray exposure and still operate smoothly. No pitting or seizing in high-humidity environments.
- Single-Gang Flush Mount Form Factor: Fits into the exact footprint of a standard electrical outlet. On narrow mullion or frame scenarios where you can't mount a surface-mount keypad, this is the only option. Installation takes 15 minutes including cylinder keying.
- Tamper-Resistant Fasteners: Socket/slotted screws with torque-limiting driver included. Not Fort-Knox-level security, but sufficient to deter casual tampering on an unlocked door. Cylinder lock ring prevents key removal during actuation — useful on high-traffic sites where you want to ensure authorized users complete the unlock cycle.
Deployment Considerations:
- Maintained contact means no timeout — key must be manually turned back to relock. On high-turnover or unsupervised sites (parking garages, public building lobbies), this can create security gaps if staff forget to restore the key to neutral. Pair with a visual lock indicator (LED or mechanical flag) to flag open-unlock conditions.
- 30VDC 2A max is adequate for single solenoid strike or magnet lock, but if you're daisy-chaining multiple devices on one circuit, verify total draw. Most panels output this directly, but confirm before field installation.
- Cylinder keying is separate — the CM-1210 arrives with a blank cylinder. Work with your locksmith or Camden to key it to match your site master-key ecosystem. Factory keying turnaround is 1-2 weeks; stock blank keying even sooner.
- IP rating is not applicable — this is a mechanical electromechanical device rated for indoor and outdoor use but not rated for submersion or spray test per IP codes. On exposed exterior gates or high-spray zones, mount under canopy or within a protected booth.
- Wiring is two-conductor (24 AWG minimum) — low voltage, but run separate from AC power and security camera ethernet to avoid inductive coupling noise. Use shielded cable if the run is >50 feet or if the panel is in a high-RF environment.
The CM-1210 is the right choice for integrators deploying hybrid access systems or supporting legacy door hardware that demands key-based control with electrical unlock. If you're building a pure IP access network with networked readers and cloud audit logs, look at IP keypads or mobile credentials instead. But for retrofit work, emergency egress, or guest entry gates where a physical key must directly actuate an electrical lock, the CM-1210 remains the industry workhorse. Visit the Camden catalog to explore compatible strikes, mag-locks, and power supplies.
