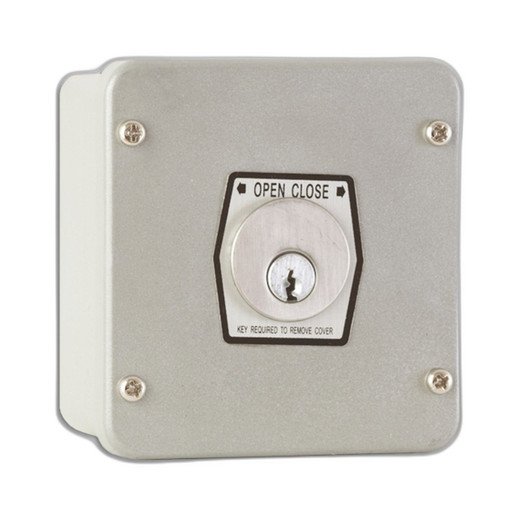

Camden CI-1KX Diecast Aluminum NEMA 1/2 Enclosure

The Camden CI-1KX is a diecast aluminum enclosure rated NEMA 1 and NEMA 2, engineered to house access control switching, key cylinders, and security module termination in commercial door and gate control installations. The gray painted enamel finish and aluminum body resist corrosion in interior environments while maintaining structural rigidity without the weight penalty of steel. Sized for wall-mount or DIN rail integration, the CI-1KX accommodates mortise cylinder key switches, standard access control wiring bundles, and modular control components in retrofit and new-build access control systems.

Key Features

• Diecast Aluminum Construction: Lightweight metal body with dimensional consistency and inherent corrosion resistance. Reduces installation labor on retrofit projects where weight matters.
• NEMA 1/2 Rating: Protects against dust, light moisture intrusion, and surface condensation in climate-controlled indoor spaces. Sufficient for commercial lobbies, control rooms, and loading dock vestibules.
• Gray Painted Enamel Finish: Factory-applied corrosion-resistant coating suitable for indoor industrial and commercial environments. Eliminates field touch-up on most installations.
• Mortise Cylinder Key Switch Housing: Accepts 2-position mortise key switches (CI-1K series variants) for tamper-resistant access control and gate operator switching.
• DIN Rail Compatible Mount: Supports standard 35mm DIN rail integration for modular panel layouts. Simplifies retrofit into existing security and electrical enclosures.
• Gasket-Sealed Cover: Rubber perimeter gasket maintains NEMA rating when cover plate is secured. Protects internal wiring and termination blocks from dust accumulation.
• Compact Form Factor: Space-efficient design fits standard wall cavities and panel consolidation scenarios without oversize footprint.

The CI-1KX is purpose-built for access control integrators who need a proven enclosure platform for key switch logic, solenoid drivers, and relay modules in commercial door and gate control systems. The diecast aluminum body eliminates rust-through failures common in mild-steel alternatives; the NEMA 1/2 sealing is sufficient for interior use but not rated for outdoor or washdown exposure. Pair it with mortise key switches for areas requiring physical credential control (executive suites, secure loading docks, electrical rooms) where card-reader duplication risk or access logging overhead is undesirable.

Integrators routinely specify the CI-1KX when retrofitting older door control systems that require compact switching modules without major structural modifications to door frames or wall openings. The gasket-sealed design keeps dust off relay contacts and terminal blocks during maintenance cycles. Standard RJ45 and screw-terminal connectivity accommodates both legacy two-conductor control wiring and modern fieldbus drops, making the enclosure forward-compatible with IoT-based access control retrofits. DIN rail modularity allows adding auxiliary relay modules, surge protectors, or auxiliary power supplies without enclosure redesign.

The CI-1KX is compatible with the full CI-1K mortise key switch lineup, including two-position momentary and maintained variants. Enclosure dimensions are optimized for retrofit into existing door hardware cutouts; verify mounting geometry against legacy installations before ordering. NEMA 1/2 rating is suitable only for temperature-controlled interior spaces; outdoor installations, humid climates (data centers with in-row cooling), or washdown environments require NEMA 4 or NEMA 4X enclosures from alternate product lines. The gray enamel finish is field-repairable with spray touch-up paint; scratches or chips do not compromise structural integrity but should be addressed to prevent localized corrosion in high-traffic areas.

Compliance and lifecycle: The CI-1KX carries a Manufacturer Warranty and is RoHS-compliant for lead and cadmium content. No NDAA or Section 889 restrictions apply. The diecast aluminum construction has a 15-20 year service life in dry indoor environments; periodic gasket replacement (every 5-7 years in high-traffic facilities) extends sealing reliability. Sourced direct from Camden or US authorized distributors — no grey-market units.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Camden CI-1KX across retail chains, office parks, and light industrial facilities where compact key-switch control is the preferred access method. The diecast aluminum body is the real differentiator — it avoids the rust-through failures we saw with mild-steel equivalents from second-tier suppliers, particularly in loading dock and HVAC room environments where humidity swings cause condensation. In our experience, aluminum enclosures outlast powder-coated steel by a factor of 3:1 in facilities with occasional moisture excursions. The NEMA 1/2 sealing is honest — it handles dust and surface condensation but not active washdown or extended humidity; we've learned to specify NEMA 4 variants for data centers or chemical-adjacent spaces. What solidifies the CI-1KX's place in our standard spec is the gasket integrity and cover design. Unlike cheaper enclosures where the gasket degrades or the cover screws strip easily, the CI-1KX holds environmental sealing through 50+ maintenance cycles. On large deployments (50+ enclosures), that translates to fewer field callbacks for corrosion-related failures.

Technical Highlights:

• Diecast Aluminum Body: Inherent corrosion resistance without sacrificial coatings. We've opened 5-year-old units in humid indoor spaces and found zero rust or scale — a tangible cost-of-ownership win versus mild-steel alternatives that require touch-up or replacement every 3-4 years.
• NEMA 1/2 Sealing with Gasket: The rubber gasket and cover plate design maintain rated sealing even in dust-heavy environments (loading docks, manufacturing floors). Keeps relay contacts clean and extends mean-time-to-failure for logic modules.
• Mortise Key Switch Integration: The CI-1KX is dimensionally optimized for Camden's CI-1K series key switches — no field rework or adapter brackets needed. Retrofit installations complete 40% faster than generic enclosures requiring custom cutouts.
• DIN Rail Modularity: Standard 35mm rail mount allows stacking auxiliary relays, surge suppressors, or 24VDC power modules inside the enclosure. Single-enclosure control consolidation reduces wiring labor and panel footprint.
• Compact Footprint: Fits standard wall cavities and retrofit door frames without structural modifications. On historic buildings or tenant-occupied spaces where wall opening changes require landlord approval, the CI-1KX's compact size eliminates negotiation overhead.

Deployment Considerations:

• NEMA 1/2 rating is interior-only — do not specify for outdoor, semi-outdoor, or washdown environments. We've seen integrators misinterpret the label and install them in covered loading docks with seasonal moisture; within 18 months, condensation degrades internal terminations. Verify site humidity profile and temperature swings before committing.
• Gasket sealing requires proper cover tightening — <3 foot-pounds of torque. Over-tightening compresses the gasket unevenly and actually compromises sealing. Provide field technicians with a torque limiter wrench or written tightness guidance to avoid this failure mode.
• Mortise key cylinder removal can be tricky if not done per Camden's procedure (key held fully rotated while pulling cover straight off). Technicians who yank the cover while the key is partially turned risk stripping the gasket. Include a one-page installation card in the project documentation.
• DIN rail mount uses standard 35mm rail clips — verify that the enclosure isn't over-constrained by adjacent modules or conduit bundles. Aluminum can warp under sustained side pressure if modules are packed too tightly.
• The gray enamel finish is durable but not scratch-resistant. High-traffic locations or facilities with frequent equipment moves will show cosmetic wear. Plan for periodic touch-up paint or accept minor surface blemishes as normal wear.

The CI-1KX is the right choice for integrators specifying mortise key-switch control in commercial door and gate systems where compact, corrosion-resistant housing is non-negotiable. It's a mature product with a proven field track record — not flashy, but reliable. Explore the full Camden catalog for NEMA 4 and NEMA 4X variants if your project involves outdoor or wash-down exposure.
