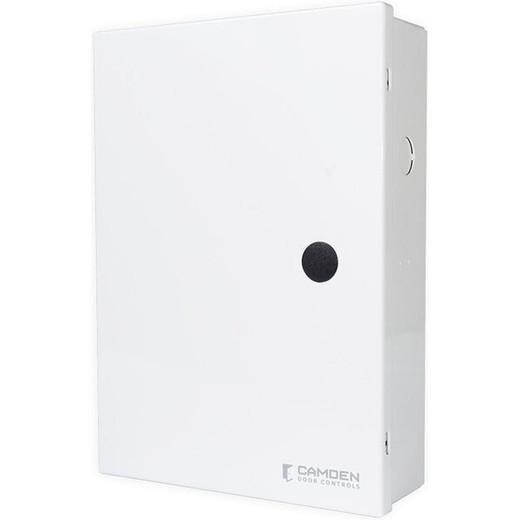

Camden CV-603PS Access Control Cabinet with MProx-BLE Controller
Overview
The Camden CV-603PS is a purpose-built access control cabinet engineered for mid-scale security deployments. This system integrates a MProx-BLE controller paired with a 12 VDC, 1.5 amp power supply to deliver reliable credential authentication and door management across enterprise and institutional installations. The CV-603PS supports proximity, MIFARE, HID, and 125kHz credentials—making it compatible with existing card inventories while supporting modern wireless authentication methods. Designed for integrators managing multiple entry points, this cabinet centralizes access logic and power distribution for installations requiring authentication across up to 20 doors.
Key Features
- Multi-Credential Support: Authenticates MIFARE, HID, and 125kHz proximity credentials from a single control point, reducing reader infrastructure complexity.
- 20-Door Capacity: Manages access control logic for up to 20 independent door strikes, suitable for mid-to-large facility deployments.
- Proximity and Fingerprint Reader Compatibility: Supports both proximity and fingerprint readers, enabling hybrid authentication workflows where required.
- Wiegand and RS-485 Communication: Integrates with door readers via industry-standard Wiegand protocol and RS-485 serial communication for reliable data transmission and extended cable runs.
- Electric Strike Control: Manages electric strike actuation for door locking mechanisms with integrated power distribution.
- 12 VDC Regulated Power Supply: Delivers 1.5 amps of stable power to readers, controllers, and strike mechanisms, eliminating the need for external power regulation.
Integration and Compatibility
The CV-603PS integrates with standard door hardware through electric strike control outputs. The Wiegand input supports direct connection to proximity and smart card readers without intermediate converters. RS-485 capability extends communication range for distributed reader deployments across larger facilities. The MProx-BLE controller manages credential verification logic internally, reducing dependency on network-connected access control servers for single-site installations or as a standalone failsafe system in larger deployments.
Technical Specifications
The system operates on 12 VDC supplied by the internal 1.5 amp power supply, providing sufficient current for reader operation, controller logic, and strike mechanisms. Door capacity extends to 20 independent controlled points, each manageable through the MProx-BLE authentication controller. Communication occurs via Wiegand protocol for reader-to-controller data transmission, with RS-485 serial capability for extended distances or multi-reader configurations. The CV-603PS accepts MIFARE card credentials, HID proximity cards, and standard 125kHz proximity tokens, allowing mixed-credential environments without external card conversion hardware.
Installation integrators benefit from the cabinet's consolidated power distribution and pre-integrated controller module, reducing on-site assembly complexity and field configuration time. Electric strike outputs accommodate standard electromagnetic and solenoid-type strikes common in institutional and commercial door hardware. The cabinet form factor centralizes wiring terminations, simplifying troubleshooting and future system modifications.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
I have evaluated the Camden CV-603PS during deployment planning for a regional office retrofit requiring access control across multiple entry points and zones. The integrated MProx-BLE controller eliminates the need for separate control hardware, and the cabinet's power supply consolidation reduces infrastructure complexity on typical installations.
Technical Highlights:
- Multi-Credential Processing: Native support for MIFARE, HID, and 125kHz proximity cards within a single control path reduces reader proliferation and simplifies credential inventory management.
- Scalable Door Management: 20-door capacity scales installations from small secured areas to full building access control without requiring external controllers or gateway systems.
- Dual Communication Protocol: Wiegand and RS-485 support provides flexibility for both standard proximity reader installations and extended-distance serial deployments where cable runs exceed typical Wiegand effective ranges.
Deployment Considerations:
- The 1.5 amp 12 VDC supply is sized for typical proximity reader and solenoid strike loads; verify current requirements for fingerprint readers or high-draw strike mechanisms during specification.
- Wiegand signaling is best suited for readers within 50 feet of the controller; RS-485 should be selected for extended distances or electrically noisy environments.
- Electric strike actuation integrates directly without additional relay logic, reducing component count and field wiring errors in new installations.
The CV-603PS is a practical choice for integrators deploying access control across 15–20 doors where a self-contained, power-efficient solution is preferred over networked access control servers. Credential diversity support and consolidated strike management simplify both initial deployment and ongoing maintenance operations.
