Overview

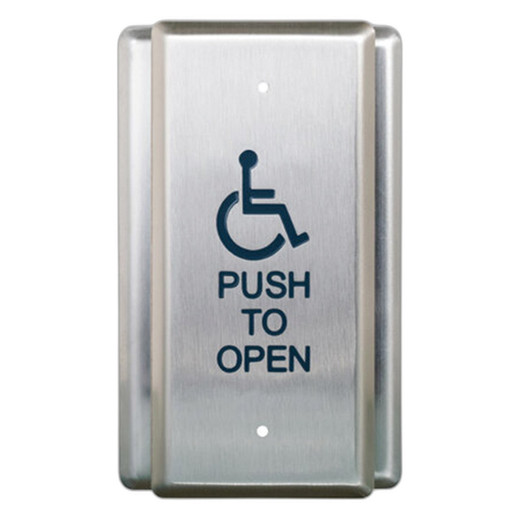

The Camden CM-45/4 is a 4.5-inch push plate switch designed specifically for wheelchair-accessible door control and push-to-open applications. Operating at 30VDC, this switch delivers a straightforward, tactile control point for access control and automated door systems where ADA compliance and accessibility are non-negotiable. The large plate and clear labeling ensure users of varying ability can operate the door reliably without confusion or excessive force.

Key Features

• 4.5-inch Push Plate Activation: Large surface area reduces activation force and ambiguity compared to smaller buttons—critical for wheelchair users, persons with limited dexterity, and general accessibility. This footprint is industry-standard for ADA-compliant installations.
• 30VDC Operation: Runs on standard low-voltage control circuits, simplifying integration with existing access control strikes, electric door operators, and solenoid locks. 30VDC is the predominant control voltage in commercial access systems, eliminating the need for voltage conversion or specialized power supplies.
• Lock/Strike Compatibility: The CM-45/4 integrates with standard electromagnetic strikes and door operators that accept 30VDC command signals, making it flexible across retrofit and new-build installations. No proprietary control modules required.
• Straightforward Wiring: Simple two-wire connection to access control output or door operator control circuits. No software configuration, RFID pairing, or network setup—purely mechanical/electrical activation. Means faster commissioning and fewer troubleshooting variables on site.
• Tactile, Visual Feedback: Physical button press with mechanical tactile response confirms to the user that the switch has activated. Clear labeling on the plate reinforces the push-to-open function, reducing user confusion in high-traffic or unfamiliar environments.
• Retrofit-Ready: Designed for easy installation in existing doorways alongside credential readers, keypads, or as a standalone push-to-open control. The plate mounting accommodates standard door frame installation geometry.

Integration & Compatibility

The CM-45/4 (often searched as CM 45/4) pairs with any access control system or door automation platform that outputs 30VDC control signals. Common integrations include:

• Electromagnetic strikes and solenoid-based door locks
• Automatic door operators (sliding, swing, overhead)
• Access control panels and reader outputs (credential-based or time-clock triggered)
• Manual override or secondary activation in multi-reader or multi-credential scenarios

No firmware updates, ONVIF negotiation, or network connectivity required. The CM-45/4 works identically whether powering an electrified lock on an interior breakroom door or controlling an accessible entry on a warehouse loading dock.

Accessibility & Compliance Positioning

The 4.5-inch plate and low activation force satisfy ADA pushbutton requirements (§203.9 ADA Standards for Accessible Design). This makes the CM-45/4 the default choice for any facility-wide door automation retrofit or new build where wheelchair accessibility is mandated—schools, hospitals, government buildings, office campuses, and industrial facilities with public or employee access zones.

When to Choose a Different Model

If your control signal is 12VDC rather than 30VDC, or if you require a smaller plate form factor (2–3 inches), investigate other members of the push plate switch family. If the application demands wireless or networked control, the CM-45/4 is not the answer—you would need an access control reader or networked solenoid controller instead.

Frequently Asked Questions

Q: Is the CM-45/4 suitable for outdoor doors?

A: The CM-45/4 is designed for standard indoor/covered applications. For exposed outdoor doors subject to rain or spray, verify weather-sealed enclosure compatibility with the manufacturer or your integrator.

Q: Can I wire the CM-45/4 directly to my door strike without an access control panel?

A: Yes. The switch is a simple two-wire activation device. If you have a 30VDC power supply and a door strike, you can wire the CM-45/4 as a direct-control push button. No controller required, though access logging or credential control would require a separate panel.

Q: What is the rated cycle life of the CM-45/4?

A: Consult the manufacturer datasheet or contact your supplier for switch contact life ratings. This detail affects maintenance planning for high-traffic doors.

Q: Does the CM-45/4 work with motion sensors or time-based door control?

A: The CM-45/4 is a manual push-activation switch. It can be used alongside motion sensors or timers if wired in parallel or through an access control panel that orchestrates multiple inputs, but the switch itself does not integrate a sensor or timer.

Q: Can the plate be customized with facility branding or different labeling?

A: Standard units ship with generic push-to-open markings. Contact the manufacturer or your integrator about custom labels or branding options for bulk orders.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The CM-45/4 is purpose-built for accessibility mandates. I specify it whenever a facility retrofit or new build requires ADA-compliant push-to-open control without credential reading or networked complexity. The 30VDC operation and straightforward two-wire interface mean installation is predictable—no firmware surprises, no IP address conflicts, no VMS licensing arguments.

Technical Highlights:

• 4.5-inch Plate Surface: Exceeds ADA minimum activation area (§203.9), reducing force and ambiguity. Wheelchair users don't need to hunt for a button; the large footprint is unmistakable.
• 30VDC Standard Voltage: Aligns with 99% of installed commercial door strikes and operators. No step-down transformer required, no voltage mismatch risk.
• Two-Wire Simplicity: No microcontroller, no cloud dependency, no configuration UI. Activate the switch, the door opens. Repair means replacing a switch, not debugging a firmware version mismatch.

Deployment Considerations:

• Verify your 30VDC power supply capacity before commissioning multiple CM-45/4 units on the same circuit. Each strike draw adds up in high-traffic facilities.
• If the door operator expects a momentary pulse (vs. sustained closure), confirm your wiring logic—some operators require the button to be released for the door to unlock, others latch on press. Clarify this before rough-in.

Position the CM-45/4 as your first choice for main-entry and egress-path accessibility. Pair it with a credential reader for staffed areas, or run it solo for employee breakrooms and loading docks. It is the plumbing of access control—unglamorous but utterly reliable.
