Camden CM-45/8B54SE1 Push Plate Switch with Icon & Push to Lock

Overview

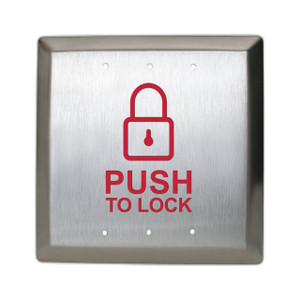

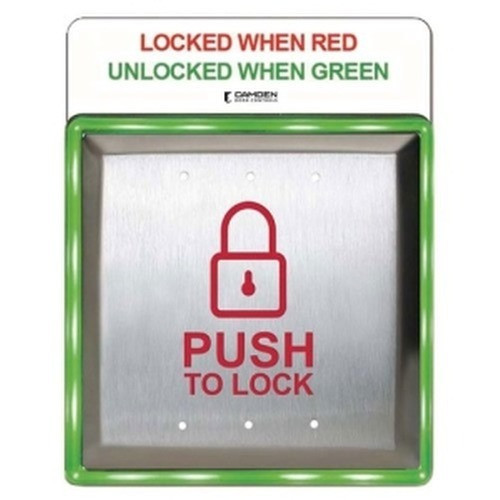

The Camden CM-45/8B54SE1 is a 4-1/2" networked push plate switch designed for access control and door strike applications. This surface-mounted device combines mechanical push-to-lock activation with network connectivity, making it suitable for deployments requiring both hardwired and IP-based control integration. Operating at 30VDC, the CM-45/8B54SE1 integrates directly into TCP/IP networked access control systems, eliminating the need for separate relay modules or hardwired trigger circuits in many installations.

Key Features

• 4-1/2" Form Factor: Compact surface-mounted push plate designed for standard door frame and wall applications
• Push-to-Lock Mechanism: Tactile push activation with integrated locking function eliminates external pushbutton requirements
• Icon labeling provides clear visual indication of function for end-users and emergency personnel
• TCP/IP Network Communication: Direct IP connectivity enables integration with enterprise access control platforms without additional gateway hardware
• 30VDC Operating Voltage: Low-voltage operation simplifies wiring and enhances safety in tenant-accessible areas
• Surface-mount installation reduces retrofit costs compared to mortise or flush-mounted alternatives
• Lock/strike application class supports both electric strike and magnetic lock control scenarios
• Durable construction suitable for high-traffic commercial, institutional, and multi-tenant environments

Integration & Compatibility

The CM-45/8B54SE1 connects directly to access control systems via TCP/IP, enabling real-time door status monitoring and remote strike actuation from the access control panel. This network-native design eliminates intermediate relay hardware and reduces installation labor. System administrators can provision the switch alongside other networked readers and credentials, streamlining credential issuance and access policy management across distributed facilities.

The 30VDC power specification allows the switch to operate from standard access control power supplies commonly found in modular and enterprise systems. Integration with legacy systems may require intermediate power conversion; consult system documentation to confirm compatibility with your existing control platform.

Installation of the CM-45/8B54SE1 requires TCP/IP network connectivity to the access control controller. Ensure network capacity, switch port availability, and VLAN configuration are planned during design phase, particularly in environments with multiple access points or high-traffic entry/exit scenarios.

Typical Applications

The Camden CM-45/8B54SE1 is commonly deployed at secure entry doors in office buildings, educational institutions, healthcare facilities, and multi-tenant commercial properties. Its push-plate form factor and clear icon labeling make it intuitive for authorized personnel during normal access operations. Emergency responders and security staff benefit from the locking mechanism and networked status feedback, which confirms strike actuation in real-time.

Ted Perry

Perspective based on aggregated and affiliated engineering team experience.

I've specified the Camden CM-45/8B54SE1 in several medium-sized office and institutional access control rollouts. The TCP/IP native design is a significant advantage for new deployments where you want to minimize auxiliary hardware and simplify network provisioning. The 30VDC operating voltage is standard across most enterprise access control platforms, which eliminates power supply negotiation during design.

Technical Highlights:

• Network-Native Strike Control: TCP/IP connectivity eliminates the need for intermediate relay modules when integrating with modern access control systems
• Low-Voltage Safety: 30VDC operation simplifies electrical installation and meets code requirements for tenant-accessible areas

Deployment Considerations:

• Verify network capacity and VLAN planning before installation, particularly in high-traffic facilities with multiple access points
• Confirm 30VDC power supply capacity with your access control installer; some legacy systems may require additional converter hardware
• The push-to-lock mechanism requires clear signage and user training to prevent confusion with standard pushbuttons

For integrators and IT managers evaluating networked access hardware, the CM-45/8B54SE1 offers a straightforward path to centralized control without sacrificing mechanical reliability. I recommend it for facilities planning to expand their access control platform or consolidate multiple entry points under a single management interface.
