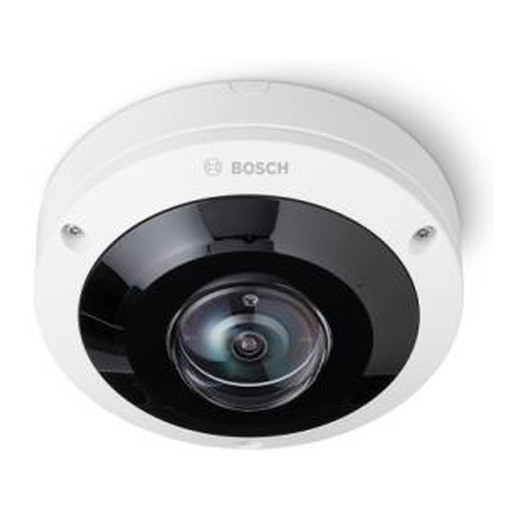

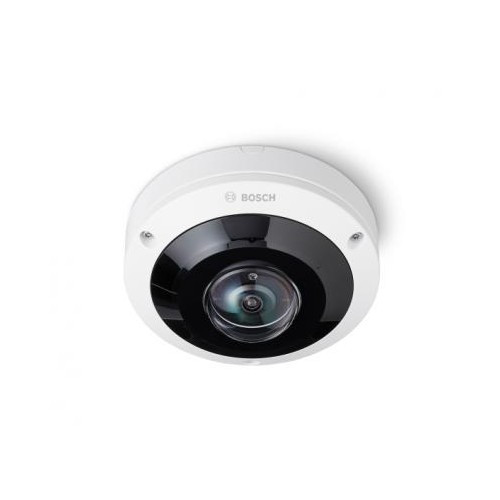

Bosch NDS-5703-F360LE 6MP Panoramic Network Camera
Overview
The Bosch NDS-5703-F360LE (often searched as NDS 5703 F360LE) is a 6MP panoramic network camera engineered for wide-area outdoor surveillance where single-camera coverage reduces both hardware cost and VMS licensing overhead. Built for demanding environments with IP66 weather sealing and IK10 vandal resistance, this pendant-mount camera delivers comprehensive scene monitoring without the complexity of multi-sensor arrays. The Bosch IP cameras lineup includes this model as a practical solution for perimeter security, facility monitoring, and open-area oversight in warehouses, parking structures, and outdoor transitions.
Key Features
- 6MP Panoramic Resolution: Captures fine detail across a wide scene in a single frame—eliminates blind spots between multiple fixed cameras and simplifies video review for forensic investigation or incident correlation.
- Varifocal Lens: Adjustable focal length during installation means you can optimize field of view on-site without swapping the camera. Reduces deployment time and inventory carrying costs.
- H.265, H.264, and MJPEG Compression: H.265 cuts storage and bandwidth consumption roughly in half versus H.264 at equivalent quality—a real factor when recording 24/7 across multiple cameras on limited network infrastructure. Fallback to H.264 or MJPEG ensures compatibility with older VMS platforms.
- IP66 Environmental Rating: Direct rain, dust, and high-pressure water jets pose no threat to this camera. Skip this model only if you require full submersion capability (IP67 or higher) or installation in caustic chemical spray environments.
- IK10 Vandal Resistance: Hardened mechanical construction withstands impact and deliberate tampering—essential in high-risk zones where camera damage is a real concern. Standard IK08 units won't survive the same abuse.
- Integrated Infrared (Day/Night): Built-in IR illumination provides 24/7 coverage without relying on facility lighting. Eliminates dependency on supplemental lighting infrastructure and delivers consistent forensic detail in complete darkness.
- PoE Power (802.3af): Draws under 13W via standard 802.3af PoE—won't strain a typical switch's power budget and avoids the need for separate 12VDC power supplies or conditioning equipment. Single network cable simplifies rough-in and reduces field labor.
- Built-in Microphone: Audio input enables sound-triggered recording or multi-sensor incident correlation without adding a separate audio interface. Useful for detecting unauthorized access or unusual activity in unattended areas.
- Pendant Mount Design: Flexible orientation for ceiling, overhang, or wall-pendant mounting. Reduces custom bracket engineering compared to fixed-orientation form factors.
- ONVIF Compliance: Integrates with ONVIF-compliant network video recorders and video management systems, avoiding vendor lock-in and supporting mixed-brand deployments.
Integration and Deployment Context
The NDS-5703-F360LE fits naturally into outdoor IP cameras portfolios where perimeter coverage, parking area surveillance, or facility entrance monitoring requires wide-angle detail in a single stream. Panoramic optics eliminate the need to coordinate pan-tilt movements or stitch multi-camera feeds. Audio input supports event-driven recording workflows in warehouse or logistics environments, flagging activity during off-hours without constant high-bitrate recording. When paired with PoE switch infrastructure, the camera integrates into standardized network topologies without specialized power distribution or cabling.
When to Choose a Different Model
If your deployment requires mobile tracking or following moving subjects across a large area, consider a higher-resolution PTZ variant from the Bosch surveillance line instead—panoramic optics excel at static wide coverage but lack the zoom and follow capability of motorized turrets. For indoor-only applications where IP66 durability is unnecessary, a lower-cost variant may reduce total cost of ownership. If your facility lighting is excellent and you need color detail in darkness, confirm that integrated IR meets your specific low-light performance targets before committing.
Frequently Asked Questions
Q: Is the NDS-5703-F360LE suitable for outdoor use in high-rain environments?
A: Yes. IP66 rating means direct high-pressure water jets and dust won't degrade performance. However, if the camera will be submerged or mounted in a submersion-prone location, you'll need IP67 or higher—confirm your specific mounting height and local drainage before final installation.
Q: How much bandwidth does the NDS-5703-F360LE consume in 24/7 recording mode?
A: Bandwidth varies by compression codec and scene complexity. H.265 mode typically reduces data consumption 40–60% relative to H.264. Consult the manufacturer datasheet for your specific resolution and frame-rate target to size your network and storage infrastructure accurately.
Q: Can I integrate the NDS-5703-F360LE into my existing Milestone XProtect system?
A: Yes. ONVIF compliance enables integration with ONVIF-compatible VMS platforms, including Milestone. Confirm your specific Milestone version supports the H.265 codec if you plan to use it; H.264 fallback ensures backward compatibility.
Q: What is the maximum infrared range of the NDS-5703-F360LE?
A: Integrated IR illumination supports 24/7 monitoring in darkness. Exact range depends on scene reflectivity and target contrast. Refer to the manufacturer's detailed specifications for IR range under your specific lighting conditions.
Q: Does the NDS-5703-F360LE support two-way audio?
A: The camera includes a built-in microphone for audio input. Two-way audio (speaker output) requires a compatible VMS or external audio interface—confirm your VMS platform supports this feature if bidirectional communication is a requirement.
Q: What mounting options are available for the NDS-5703-F360LE?
A: The pendant-mount design supports ceiling, overhang, and wall-pendant orientations. Verify that your intended mounting surface and angle provide the field of view and stability your security plan requires before installation.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
I have reviewed the Bosch NDS-5703-F360LE during planning phases for mixed indoor-outdoor security networks and perimeter deployments. This panoramic camera design addresses a specific and often-overlooked need: wide-angle surveillance without multi-sensor complexity. The combination of 6MP resolution across a panoramic field of view, coupled with varifocal optics and H.265 compression, makes it practical for bandwidth-constrained sites where you can't afford to stream multiple fixed cameras simultaneously.
Technical Highlights:
- Panoramic 6MP Sensor: Delivers single-frame coverage of large open areas (parking structures, warehouse perimeters, facility entrances)—reduces per-camera VMS licensing costs and eliminates multi-camera coordination. Forensic detail is preserved across the entire field of view.
- H.265 Compression: Reduces storage and bandwidth demand by 40–60% versus H.264 at equivalent quality. Critical for 24/7 recording on congested networks or when storage retention targets exceed 30 days—this is not a minor feature on large deployments.
- IP66 / IK10 Durability: Both ratings confirm reliable outdoor performance in direct rain, dust, and intentional tampering scenarios. IR and day/night capability eliminate dependency on supplemental lighting infrastructure—24/7 color or monochrome coverage without facility uptime assumptions.
- PoE (802.3af) Power Draw: Operates under 13W, so it won't consume a disproportionate share of your PoE switch's power budget. Standard infrastructure—no power conditioning, no separate runs, no relay modules.
- Varifocal Lens and Pendant Mount: Field-adjustable optics reduce deployment friction—install, then tune field of view on-site without camera replacement. Pendant mounting supports multiple orientations (ceiling, overhang, wall-pendant), reducing custom bracket engineering.
Deployment Considerations:
- Bandwidth Sizing: Although H.265 is efficient, confirm your PoE switch and recorder have sufficient throughput for simultaneous multi-camera recording. Panoramic 6MP streams still demand careful network planning on congested segments.
- Lens Tuning: Varifocal adjustment is flexible but requires on-site access and skill—plan for field commissioning labor if your installer team is unfamiliar with lens calibration. Miscalibrated focus will degrade forensic detail.
- Audio Input Use Case: Built-in mic is useful but is input-only. If you need two-way audio or speaker playback, confirm your VMS or separate audio interface supports this workflow before deployment.
- IR Performance in Extreme Cold: IR illumination may degrade in sub-zero ambient temperatures. If your site operates in harsh winter climates, test IR range in your specific thermal conditions before finalizing camera placement.
The NDS-5703-F360LE is well-suited to perimeter security, warehouse entrance monitoring, and parking structure coverage where single-frame wide-angle detail and efficient compression justify the cost over multiple lower-resolution fixed cameras. Skip this if you need mobile tracking or if your scene geometry demands narrow focal lengths—panoramic optics are not a fit for tight corridor coverage or long-distance identification.
