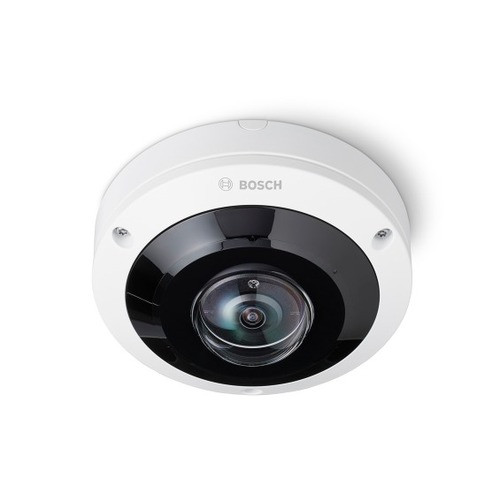

Bosch FIXED DOME 6MP 360 IP66 IR GOV - NDS-5703-F360LE-GOV

Bosch NDS-5703-F360LE-GOV 6MP 360° Fixed Dome IP66 IK10 Government

Overview

The Bosch NDS-5703-F360LE-GOV is a 6MP 360-degree panoramic fixed dome camera built specifically for government and high-security commercial deployments where full-perimeter awareness, vandal resistance, and broad environmental tolerance are non-negotiable. Delivering 6MP total resolution at up to 30 fps with a 4.5MP effective resolution after panoramic dewarping, this dome eliminates the blind spots that multi-camera corner setups routinely leave behind. The government-designated SKU signals procurement compliance for public-sector purchasing channels where product sourcing provenance matters.

The NDS-5703-F360LE-GOV is part of the broader Bosch Security Systems camera lineup — a series known for firmware longevity and enterprise VMS integration depth. For buyers evaluating fixed dome cameras across brands, the dual 802.3af/at PoE compatibility and ONVIF multi-profile support are practical differentiators when deploying into mixed-vendor infrastructure.

Key Features

• 6MP Sensor at 30 fps: Full 6MP capture at a sustained 30 frames per second means fast-moving subjects — foot traffic in lobbies, vehicles at checkpoints — are rendered without the motion blur that plagues lower frame-rate panoramics. The 4.5MP effective resolution after lens correction still delivers more usable pixels per scene than most 4MP fixed cameras covering the same footprint with two units.
• True 360° Coverage: A single ceiling-mounted unit replaces two to four cameras in a corner-based coverage scheme. For government facilities managing camera counts against PACS budgets, that reduction in endpoint count also reduces switch port consumption, licensing seats on the VMS, and long-term maintenance touchpoints — all from one PoE drop.
• High Dynamic Range Imaging: The HDR processing handles scenes with simultaneous bright exterior light and dim interior zones — the kind of contrast that defeats single-exposure cameras at entry vestibules, loading docks, and perimeter doors. You get readable detail in both zones without separate camera placements for each light level.
• IP66 Ingress Protection: IP66 means the housing is fully sealed against dust ingress and resists powerful water jets from any direction. This is the right baseline for outdoor-exposed mounting positions — building soffits, parking structure ceilings, covered walkways — but not for direct submersion. If underwater or fully submerged environments are in scope, you need IP67 or IP68.
• IK10 Vandal Resistance: IK10 is the highest impact protection rating in the EN 62262 scale, corresponding to resistance against 20-joule impacts — roughly a deliberate hammer strike. In government environments, transit hubs, correctional facilities, or any location where tampering is a threat vector, IK10 eliminates camera housing as an easy defeat point.
• PoE IEEE 802.3af / 802.3at Compatibility: The camera accepts both 802.3af (up to ~15W budget per port) and 802.3at (up to ~30W). This means it integrates into existing 802.3af switch infrastructure without a forced switch upgrade — a budget consideration that matters when deploying dozens of units across a campus. No separate power supply or midspan injector required.
• ONVIF Profile S, G, M, T Conformance: Four-profile ONVIF conformance is unusually broad. Profile S covers basic streaming, Profile G covers edge recording, Profile M adds metadata and analytics interoperability, and Profile T adds HTTPS streaming and motion regions. This means the NDS-5703-F360LE-GOV integrates cleanly into any network video recorder or VMS that supports ONVIF — including Milestone, Genetec, Avigilon, and Hanwha Wisenet — without proprietary plugin dependencies.
• Local Edge Storage up to 2TB: Onboard storage support up to 2TB provides a resilient recording buffer independent of network connectivity. In government deployments where WAN links can be unreliable or where network segmentation limits VMS reach, local storage bridges the gap and retains evidence-grade footage locally.
• Operational Temperature Range -40°C to +55°C: The -40°C lower bound means this unit operates without heater accessories in extreme cold climates — Alaska installations, northern federal facilities, outdoor mountings in continental freeze zones. The +55°C upper limit covers exposed rooftop and southern-climate outdoor positions without thermal shutdown concerns.
• Compact Dome Form Factor: At 140.9mm diameter and 148mm height, weighing 1.1 kg, this is a low-profile ceiling dome. The compact footprint keeps it architecturally unobtrusive in government lobbies and public spaces where camera visibility is a design consideration.

Integration & Compatibility

The NDS-5703-F360LE-GOV's four-profile ONVIF conformance (S, G, M, T) makes it compatible with the major enterprise VMS platforms without manufacturer-specific plugins. Profile G support enables direct edge recording negotiation with compatible recorders, reducing reliance on central storage for edge nodes. The dual PoE standard support (802.3af and 802.3at) means this camera fits into existing switch infrastructure without forced hardware refreshes. For deployments running a PoE switch inventory mix across older 802.3af and newer 802.3at hardware, this camera accommodates both without per-port configuration changes.

Government-channel procurement often requires documented sourcing and product pedigree. The GOV SKU designation on the NDS-5703-F360LE-GOV signals it is positioned for public-sector purchasing vehicles. Consult your contracting officer for specific schedule or cooperative purchasing compatibility. For a deeper look at how to plan camera density and lens selection for panoramic deployments, the camera selection guide covers coverage overlap, dewarping considerations, and VMS licensing implications.

Frequently Asked Questions

Q: Does the NDS-5703-F360LE-GOV require 802.3at (PoE+) or will a standard 802.3af switch port work?

A: The NDS-5703-F360LE-GOV supports both IEEE 802.3af and 802.3at PoE standards, so a standard 802.3af switch port is sufficient. You do not need to upgrade to PoE+ infrastructure to deploy this camera.

Q: What is the effective resolution after panoramic dewarping on the NDS-5703-F360LE-GOV?

A: The sensor captures at 6MP total, with 4.5MP effective resolution available after the panoramic lens correction and dewarping process is applied. This is the usable pixel count for forensic review and analytics.

Q: Is the NDS-5703-F360LE-GOV rated for outdoor installation in extreme cold climates?

A: Yes. The operating temperature range is -40°C to +55°C, which covers extreme cold environments without requiring supplemental heater accessories. The IP66 rating also provides full dust sealing and jet-wash water resistance for exposed outdoor positions.

Q: Which ONVIF profiles does the NDS-5703-F360LE-GOV support?

A: The camera conforms to ONVIF Profile S (basic streaming), Profile G (edge recording), Profile M (metadata and analytics interoperability), and Profile T (HTTPS streaming, motion regions). This four-profile conformance supports integration with most enterprise VMS platforms without proprietary driver dependencies.

Q: What is the maximum local storage capacity on the NDS-5703-F360LE-GOV?

A: The NDS-5703-F360LE-GOV supports up to 2TB of local edge storage, providing an independent recording buffer that operates even when the primary network or VMS is unreachable.

Q: What does the GOV suffix on the NDS-5703-F360LE-GOV indicate?

A: The GOV designation indicates this SKU is configured for government-channel procurement. It is the appropriate part number to reference when sourcing through public-sector purchasing vehicles. Verify specific contract schedule compatibility with your contracting officer.

Jerry Tildsen

The spec that drives most of my conversations about the NDS-5703-F360LE-GOV is the dual PoE standard support — specifically that 802.3af compatibility. On government facility retrofits where the existing switch infrastructure is 802.3af-only, being able to deploy a 6MP 360-degree unit on a legacy port without a switch refresh changes the project economics considerably. That alone justifies a close look at this model for phased government upgrades.

Technical Highlights:

• 6MP at 30 fps: Full frame rate at 6MP total (4.5MP effective post-dewarping) means a single ceiling unit captures the kind of temporal detail — foot traffic, vehicle movement — that 15 fps panoramics routinely smear. For evidentiary review, that difference matters.
• IK10 + IP66 combination: Most outdoor domes hit IP66 but stop at IK08 or IK09. IK10 at the 20-joule impact threshold, combined with IP66 sealing, means this housing resists both environmental exposure and deliberate physical attack — the combination you want at unsupervised perimeter positions.
• -40°C operating floor: No heater kit, no cold-weather accessory SKU needed. The -40°C lower bound is the spec that makes this viable for northern federal installations and outdoor northern-climate deployments where camera cold-start failures are a recurring field problem.

Deployment Considerations:

• The 140.9mm x 148mm form factor fits standard ceiling gang boxes, but verify your ceiling tile system can handle the 1.1 kg drop weight before committing to a grid-ceiling mounting approach — tile clips rated for this weight are not universal.
• ONVIF Profile G enables edge recording negotiation, but the 2TB local storage ceiling means this is a buffer and failover solution, not a long-term archive. Size your VMS-side retention schedule accordingly; do not architect this as primary storage on high-channel-density deployments.

This unit is the right choice for government lobby and perimeter checkpoint deployments where a single camera must cover a full room or entryway, the infrastructure is 802.3af-constrained, and the environment demands IK10 physical robustness — federal buildings, transit authority facilities, and hardened perimeter entry points are the named fit.
