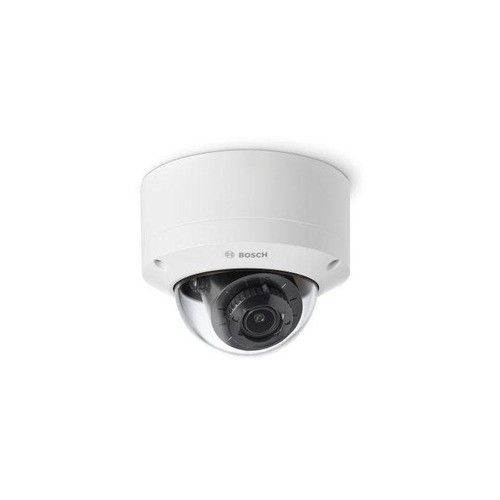

Bosch Fixed dome 8MP HDR 3.2-10.5mm IP66 GOV - NDE-5704-A-GOV

Bosch NDE-5704-A-GOV 8MP HDR Fixed Dome Camera

Overview

The Bosch NDE-5704-A-GOV is an 8MP outdoor-rated fixed dome camera built for government procurement channels, delivering 3,864 x 2,192 effective pixel resolution on a 1/2.8-inch CMOS sensor with a 3.2–10.5mm varifocal lens. If you're deploying across building perimeters, parking structures, or covered public-area installations where lighting swings hard and physical attack is a real risk, this is a purpose-spec'd unit — not a commercial repaint. The -GOV suffix designates it for government-eligible purchasing tracks, and the hardware backs that positioning with IK10 vandal resistance, IP66 weatherproofing, a TPM crypto coprocessor, and 120 dB WDR that produces usable footage where conventional cameras blow out or crush detail.

It draws under 7.7W via standard 802.3af PoE (Class 3), so it won't force a switch upgrade or overrun your PoE budget in a multi-camera deployment. Surface-mount installation with 3/4-inch NPT (M25) and 1/2-inch NPT (M20) conduit knockouts keeps wiring tidy on finished ceilings or junction-box-fed walls. Browse the full Bosch surveillance line for complementary models in the same family.

Key Features

• 8MP / 3,864 x 2,192 Resolution: At roughly four times the pixel density of 1080p, you get workable detail for post-event forensics — face and plate identification at distances where 2MP cameras give you a blurry blob. On a wide-angle 3.2mm setting covering a lobby entrance, that pixel count matters when a reviewer needs to crop and identify.
• 120 dB Wide Dynamic Range: A 120 dB WDR spec means the camera can simultaneously expose a sun-blasted exterior door and a dim interior corridor in a single frame without either blowing out or going black. This is the single most important spec for entrances, loading docks, and any coverage zone with mixed natural/artificial light.
• 3.2–10.5mm Varifocal Lens: The 3.28x optical zoom range lets an installer dial in coverage — wide at 3.2mm for close-mounted ceiling installations, or narrowed to 10.5mm for corridor or mid-range aisle coverage — without swapping lenses. Fine-tune during commissioning, lock, and you're done. Pair this with a compatible surface mount or junction box adapter for a clean install.
• IK10 Vandal Resistance: IK10 is the highest classification under IEC 62262 — rated to withstand a 20-joule impact, roughly equivalent to a 5kg mass dropped from 40cm. On a government facility camera, that's not an edge case; it's a baseline spec for any publicly accessible mounting point.
• IP66 Environmental Rating: IP66 means complete dust exclusion and protection against high-pressure water jets from any direction. Suitable for covered outdoor installations, drive-throughs, and transit shelters. It is NOT rated for submersion — if you need underwater or flood-prone vault coverage, look at IP67 or IP68 variants.
• PoE 802.3af Class 3 at 7.7W Max: Standard 802.3af keeps per-port draw well inside the 15.4W Class 3 ceiling. On a 24-port managed PoE switch with a 185W budget, you can run 24 of these cameras without tripping the budget — no injectors, no separate power runs. Also accepts 24 VAC ±10% or 12 VDC ±10% for legacy or hardwired panels. For PoE infrastructure planning, see our guide to PoE network switches.
• H.265/HEVC Compression: H.265 cuts storage requirements roughly in half compared to H.264 at equivalent quality — meaningful when you're running 8MP streams 24/7. On a 32-channel recorder, that gap translates directly into retention days or reduced storage spend. H.264 and M-JPEG remain available for legacy VMS environments that haven't updated codec support.
• Local Edge Storage — Up to 2TB via microSD/microSDXC: Onboard storage up to 2TB provides a local buffer if network connectivity is interrupted, or a standalone recording option for remote sites without NVR infrastructure. This isn't a replacement for centralized recording, but it's a real failsafe for government continuity requirements.
• TPM Crypto Coprocessor + AES-256 / TLS 1.3 Encryption: Hardware-anchored security via TPM, with AES-CBC 256-bit, RSA 4096-bit, TLS 1.2 and 1.3, and xTS-AES encryption. MD5, SHA-1, and SHA-256 video authentication provide chain-of-custody integrity on recorded footage — relevant for evidentiary purposes in law enforcement or federal facility deployments.
• ONVIF Profiles S, G, T, and M: Full ONVIF profile support means this camera integrates with any compliant VMS without manufacturer-specific plugins. Profile G adds recorder-side edge storage management; Profile T adds H.265 and metadata streaming. Integration with network video recorders from Milestone, Genetec, or Avigilon is straightforward at the ONVIF level.
• Audio I/O — Line-in / Mic-level in + Line-out: Bidirectional audio wiring is supported out of the box. Wire a mic for audio capture or a speaker for remote voice-down — useful at access points, security checkpoints, or perimeter gates without a separate intercom device.
• Wide Pan/Tilt Adjustment — 355° / 85° / 350°: Three-axis adjustment with near-full rotation on pan and rotation axes means you can mount this camera on almost any surface orientation and still aim it precisely. Recessed ceiling mounts or angled soffit installations that would defeat a fixed-aim dome are straightforward here.

Integration & Compatibility

The NDE-5704-A-GOV supports ONVIF Profile S, G, T, and M, covering the major VMS platforms in enterprise and government deployments. ONVIF Profile T enables H.265 streaming and motion metadata to the VMS — useful for analytics-driven event workflows. Profile G allows VMS-managed edge recording to the onboard microSD slot, which can simplify storage redundancy policy without a second recording device.

Network interface is 10/100BASE-T — adequate for H.265 8MP streams at typical government surveillance bitrates, though integrators running multiple high-bitrate streams on the same segment should confirm switch port allocation. The camera accepts both 802.3af PoE and 802.3at Type 1 (Class 3), as well as 24 VAC and 12 VDC for hybrid infrastructure sites.

Conduit compatibility at 3/4-inch NPT (M25) and 1/2-inch NPT (M20) covers the standard conduit sizes used in commercial and government electrical rough-in. Surface-mount housing is included; pendant or in-ceiling mounting requires a compatible adapter — check Bosch's accessory lineup for the NDE-5700 series mount kit appropriate to your ceiling type. Explore outdoor IP cameras to compare alternative models if your deployment has different form-factor or resolution requirements.

Frequently Asked Questions

Q: What power options does the NDE-5704-A-GOV support?

A: The NDE-5704-A-GOV supports three power input methods: IEEE 802.3af / 802.3at Type 1 PoE (Class 3, max 7.7W), 24 VAC ±10% (max 6.89W), and 12 VDC ±10% (max 7.08W). Standard 802.3af PoE is the most common deployment method and does not require a separate power supply.

Q: Is the NDE-5704-A-GOV suitable for outdoor installation?

A: Yes. The camera carries an IP66 rating, meaning it is fully dust-tight and protected against high-pressure water jets from any direction. It is not rated for submersion. The operating temperature range is -40°C to +55°C (-40°F to +131°F), making it suitable for both cold-climate and hot-climate outdoor deployments.

Q: What VMS platforms does the NDE-5704-A-GOV integrate with?

A: The camera supports ONVIF Profiles S, G, T, and M, which provides compatibility with any ONVIF-compliant VMS including Milestone XProtect, Genetec Security Center, Avigilon Control Center, and others. Profile T enables H.265 streaming and metadata; Profile G supports VMS-managed edge recording to the onboard microSD slot.

Q: How much onboard storage does the NDE-5704-A-GOV support?

A: The camera accepts microSDHC and microSDXC cards with a maximum supported capacity of 2TB. This onboard storage can serve as a recording buffer during network outages or as standalone local storage for sites without a centralized NVR.

Q: What does the -GOV suffix mean on the NDE-5704-A-GOV?

A: The -GOV designation indicates this model is configured for government procurement channels. It carries the same core hardware as the standard NDE-5704-A but is positioned for government-eligible purchasing tracks and compliance requirements common in federal, state, and municipal deployments.

Q: Does the NDE-5704-A-GOV have hardware cybersecurity features?

A: Yes. The camera includes a TPM (Trusted Platform Module) crypto coprocessor for hardware-anchored key storage, and supports AES-CBC 256-bit, RSA 4096-bit, TLS 1.2, TLS 1.3, and xTS-AES encryption. Video authentication via MD5, SHA-1, and SHA-256 supports chain-of-custody integrity for evidentiary recordings.

Karl Wilson

The NDE-5704-A-GOV sits at the intersection of two requirements that are hard to satisfy simultaneously in a single dome unit: genuine 8MP forensic resolution and a 120 dB WDR spec that actually holds up in mixed-lighting scenarios. In my experience specifying cameras for covered outdoor and semi-outdoor government applications — transit stations, courthouse entrances, detention facility perimeters — the WDR number is what separates cameras that produce usable evidence from cameras that produce a glowing rectangle where a face should be. The 120 dB figure here, combined with 0.046 lux color sensitivity, gives this unit a legitimate case in those environments.

Technical Highlights:

• 120 dB WDR: Usable simultaneous exposure across a 120 dB dynamic range means a camera covering both a sunlit exterior door and a dim corridor interior can render both zones in a single frame — no scene switching, no HDR artifacts that confuse downstream analytics. At a building entrance where natural light variance exceeds 10 stops intraday, this is the spec that decides whether your recordings are evidentiary.
• TPM + TLS 1.3 / AES-256 Cybersecurity Stack: Hardware-rooted key storage via TPM, combined with TLS 1.3 transport and xTS-AES storage encryption, gives federal and state agency IT reviewers a concrete answer when they ask about the camera's security posture. SHA-256 video authentication supports a chain-of-custody argument for footage used in legal proceedings — that's not a checkbox spec for government deployments, it's a procurement requirement.
• 7.7W Class 3 PoE Power Draw: At under 7.7W on 802.3af, this camera runs comfortably on any standard PoE switch port without triggering power-budget overruns. A 24-port switch with a 185W budget can run the full port count on these without injectors or auxiliary power — a real simplification on government retrofit projects where adding electrical circuits is expensive and slow.

Deployment Considerations:

• The 10/100BASE-T network interface is adequate for single-camera H.265 8MP streams, but confirm switch port allocation on segments running multiple cameras at high bitrates — a managed switch with per-port bandwidth monitoring is worth the overhead on dense deployments.
• The IP66 rating covers rain and washdown; it does not cover submersion or standing water ingress. Do not mount at grade in flood-prone areas or in drainage paths — if your site has standing-water risk, you need IP67 or higher. Also note the maximum operating temperature of +55°C — check enclosure temperatures in direct-sun mounting scenarios in hot climates before assuming ambient-rated specs apply.

For a federal building entrance, GSA-leased office perimeter, or covered transit platform where IK10 physical hardening, 120 dB WDR, and a hardware cybersecurity stack are all procurement line items rather than nice-to-haves, the NDE-5704-A-GOV (often searched as NDE 5704 A GOV) is a purpose-matched specification rather than a repurposed commercial camera.
