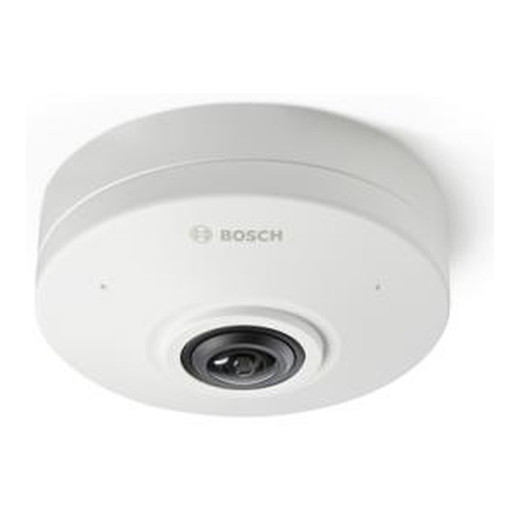

Bosch NDS-5703-F360 6MP Panoramic Indoor Dome Camera
Overview
The NDS-5703-F360 is a 6MP indoor dome camera engineered for deployments where image detail, durability, and remote lens control matter. This unit ships as part of the broader Bosch IP cameras line and pairs motorized varifocal optics with IK08 vandal protection—a meaningful combination when you're installing in retail, warehouse, or corporate environments where both accidental impact and deliberate tampering are realistic concerns. The camera runs on standard 802.3af PoE, eliminating the need for separate power cabling, and supports three compression codecs simultaneously, so it adapts to mixed-vendor VMS environments without reconfiguration.
Key Features
- 6MP Sensor (2560 × 1920): Delivers 6-megapixel detail—high enough for facial recognition and license-plate forensics at typical indoor distances (10–30 meters), but not so high that it overwhelms your storage or network bandwidth on a single camera.
- Motorized Varifocal Lens: Allows you to adjust zoom and focus remotely after installation. This means less rework during commissioning if your initial aiming is off by a meter or two. Reduces on-site labor compared to fixed-lens alternatives.
- Triple Codec Support (H.265, H.264, MJPEG): H.265 cuts bandwidth and storage roughly 40–50% compared to H.264 for identical image quality—material savings on 24/7 multi-camera systems. MJPEG and H.264 ensure backward compatibility if your VMS predates H.265 adoption. Switch codecs per camera without hardware changes.
- 802.3af PoE Power (under 13W typical): Draws minimal power, so you won't strain standard switch power budgets. One Ethernet cable handles both data and power; no separate 12VDC supply required. Simplifies conduit runs and reduces junction-box complexity.
- Day/Night IR with Automatic Switching: Built-in 850nm infrared LEDs kick in automatically when ambient light drops. No manual mode selection needed. Effective for unlit corridors, parking areas, or 24-hour facilities where you need consistent monochrome coverage without visible red glow.
- IK08 Vandal Resistance: Impact-rated housing withstands strikes equivalent to a 1.4kg steel ball dropped from 1.4m. Meaningful in retail or high-turnover warehouses where bumped ceilings happen. Does not guarantee immunity from sledgehammers or intentional destruction.
- Built-in Microphone: Captures audio alongside video. Useful for two-way intercom scenarios or event correlation (e.g., correlating an alarm with the sound of breaking glass). Verify your VMS audio recording settings before deployment.
- ONVIF Compatibility: Integrates with any ONVIF-compliant VMS—Milestone, Genetec, Axis Camera Station, etc. No vendor lock-in; if you swap management platforms later, the camera follows.
- Compact Dome Form Factor: Ceiling-mount design provides 360-degree coverage and blends into drop ceilings. Less conspicuous than bullet cameras in office or retail settings.
Integration & Compatibility
The NDS-5703-F360 ships ready for standard network video recorders and software VMS platforms. Its ONVIF Profile S support ensures plug-and-play integration with nearly every modern system. Power budget on a typical 48-port PoE switch is tight if you deploy 30+ cameras, so validate your PoE switch specifications during planning. Audio input requires a compatible microphone input on your VMS or a separate audio interface card—not all systems handle in-camera audio capture natively.
Deployment Considerations
Varifocal setup adds 15–30 minutes to commissioning per camera; plan zoom and focus adjustment into your labor estimate. The motorized lens is reliable but does consume power continuously while adjusting—keep adjustment cycles to a minimum during setup. IK08 protection stops common impacts but won't prevent determined attack with heavy tools. IR illumination works well indoors on reflective surfaces (white walls, metal racks) but may underperform in highly absorbent environments (black fabric, thick insulation). Mount the camera away from direct sunlight glare during daytime for optimal auto-iris performance.
When to Choose a Different Model
If you need outdoor-rated weatherproofing, look for IP66 or IP67 variants in the Bosch FLEXIDOME line. If your deployment exceeds 30–40 meters of IR coverage, consider stepping up to a higher-megapixel model with longer-throw illumination. For spaces requiring extreme vandal resistance (detention, correctional facilities), evaluate IK10-rated units instead.
Frequently Asked Questions
Q: What is the maximum infrared range on the NDS-5703-F360?
A: Infrared range is not explicitly specified in the available documentation. For accurate IR performance at your site distance, contact the manufacturer or a systems integrator with access to detailed photometric data.
Q: Can the NDS-5703-F360 be wall-mounted, or is it ceiling-only?
A: The dome form factor is optimized for ceiling mounting. Wall mounting is possible with appropriate brackets, but confirm bracket compatibility with your installer before ordering.
Q: Does the NDS-5703-F360 support ONVIF?
A: Yes. The camera is ONVIF-compliant, ensuring compatibility with Milestone, Genetec, Axis Camera Station, and other standard VMS platforms.
Q: What is the actual power consumption of the NDS-5703-F360?
A: The camera draws under 13W via 802.3af PoE, well within standard switch power budgets. Verify your switch PoE allocation when deploying multiple units.
Q: Is there a warranty on the NDS-5703-F360?
A: Warranty details are not specified in the available product documentation. Contact the manufacturer or your specialty retailer for warranty period and terms.
Q: What codecs does the NDS-5703-F360 support?
A: The camera supports H.265, H.264, and MJPEG simultaneously, allowing codec selection per VMS or camera group without hardware reconfiguration.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the NDS-5703-F360 (often searched as NDS 5703 F360) across retail and facility-security projects where indoor vandal resistance and image quality are both non-negotiable. The combination of 6MP resolution, motorized varifocal lens, and IK08 durability rating makes this dome a practical choice for environments where you need to adjust coverage after installation without pulling the camera down. The triple codec support is genuinely useful when integrating legacy VMS systems alongside newer deployments on the same network.
Technical Highlights:
- Varifocal Motorized Lens: Saves 20–30 minutes per camera during commissioning. You can fine-tune zoom and focus remotely, which matters when initial aiming is slightly off. Compare this to fixed-lens competitors where any miss means a ladder visit.
- H.265 Codec: On a 24/7 system with 20+ cameras, H.265 cuts your storage footprint by 40–50%. That translates to either smaller NVR capacity or longer retention at the same hardware cost.
- IK08 Impact Rating: Protects against accidental ceiling strikes and minor deliberate contact. It's not a sledgehammer shield, but it eliminates the frequent "someone bumped the camera" service calls you see with unrated plastic domes.
- 802.3af PoE Under 13W: Low power draw means you won't strain a standard 48-port switch even at 40+ camera deployments, as long as you aren't mixing this with PoE+ or PoE++ gear on the same power budget.
Deployment Considerations:
- Varifocal Setup: The motorized lens is reliable, but if you're deploying 20+ units, allow labor time for zoom/focus tuning. Automate it or batch it into a single commissioning visit.
- Audio Input Verification: The built-in microphone is included, but not all VMS platforms natively record or trigger on in-camera audio. Confirm your system supports it before relying on it for event correlation.
- PoE Switch Power Budget: At under 13W, this camera is lightweight on power, but if you're mixing it with other PoE devices, verify total allocation. A single 48-port 370W switch supports roughly 28–30 of these cameras comfortably.
- IR Performance on Dark Surfaces: The IR works well on reflective surfaces (white walls, metal shelving) but underperforms on dark, absorbent materials. Site walk-through matters.
Best Fit: The NDS-5703-F360 is a solid anchor for indoor retail, office, or light-manufacturing surveillance where you want solid 6MP detail, reasonable vandal durability, and the flexibility to adjust optics post-install. It's not a high-end solution for long-distance forensics or extreme abuse environments, but it punches above its weight in mixed-vendor deployments where ONVIF compatibility and codec flexibility are assets.
