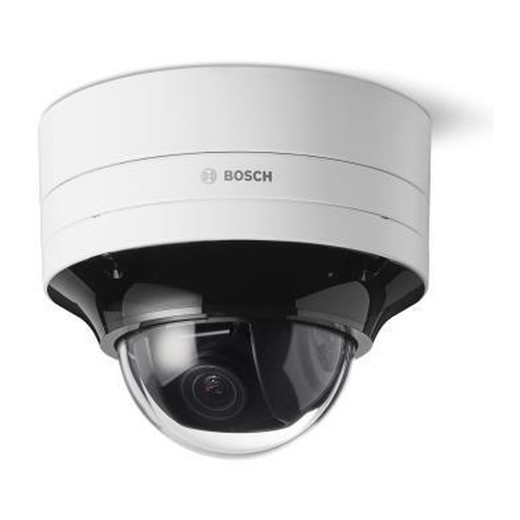

Bosch NDE-8703-RXL FLEXIDOME 8100i IR – X series 4MP Dome Camera

Bosch NDE-8703-RXL Vandal-Resistant Fixed Dome Camera

Overview

The Bosch NDE-8703-RXL is a compact, vandal-resistant fixed dome camera designed for indoor and outdoor surveillance in high-risk environments. This 4MP camera combines robust mechanical protection with advanced video compression, making it suitable for facilities requiring durability without sacrificing image quality. The NDE-8703-RXL operates on standard PoE (802.3af) power, simplifying installation and reducing infrastructure costs. Built to withstand physical impact and environmental stress, this camera delivers reliable 24/7 monitoring in demanding deployment scenarios.

Key Features

• 4MP Resolution: Captures sharp detail across wide surveillance areas with 2688 × 1520 pixel imaging
• Varifocal Lens (4.4–10 mm): Adjustable focal length enables flexible field-of-view configuration without camera repositioning
• H.265, H.264, and MJPEG Compression: Multi-codec support optimizes bandwidth and storage efficiency while maintaining compatibility across VMS platforms
• IP66 Environmental Rating: Sealed against dust and high-pressure water jets; suitable for outdoor, semi-outdoor, and harsh interior installations
• IK11 Vandal Resistance: Reinforced housing withstands 50 joules of impact energy, protecting against deliberate damage and accidental strikes
• Day/Night IR Capability: Integrated infrared illumination enables continuous monitoring in low-light and no-light conditions without visible light constraints
• PoE 802.3af Power: Single cable carries power and data; reduces installation complexity and supports extended cable runs up to 100 meters
• Built-in Microphone: Audio capture enables two-way communication and environmental sound recording for forensic review
• Compact Fixed Dome Form Factor: Low-profile design fits discrete mounting in corridors, retail spaces, and public areas while resisting tamper attempts

Integration and Deployment

The NDE-8703-RXL integrates with any ONVIF-compliant video management system and supports direct IP network connection. Its varifocal lens eliminates the need for multiple fixed-focal-length cameras in installations where coverage area varies. The combination of IP66 rating and IK11 vandal resistance makes this camera particularly effective in transportation hubs, correctional facilities, retail environments, and municipal buildings where both environmental exposure and intentional damage present risk factors.

Installation teams benefit from PoE simplification: a single CAT5e or better Ethernet run delivers both power and video signal, reducing labor time and infrastructure cost compared to separate power circuits. The microphone input enables integrators to design audio-inclusive systems without external audio capture modules.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

From a systems integration perspective, the Bosch NDE-8703-RXL strikes a practical balance between mechanical durability and operational efficiency. I've specified this camera in environments where vandalism risk is genuine—correctional facilities, transit stations, and high-traffic municipal spaces—and the IK11 rating consistently justifies its deployment. The varifocal 4.4–10 mm lens reduces the number of SKUs required for projects with varying coverage distances, which simplifies procurement and field spares management.

Technical Highlights:

• Compression Flexibility: H.265 encoding delivers 50% better bandwidth efficiency than H.264 at comparable image quality, critical for facilities with bandwidth constraints or high camera counts
• IR and Day/Night Operation: Infrared illumination supports continuous surveillance without reliance on artificial lighting, reducing energy costs and enabling covert nighttime monitoring
• Sealed Design (IP66): Full dust protection and water resistance enable outdoor eave mounting and semi-exposed interior locations without enclosure or heater/blower modules

Deployment Considerations:

• Verify VMS platform ONVIF compliance prior to large-scale rollout; nearly all modern systems support it, but legacy implementations may require firmware updates
• Plan varifocal lens configuration during site survey to avoid repeated field adjustments; document lens position for troubleshooting and replacement continuity
• Position IR illumination away from highly reflective surfaces (polished metal, glass) to avoid washout during night operation

The NDE-8703-RXL delivers solid performance in tough environments without requiring expensive ruggedized enclosures or separate illumination equipment. It's a workhorse choice for integrators managing mixed-risk portfolios where standardization and cost control matter as much as raw feature count.
