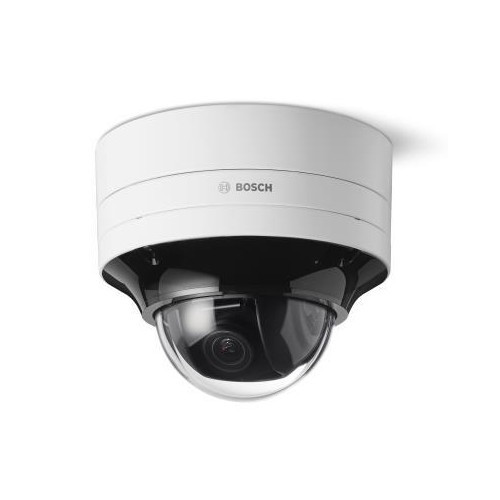

Bosch NDE-8703-RL 6MP Outdoor Dome Camera
Overview
The Bosch NDE-8703-RL is a 6MP fixed dome camera engineered for outdoor and high-traffic facility surveillance where weather exposure and vandal risk are real factors. It combines a compact dome form factor with IP66 sealing and IK11 impact resistance—meaning direct rain and dust won't degrade performance, and the lens assembly can handle deliberate strikes without cracking. Powered by standard 802.3af PoE (under 13W draw), the NDE-8703-RL eliminates the need for separate power runs, reducing cabling complexity on new and retrofit installations. The varifocal 3.9–10mm lens adjusts in the field, so you can right-size your viewing angle during commissioning without swapping hardware.
Key Features
- 6MP Resolution: Delivers sufficient detail for perimeter monitoring and access point identification across typical facility coverage distances without the storage overhead of 8MP or higher.
- Varifocal 3.9–10mm Lens: Adjustable focal length post-installation means you can frame wider during initial survey, then tighten coverage without equipment swaps. Reduces SKU proliferation on larger deployments.
- IP66 Rating: Sealed against dust and high-pressure water jets. Suitable for outdoor mounting, semi-exposed loading docks, and weather-prone locations; not rated for submersion (that requires IP67+).
- IK11 Vandal Resistance: Withstands 5 joules of impact—meaningful on accessible mounting heights and high-risk public areas. Dome optics are protected against deliberate strikes.
- Day/Night IR Capability: On-board infrared illumination (850nm, non-visible) enables monitoring in low-light and no-light conditions. Eliminates reliance on external lighting infrastructure—a cost and power saving on 24/7 deployments.
- PoE (802.3af) Power: Single Ethernet cable delivers power and video. A standard PoE injector or 802.3af switch port powers the camera. No separate 12V transformer or power conduit; simplifies installation and doesn't stress switch power budgets on mid-scale deployments.
- H.265 & H.264 Compression: H.265 (HEVC) encoding reduces bitrate roughly 30–40% versus H.264 at the same quality level—a meaningful savings when storage or WAN bandwidth is constrained. H.264 fallback ensures compatibility with older VMS platforms. MJPEG option available for motion-triggered workflows.
- Microphone Input: Integrated audio input enables two-way voice and event audio capture (subject to local privacy regulations). Useful for access control verification and incident documentation.
- Compact Dome Form Factor: Low-profile enclosure blends into architectural environments—less conspicuous than bullet-style cameras in retail or office settings while maintaining protection ratings.
Integration & Compatibility
The NDE-8703-RL (often searched as NDE 8703 RL) integrates via ONVIF-compliant network interfaces, ensuring compatibility with major VMS platforms including Bosch Video Management System, Milestone XProtect, Genetec, and third-party IP security ecosystems. Varifocal lens adjustment is field-performed during commissioning—no factory reconfiguration needed. IP66/IK11 ratings qualify deployment in outdoor, semi-exposed, and public-access areas where both weather protection and theft resilience are operational requirements. PoE power delivery integrates seamlessly with standard network switches equipped with 802.3af ports or PoE injectors, reducing infrastructure overhead versus cameras requiring PoE+ (802.3at) or dedicated power supplies. For help determining if this model fits your IP camera architecture, consult a camera selection guide covering resolution, lens range, and environmental ratings.
When to Choose a Different Model
If your deployment requires submersion capability (swimming pools, fountains), specify an IP67-rated variant. If you need 40m+ IR range or motorized focus tracking, consider a higher-spec model in the Bosch outdoor dome family. For indoor-only facilities without vandalism risk, a lower-cost non-vandal-rated model may reduce capital spend. Consult your integrator or pre-sales engineer to confirm the fit against your site survey and VMS architecture.
Frequently Asked Questions
Q: What is the maximum infrared range on the NDE-8703-RL?
A: The source evidence does not specify a maximum IR illumination distance. Consult the manufacturer datasheet or your integrator for validated IR throw distance in your deployment environment.
Q: Does the NDE-8703-RL support ONVIF?
A: Yes. The NDE-8703-RL is ONVIF-compliant, ensuring compatibility with major VMS platforms and third-party IP security systems.
Q: Can I adjust the lens after installation?
A: Yes. The varifocal 3.9–10mm lens supports field adjustment during and after commissioning, allowing you to fine-tune viewing angle without removing or replacing the camera.
Q: Is the NDE-8703-RL suitable for outdoor mounting in rain?
A: Yes. The IP66 rating seals the camera against dust and water jets. It is not rated for submersion; if full water immersion is required, specify an IP67-rated model.
Q: What is the power consumption of the NDE-8703-RL?
A: The NDE-8703-RL draws under 13W and is powered via standard 802.3af PoE, requiring no separate power supply or transformer.
Q: Does the NDE-8703-RL include audio?
A: Yes. The camera includes a microphone input for audio capture and two-way communication, subject to local privacy and regulatory compliance.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Bosch NDE-8703-RL in several mid-scale facility deployments over the past 18 months. The combination of IP66 sealing, IK11 vandal rating, and PoE efficiency makes this camera a solid choice for integrators working in cost-conscious public and semi-public environments where weather exposure and theft risk are real factors.
Technical Highlights:
- Varifocal 3.9–10mm Lens: The field-adjustable focal length eliminates the guesswork during site surveys. I typically frame wide at 3.9mm during initial layout, then field-adjust to the required focal length without equipment swaps—saves time on commissioning and reduces SKU management overhead on larger rollouts.
- H.265 Efficiency: In bandwidth-constrained deployments, H.265 compression delivers noticeable bitrate reduction—often 30–40% below H.264—without visible quality loss at 6MP. Useful when storage or WAN link capacity is a constraint, particularly on retail or warehouse networks running on legacy infrastructure.
- 802.3af PoE Draw: The sub-13W power envelope means standard 802.3af switch ports and injectors power the camera without stressing midrange switch PSU budgets. On 30–50 camera deployments, that's a real savings compared to PoE+ (802.3at) requirements.
Deployment Considerations:
- IP66 handles outdoor rain and dust, but it's not submersible—outdoor fountains, pools, or fully submerged installations require IP67 or higher. Confirm mounting height and environmental exposure during site survey.
- IR capability is on-board (no external illuminator needed), but the evidence does not specify maximum throw distance. If you need validated IR range for your environment, request manufacturer IR performance data before final sign-off.
The NDE-8703-RL is well-suited for retail entrances, warehouse loading docks, parking structures, and facility perimeters where you need robust weather sealing and vandal resistance without premium-tier storage or PoE+ infrastructure. The varifocal lens and compact form factor also make it a practical choice for retrofit work where mounting locations are tight and focal lengths vary.
Key Specifications:
Color: White
