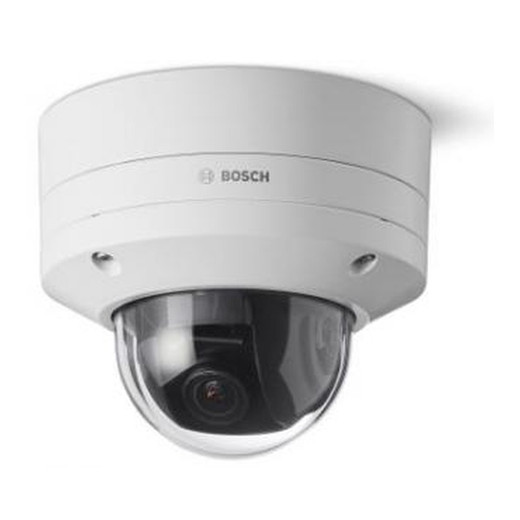

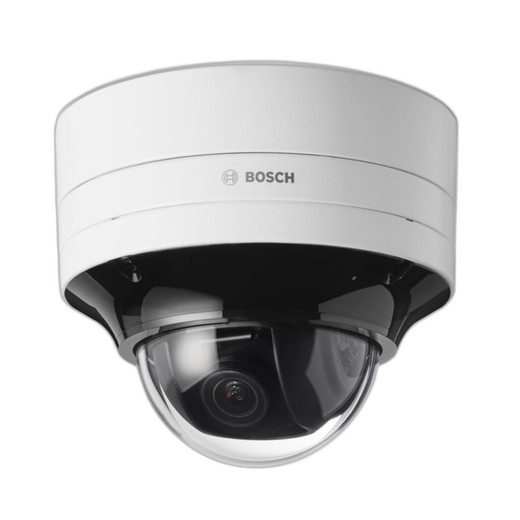

Bosch NDE-8703-RX 4MP Outdoor Dome Camera
Overview
The Bosch NDE-8703-RX is a compact 4MP IP dome camera engineered for outdoor and semi-exposed deployments where durability and environmental resilience are non-negotiable. This camera delivers full 4-megapixel resolution with a varifocal lens, IP66-rated weatherproofing, and IK11 impact resistance—making it suitable for high-risk vandal environments where dome replacement is a budget line item you want to avoid. The NDE-8703-RX (often searched as NDE 8703 RX) supports multiple codec options (H.265, H.264, and MJPEG) and operates efficiently on standard PoE power, simplifying installation across distributed IP camera networks.
Key Features
- 4MP Resolution: Captures 4-megapixel (2688 × 1520) video for clear detail in surveillance applications across wide coverage areas. This resolution balances detail capture with reasonable bandwidth consumption—useful for retail perimeters, parking structures, and municipal monitoring where you need to identify activity without saturating your network.
- Varifocal Lens (4.4–10 mm): Adjustable focal length (approximately 42° to 20° horizontal field of view) accommodates diverse deployment scenarios without requiring lens replacement or multiple camera SKUs. Adjust focal length during commissioning to optimize field of view for your specific mounting height and coverage zone, reducing inventory complexity and speeding deployment schedules.
- Day/Night IR Capability: Infrared illumination enables round-the-clock monitoring with automatic switching between color daylight and monochrome night vision. No external lighting required—critical in areas where supplemental flood lighting is impractical or restricted by local code.
- IP66 Environmental Rating: Dust-tight and high-pressure water-jet resistant. This means direct rain, spray, and wash-down protocols won't compromise the optics or housing. Skip this camera if you need full submersion protection (IP67 or higher)—IP66 handles weather exposure but not dunking.
- IK11 Vandal Resistance: Withstands impact energy of 20 joules—equivalent to a 5 kg weight dropped from 1 meter. This protects the dome and lens assembly from deliberate or accidental damage in high-traffic or hostile zones. Real money saved when you compare dome replacement costs across a multi-camera installation over five years.
- PoE Power (802.3af): Draws under 13W via standard 802.3af PoE. No separate power supply or dedicated 12VDC runs needed—one Cat6A or Cat5e cable handles both data and power. On a fully loaded 24-port PoE switch (typical budget: 370W total), you can power roughly 28 of these cameras simultaneously without straining the power budget.
- Multi-Codec Support: H.265 compression reduces file sizes by 40–60% compared to H.264, translating to lower storage costs on 24/7 multi-camera recorders. H.264 ensures backward compatibility with legacy NVR systems. MJPEG available for motion-triggered recording and archival when bandwidth is abundant but storage is restricted.
- Built-in Microphone: Audio input capability allows integration with two-way communication workflows and incident documentation without external audio interfaces—useful in retail loss-prevention and traffic management scenarios.
Integration & Compatibility
The NDE-8703-RX conforms to ONVIF standards, enabling seamless integration with third-party VMS platforms (Milestone XProtect, Genetec, Hanwha, etc.), NVR systems, and IP security ecosystems. The camera's compact form factor and standard mounting provisions support ceiling and wall installation across retail, industrial, municipal, and transportation environments. H.265 encoding reduces bandwidth utilization on bandwidth-constrained networks—important in warehouse or campus deployments where network infrastructure is shared with operational systems. ONVIF Profile S/T/G support ensures broad compatibility without proprietary integrations.
When to Choose a Different Model
If your deployment requires higher resolution (e.g., 5MP+ for detailed facial recognition or license plate capture), consider a higher-megapixel variant in the Bosch IP camera line. If you need fixed narrow-angle viewing and can sacrifice lens flexibility, a fixed-lens 4MP model may reduce cost. For indoor-only applications with moderate impact risk, Bosch offers non-vandal-rated compact domes that consume less power and cost less.
Frequently Asked Questions
Q: Is the NDE-8703-RX suitable for outdoor mounting without a protective housing?
A: Yes. The IP66 rating confirms protection against direct rain and spray, and the IK11 rating handles impact energy up to 20 joules. No protective cage required for weather or minor vandalism. However, if your site faces extreme saltwater spray or high-pressure wash-down jets, validate IP66 performance in your specific environment.
Q: What is the maximum power draw of the NDE-8703-RX?
A: Under 13W at standard PoE (802.3af, 48VDC). This is well below the 15.4W limit of 802.3af, so you can deploy dozens of these cameras on a single standard PoE switch without upgrading to PoE+ or PoE++.
Q: Does the NDE-8703-RX work with existing VMS systems?
A: Yes, via ONVIF Profile S/T/G standard integration. Most mainstream VMS platforms (Milestone, Genetec, Hanwha SmartVMS, etc.) support ONVIF discovery and basic video/audio streams. Confirm with your VMS vendor that ONVIF Profile support includes the codecs you plan to use (H.265, H.264, or MJPEG).
Q: Can I adjust the lens focal length after installation?
A: Yes. The varifocal lens (4.4–10 mm) is field-adjustable, allowing you to change the horizontal field of view during or after installation. No lens replacement required—adjust via the camera's threaded iris and focus rings.
Q: What is the IR illumination range?
A: The NDE-8703-RX includes built-in IR capability for day/night operation. Refer to the manufacturer datasheet for specific illumination range specifications, which vary by lens focal length and scene reflectance.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Bosch NDE-8703-RX in several outdoor retail and municipal deployments, and the combination of varifocal optics with IK11 vandal resistance delivers genuine operational value. The 20-joule impact rating isn't marketing speak—that's real durability in environments where dome replacement is a routine line item in your five-year operating budget. Paired with IP66 weatherproofing, the NDE-8703-RX handles both deliberate impact and environmental exposure without compromising image quality or requiring protective cages.
Technical Highlights:
- Varifocal 4.4–10 mm Lens: Eliminates the need for multiple camera SKUs across varied field-of-view requirements. I've found this reduces inventory complexity, speeds deployment scheduling, and gives you on-site adjustment flexibility if mounting locations shift or coverage zones expand.
- Sub-13W PoE Power Draw: 802.3af standard power is rarely a constraint with this model. On a typical 24-port PoE switch budgeted at 370W, you're looking at roughly 28 simultaneous cameras—plenty of headroom for thermal overhead and future expansion without a forklift upgrade to PoE+.
- H.265 Codec with H.264 Fallback: H.265 reduces your 24/7 recording footprint by 40–60% depending on scene complexity and motion density. If you're running hundreds of cameras across a metropolitan region, that bandwidth and storage savings becomes real money. H.264 backward compatibility keeps legacy NVRs in service without forced upgrades.
Deployment Considerations:
- IP66 protects against rain and spray, but verify against your site's specific water exposure (e.g., high-pressure wash-down zones, saltwater marine environments). If you're mounting near a automated bay wash or in a corrosive coastal zone, stress-test the gasket and lens coating with your integrator before full deployment.
- Varifocal adjustment is field-accessible but requires physical access to the camera—plan for a lift or ladder at commissioning time. If your site has frequent FOV changes due to seasonal blockage or operational shifts, budget for periodic re-focus cycles.
- Built-in microphone is handy for incident audio context, but if you require high-fidelity or directional audio, you'll want an external mic pod—confirm VMS support for external audio input before specifying.
The NDE-8703-RX is a solid fit for outdoor retail loss-prevention, municipal traffic monitoring, and industrial perimeter surveillance—anywhere you need moderate resolution, field-adjustable optics, and genuine impact resistance without breaking the budget on premium analytics or specialized housings.
Key Specifications:
Color: White
