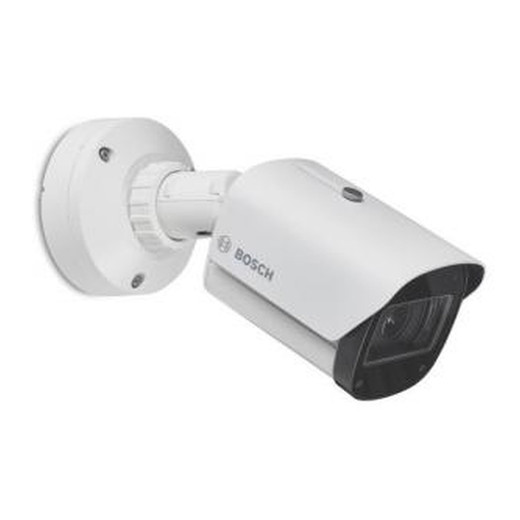

Bosch NBE-7703-ALX DINION 7100i IR 4MP Outdoor Bullet Camera

Bosch NBE-7703-ALX Varifocal Dome Camera

Overview

The Bosch NBE-7703-ALX is a 4MP varifocal dome camera designed for versatile indoor and outdoor security deployments requiring flexible focal length coverage and robust environmental protection. This camera combines a varifocal 4.7-10mm lens with 4MP resolution to deliver adaptive framing capabilities across monitored areas. The NBE-7703-ALX operates on standard PoE (802.3af) power, eliminating the need for separate power infrastructure while supporting efficient network integration.

Key Features

• 4MP Resolution: Captures detailed video at 2688×1520 resolution for effective identification and situational awareness in security applications
• Varifocal Lens (4.7-10mm): Provides adjustable focal length coverage, allowing field-of-view customization during installation and operation without lens replacement
• PoE Power (802.3af): Single-cable connectivity simplifies deployment and reduces infrastructure complexity on existing network runs
• IP67 Environmental Rating: Sealed against dust and water immersion to 1 meter, suitable for both indoor and outdoor installations in challenging conditions
• IK10 Vandal Resistance: Withstands impact energy up to 20 joules, protecting the camera lens and housing against intentional damage in high-risk environments
• IR Day/Night Capability: OptimizedIR illumination enables operation in complete darkness without auxiliary lighting, with automatic switching between color and monochrome modes
• Multiple Compression Formats: Supports H.265, H.264, and MJPEG video compression for flexible integration with legacy and modern VMS platforms
• Built-in Microphone: Audio capture enables two-way communication and forensic audio trails in security workflows
• Dome Form Factor: Weather-resistant housing and low-profile design suitable for ceiling and wall mounting in retail, transport, and perimeter applications

Integration & Compatibility

The NBE-7703-ALX (often searched as NBE 7703 ALX) operates as an ONVIF-compliant IP camera, enabling integration with standard video management systems and network cameras without proprietary gateways. The camera's multi-codec support—H.265, H.264, and MJPEG—ensures compatibility with both current deployments and legacy infrastructure. PoE power delivery aligns with IEEE 802.3af standards, allowing operation on standard PoE switches without requiring PoE+ infrastructure. Microphone audio input supports integration with event-driven VMS applications and forensic workflows requiring correlated video and audio evidence.

Deployment in IP67-rated and IK10-vandal-resistant configurations makes the NBE-7703-ALX suitable for outdoor perimeter monitoring, transit stations, retail parking areas, and utility installations where environmental exposure and intentional tampering are risk factors. The varifocal lens reduces post-installation rework, enabling focal length adjustment on-site without returning the camera for re-lensing.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Bosch NBE-7703-ALX is a well-engineered choice for security integrators deploying mixed-environment networks where both indoor and outdoor sites need flexible focal coverage and strong environmental durability. The varifocal lens eliminates the need to stock multiple fixed-lens variants, streamlining logistics and field inventory. IP67 and IK10 ratings deliver genuine robustness—not marketing language—and the camera's PoE power profile keeps total infrastructure cost realistic.

Technical Highlights:

• Varifocal Flexibility: The 4.7-10mm lens eliminates focal length guessing during site surveys. Field adjustability post-installation reduces callbacks and re-work.
• IR Day/Night with H.265: OptimizedIR combined with H.265 compression delivers forensic-grade detail in low-light scenarios while managing bandwidth on constrained network uplinks.
• Vandal Resistance (IK10): 20-joule impact rating is real protection for high-traffic or hostile environments—transit, retail, and perimeter deployments where lens tampering is a known threat.

Deployment Considerations:

• Confirm PoE switch available capacity before field deployment; 802.3af power is modest but limits per-port flexibility if multiple high-draw devices share the same switch.
• IR range scales with lens aperture and environmental reflectivity; test IR coverage during site validation in target outdoor locations, especially over distance.
• Verify ONVIF Profile S/T support with your chosen VMS before purchase to ensure audio and advanced codec features are fully realized in your platform.

The NBE-7703-ALX strikes a practical balance between cost, durability, and technical capability. It's a solid fit for integrators managing mixed-site portfolios and needing a single SKU that handles both controlled and harsh environments without compromise.
