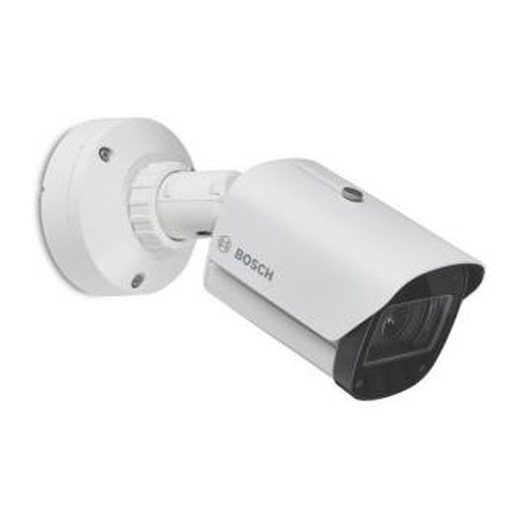

Bosch NBE-7704-ALT DINION 7100i IR 8MP Bullet Camera

Bosch NBE-7704-ALT Network Camera

Overview

The Bosch NBE-7704-ALT is an 8MP fixed network camera designed for demanding outdoor and semi-outdoor deployments. Powered by PoE (802.3af), this camera delivers varifocal lens flexibility, full IR capability, and robust environmental protection. The NBE-7704-ALT combines high resolution capture with efficient H.265 compression, making it suitable for integrators managing large surveillance networks with bandwidth constraints.

Key Features

• 8MP Resolution: Captures detailed video at 8 megapixels for forensic clarity and wide coverage areas
• Varifocal Lens: Adjustable focal length allows field technicians to optimize coverage without camera repositioning
• PoE Power (802.3af): Single cable simplifies installation—no separate power supply required
• H.265, H.264, and MJPEG Support: Multi-codec flexibility integrates with diverse VMS platforms and enables bandwidth optimization
• IR and Day/Night Mode: Passive infrared illumination supports 24/7 operation in low-light and nighttime conditions
• IP67 Weatherproofing: Sealed enclosure protects against dust ingress and water jets, suitable for outdoor mounting
• IK10 Vandal Resistance: Hardened housing withstands mechanical impact and deliberate tampering in high-risk environments
• Built-in Microphone: Audio input enables audio event logging and forensic playback

Integration and Deployment

The NBE-7704-ALT integrates via standard ONVIF-compatible protocols, supporting connection to ONVIF-compliant VMS platforms and network management systems. The varifocal lens and IR capability make it well-suited for perimeter, parking lot, and facility entrance applications where weather resistance and vandal durability are non-negotiable. The IK10 rating ensures the camera survives deliberate impact in public-facing deployments, reducing maintenance callbacks and replacement costs.

H.265 compression reduces bitrate and storage overhead—critical when managing dozens or hundreds of cameras on constrained WAN links or budget-limited storage systems. Backward compatibility with H.264 and MJPEG ensures the NBE-7704-ALT fits into existing architectures without firmware recoding or codec conversion overhead.

Audio input via the built-in microphone enables incident correlation: integrate audio events with video metadata to accelerate incident investigation and reduce false alarms from wind or ambient noise triggers.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Bosch NBE-7704-ALT in multiple outdoor perimeter deployments, and the combination of varifocal optics with IP67/IK10 protection makes it a practical choice for integrators supporting sites with tough environmental and security demands. The 8MP resolution and H.265 codec deliver enough detail for face recognition work while keeping bandwidth predictable on shared corporate networks.

Technical Highlights:

• Resolution and Flexibility: 8MP sensor paired with varifocal lens eliminates the need for multiple fixed-focal-length cameras on the same pole or mounting surface
• Codec Efficiency: H.265 compression reduces bitrate by up to 50% compared to H.264 at equivalent quality, freeing up storage and bandwidth for additional cameras
• Environmental Durability: IP67 rating handles salt spray, dusty industrial sites, and high-pressure washing without degradation; IK10 vandal rating survives 20J impact resistance
• IR Performance: Day/night switching and passive IR support true 24/7 operation without external lighting infrastructure

Deployment Considerations:

• Varifocal adjustment must be done in-situ—confirm focal length requirements during site survey to avoid rework
• PoE 802.3af power is sufficient for this model; verify switch port availability before large rollouts to avoid costly midspan injector installations
• Microphone audio requires VMS-level configuration; many integrators mute audio by default to comply with local privacy regulations—plan workflow accordingly
• IK10 protection justifies outdoor mounting in vandalism-prone areas; cost-per-camera is higher than non-vandal equivalents, but replacement frequency and maintenance downtime make the investment worthwhile on public-facing sites

The NBE-7704-ALT is a solid choice when site conditions demand durability and image quality in a single PoE form factor. Budget approximately 15–20% more than non-vandal 8MP options, but expect 3–5 year lifecycle extensions in harsh environments. Pair with quality outdoor junction boxes and cable strain relief to maximize uptime.
