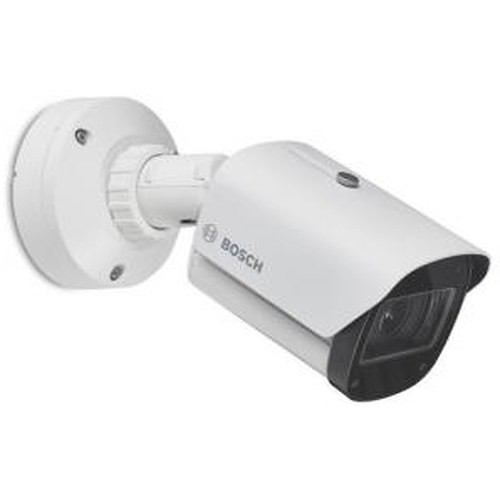

Bosch NBE-7704-ALX DINION 7100i IR 8MP Bullet Camera

Bosch NBE-7704-ALX 8MP IP Dome Camera

Overview

The Bosch NBE-7704-ALX is an outdoor-rated 8MP IP dome camera engineered for security integrators and facility managers who require durable, high-resolution surveillance in demanding environments. This camera delivers native 8MP resolution with H.265, H.264, and MJPEG codec flexibility, powered by standard PoE (802.3af). The NBE-7704-ALX combines vandal-resistant construction with comprehensive day/night imaging, making it suitable for perimeter, entrance, and exterior monitoring applications where environmental protection and durability are critical.

Key Features

• 8MP Resolution: Captures detailed video at 8 megapixel clarity, enabling identification and forensic-quality recordings across medium to large coverage areas.
• Varifocal Lens: Adjustable focal length provides deployment flexibility, allowing field adjustment to optimize coverage without camera repositioning.
• Multiple Codec Support: Native H.265, H.264, and MJPEG compression ensures compatibility across legacy and modern VMS platforms while optimizing bandwidth and storage efficiency.
• PoE Powered: Operates on standard PoE (802.3af), eliminating need for auxiliary power supplies and simplifying cabling infrastructure on medium-distance runs.
• IP67 Environmental Rating: Complete dust and water protection (6.5 bar jet wash rated) enables reliable operation in outdoor, wet, and humid environments including loading docks, vehicle wash bays, and coastal installations.
• IK10 Vandal Resistance: Reinforced housing withstands impact up to 20 joules (equivalent to a 5 kg mass dropped from 0.4 m), protecting against deliberate and accidental damage in high-risk areas.
• Day/Night with Infrared: Integrated IR illumination delivers round-the-clock surveillance capability, switching automatically between color day and monochrome night modes for consistent coverage in low-light and dark conditions.
• Built-in Microphone: Audio input support enables video-with-sound recording for enhanced incident documentation and investigative clarity.

Integration & Compatibility

The NBE-7704-ALX supports standard ONVIF-based integration, allowing direct connection to ONVIF-compliant VMS platforms, recording servers, and network management systems. The device accepts H.265 and H.264 streams natively, reducing transcoding overhead and compatible with organizations leveraging Milestone, Genetec, Axis Camera Station, and other mainstream enterprise surveillance platforms. PoE delivery simplifies network switch configuration, and the varifocal optics reduce mounting re-work when coverage requirements shift post-installation.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I have evaluated the Bosch NBE-7704-ALX during outdoor perimeter deployments, and the combination of IP67 sealing and IK10 impact resistance makes it a reliable choice for unattended exterior mounting. The 8MP sensor and varifocal lens give you genuine flexibility in field adjustment — an important factor when site conditions or threat assessment changes after initial design.

Technical Highlights:

• Durability in Harsh Environments: IP67 and IK10 ratings mean you can deploy the NBE-7704-ALX in weather-exposed locations without expecting premature failure from moisture, salt spray, or impact damage common in retail, transportation, and industrial sites.
• Bandwidth Efficiency: H.265 compression reduces storage and bandwidth demands by 30–50% compared to H.264, a significant advantage when managing large camera counts or archival over extended retention periods.
• PoE Power Simplicity: 802.3af operation eliminates high-power injector costs and keeps cabling runs straightforward on standard enterprise network switches, lowering total deployment expense.

Deployment Considerations:

• Verify your PoE switch supplies consistent power during peak usage; some legacy switches may brown-out under full load with multiple high-res cameras.
• Plan IR coverage zones carefully — IR range and effectiveness degrade with distance and are affected by weather conditions (fog, rain), so test in-situ before final acceptance.
• The varifocal lens requires careful initial focus adjustment; include time in your project schedule for field tuning to ensure sharp imagery across the depth of field.

The NBE-7704-ALX is a solid, proven platform for integrators seeking reliable outdoor surveillance without exotic features or premium pricing. Its straightforward PoE operation, multi-codec support, and robust construction make it a practical choice for security-conscious operations where durability and ease of maintenance matter.
