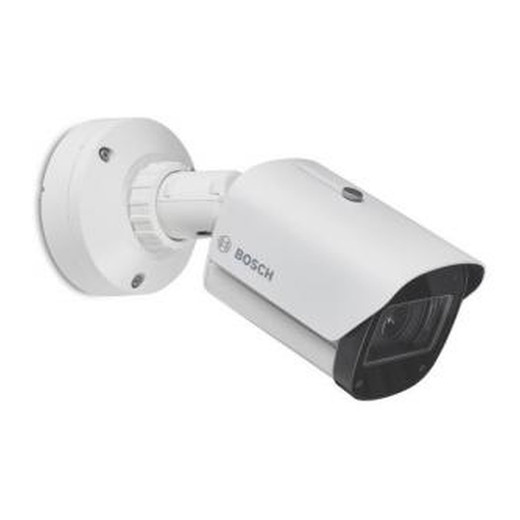

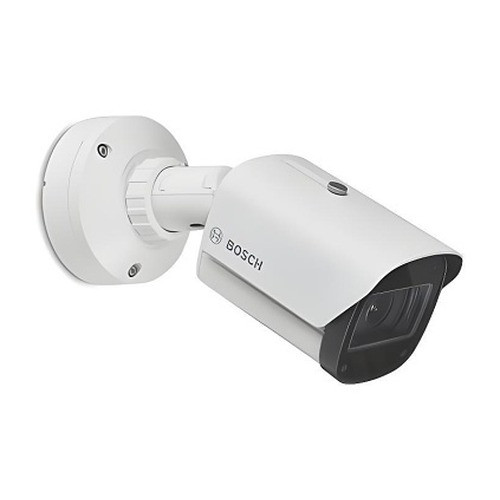

Bosch NBE-7703-ALXT Vandal-Resistant Network Camera
Overview
The Bosch NBE-7703-ALXT is a 4MP network camera designed for demanding indoor and outdoor security deployments where durability and optical flexibility are required. Built with IP67 environmental protection and IK10 vandal-resistant construction, the NBE-7703-ALXT operates reliably in harsh conditions while delivering consistent image quality across variable lighting. The camera's varifocal lens (10.5–47 mm) provides flexible field-of-view adjustment, eliminating the need for multiple camera models across diverse installation scenarios. Powered by a single PoE (802.3af) connection, this camera integrates seamlessly into standard network infrastructure without additional power runs.
Key Features
- 4MP Resolution: Delivers 2560 × 1920 image capture for detailed surveillance across medium to large coverage areas.
- Varifocal 10.5–47 mm Lens: Manual focus adjustment enables field-of-view optimization from wide to telephoto coverage without camera repositioning.
- PoE (802.3af) Powered: Single-cable deployment reduces installation complexity and conduit runs in both new and retrofit projects.
- IP67 Environmental Rating: Sealed against dust ingress and temporary water immersion, suitable for outdoor, wet, and semi-protected indoor installations.
- IK10 Vandal Resistance: Hardened construction withstands impact and intentional damage, critical for public-facing, accessible, or high-risk perimeter locations.
- Day/Night with IR: Integrated infrared illumination and automatic day/night switching maintain usable imagery in low-light and dark conditions.
- H.265, H.264, and MJPEG Compression: Multiple codec support enables bandwidth optimization and broad VMS compatibility. H.265 reduces storage and network load by up to 50% versus H.264 at equivalent quality.
- Built-In Microphone: Audio input support facilitates two-way communication and event-correlated sound recording for incident investigation.
Compression & Bandwidth Efficiency
The NBE-7703-ALXT supports H.265 (HEVC), H.264 (AVC), and MJPEG compression formats. H.265 encoding is recommended for new deployments to maximize storage efficiency and reduce network congestion in multi-camera systems. H.264 remains available for legacy VMS platforms and systems with limited transcoding resources. MJPEG output supports motion-triggered recording and real-time streaming applications where codec efficiency is less critical than simplicity.
Thermal Performance & Durability
IP67 rating confirms full dust sealing and protection against temporary immersion to 1 meter depth, making the NBE-7703-ALXT suitable for outdoor wall, ceiling, and pole mounting. IK10 rating provides resistance to 20 joule impact forces—equivalent to a 5 kg steel ball dropped from 1.5 meters—protecting the camera from deliberate vandalism and accidental impact damage common in accessible areas. This durability class is standard for perimeter, parking, and public-space deployments where camera accessibility increases tamper risk.
Integration & Compatibility
The NBE-7703-ALXT integrates with ONVIF-compliant video management systems, including Milestone XProtect, Genetec Security Center, and Axis Camera Station. PoE power delivery from standards-compliant injectors or managed PoE switches eliminates the need for local AC power infrastructure. Microphone input connects to VMS recording and event-triggered alerts, enabling audio-assisted verification of intrusions, loitering, or facility access events.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Bosch NBE-7703-ALXT in both outdoor perimeter and indoor retail environments. The combination of varifocal optics and IP67/IK10 durability makes it a practical choice for integrators managing mixed-use sites where camera mounting flexibility and environmental hardening are equally important. The varifocal lens eliminates the need to stock multiple focal-length variants—a real advantage in distributed deployments.
Technical Highlights:
- Varifocal Coverage Flexibility: The 10.5–47 mm lens covers wide hallway monitoring through mid-range perimeter surveillance without optical zoom, reducing motion blur and keeping frame rates stable.
- H.265 Efficiency: Switching from H.264 to H.265 cuts video file sizes by roughly 50%, a meaningful reduction when managing 4MP streams across large camera counts.
- Sealed Reliability: IP67 + IK10 construction eliminates weather-related downtime and reduces warranty claims from impact damage in accessible installations.
Deployment Considerations:
- Confirm PoE switch capacity before deploying multiple units; 802.3af is 15.4W per port at source, and the NBE-7703-ALXT operates within that budget, but cumulative loads across a switch should be verified.
- Position IR illuminators to avoid glare on reflective surfaces (glass, metal, water). Test night-mode imagery at the deployment site before final installation.
This is a solid workhorse for integrators prioritizing durability and optics flexibility over advanced analytics. It delivers reliable 4MP video in tough environments and plays well with standard ONVIF platforms. Recommended for outdoor perimeter, accessible indoor locations, and retrofit jobs where varifocal adjustment reduces installation labor.
