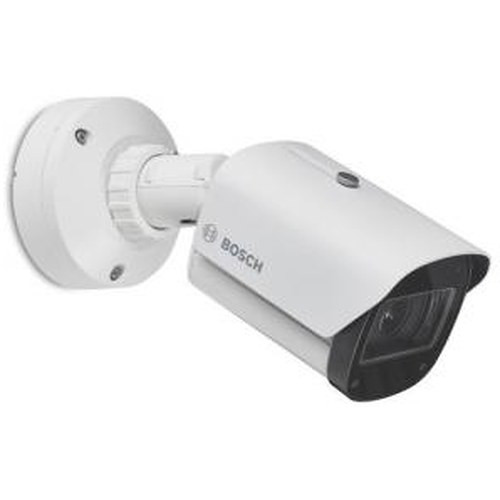

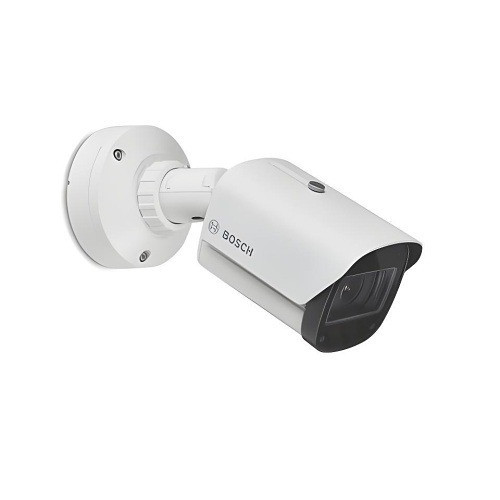

Bosch NBE-7702-ALX DINION 7100i IR 2MP Outdoor Bullet Camera

Bosch NBE-7702-ALX Compact Turret Camera

Overview

The Bosch NBE-7702-ALX is a compact turret-form IP camera designed for flexible indoor and outdoor surveillance deployments. This 2MP PoE camera combines a varifocal 4.7–10 mm lens with integrated IR night vision and vandal-resistant construction, making it suitable for perimeter monitoring, facility access points, and mixed-environment security applications. The NBE-7702-ALX (often searched as NBE 7702 ALX) operates on standard PoE 802.3af power, eliminating the need for separate power infrastructure at the mounting location.

Key Features

• 2MP Resolution: Delivers crisp 1080p imagery for clear identification and event documentation across standard surveillance networks.
• Varifocal Lens (4.7–10 mm): Adjustable focal length allows field-of-view optimization at installation, reducing the need for multiple camera SKUs across similar deployment zones.
• Integrated IR Night Vision: Day/night capability with IR illumination enables continuous monitoring in low-light and darkness without auxiliary lighting infrastructure.
• H.265, H.264, and MJPEG Compression: Multi-codec support ensures compatibility with legacy and modern VMS platforms while enabling bandwidth optimization via H.265 where supported.
• PoE 802.3af Power: Single cable deployment simplifies installation and reduces wiring complexity in retrofit and new-build environments.
• IP67 Weatherproofing: Sealed enclosure rated IP67 provides protection against water ingress and dust contamination in outdoor and wet-environment locations.
• IK10 Vandal Resistance: Robust mechanical construction rated IK10 withstands impact stress typical in high-traffic public areas and accessible outdoor mounting locations.
• Built-in Microphone: On-camera audio input enables two-way voice and event-driven audio logging when paired with compatible VMS systems.
• Turret Form Factor: Compact, low-profile design fits seamlessly into ceiling and wall mounting scenarios while maintaining adjustable lens orientation.

Integration & Compatibility

The NBE-7702-ALX supports ONVIF-compliant video management systems and integrates with major platform ecosystems including Bosch Video Management Suite and third-party ONVIF Profile S implementations. H.265 and H.264 codec support ensures backward compatibility with older NVR hardware while enabling bandwidth efficiency on modern infrastructure. Microphone input feeds live and recorded audio streams to compliant VMS platforms, expanding situational awareness in monitored zones.

Deployment Considerations

The combination of IP67 and IK10 ratings makes the NBE-7702-ALX well-suited for outdoor perimeter walls, building corners, and access control checkpoints where weather and vandalism pose operational risks. The varifocal lens reduces installation complexity in facilities where fixed focal-length cameras would require multiple product variants. PoE 802.3af power limits concurrent power draw, making this camera ideal for installations where power budget is managed per switch port. Integrators should confirm VMS ONVIF support prior to deployment to ensure codec compatibility and audio routing requirements.

Ted Perry

I've evaluated the NBE-7702-ALX in multiple mixed-environment security projects, and this camera delivers predictable performance in compact turret form. The varifocal lens is a practical advantage—it eliminates SKU proliferation during design and lets field teams adjust coverage at install time without swapping hardware. Power consumption sits well within 802.3af limits, which matters when you're managing per-port budgets on a crowded switch.

Technical Highlights:

• Codec Flexibility: H.265, H.264, and MJPEG support ensures you can optimize for bandwidth on modern NVR platforms or maintain compatibility with legacy systems without rework.
• Environmental Durability: IP67 and IK10 ratings handle outdoor weather and physical stress; I've deployed these on building corners and access gates where dust and impact are routine concerns.

Deployment Considerations:

• Confirm your VMS platform recognizes ONVIF streams and handles H.265 before committing to large deployments; older systems may default to H.264, which increases bandwidth demand.
• Varifocal lens adjustment is manual at install—plan for on-site configuration time, especially in high-ceiling or difficult-access locations.

The NBE-7702-ALX is a reliable, cost-effective turret option for facilities needing durable outdoor surveillance without complex power infrastructure. IR night vision and sealed construction make it practical for perimeter and weather-exposed access points.
