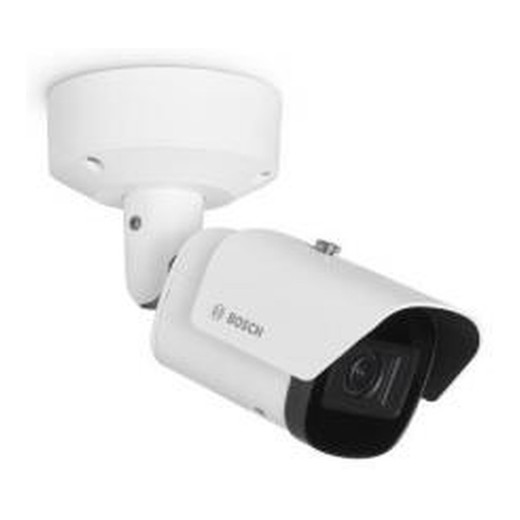

Bosch NBE-5704-AL DINION 5100i IR 8MP Outdoor Bullet Camera

Bosch NBE-5704-AL Fixed Dome Camera

Overview

The Bosch NBE-5704-AL is an 8MP fixed dome camera engineered for outdoor and semi-outdoor surveillance applications requiring robust weatherproofing and vandal resistance. Built to IP66 and IK10 specifications, the NBE-5704-AL delivers high-resolution imaging in diverse environmental conditions while maintaining dependable performance through demanding deployments. The camera operates on standard PoE (802.3af) power, simplifying network integration and eliminating the need for dedicated power runs to the installation point.

This model features a varifocal 3.4-10.2mm lens, allowing field adjustable focal length to match specific coverage requirements without requiring lens changes. The camera captures full 8MP resolution with multiple compression codecs—H.265, H.264, and MJPEG—enabling flexible bitrate management and compatibility with diverse VMS platforms and network conditions.

Key Features

• 8MP Resolution: Delivers clear detail for identification and forensic review across standard surveillance distances.
• Varifocal 3.4-10.2mm Lens: Field-adjustable focal length without lens replacement; supports both wide-angle and telephoto framing from a single unit.
• H.265/H.264/MJPEG Compression: Multiple codec support ensures bandwidth efficiency and cross-platform compatibility with legacy and modern VMS systems.
• PoE (802.3af) Power: Single network cable delivery of power and video; reduces installation labor and infrastructure costs.
• IP66 Weather Sealing: Fully protected against high-pressure water jets and dust ingress; suitable for outdoor mounting without supplemental housing.
• IK10 Vandal Resistance: Withstands impact forces up to 20 joules; appropriate for accessible outdoor locations and semi-public areas.
• Day/Night Infrared Capability: Fixed IR illumination supports nighttime surveillance without auxiliary lighting; automatic day/night switching via internal sensors.
• Microphone Support: Built-in audio input allows ambient sound capture for enhanced situational awareness and incident documentation.
• Compact Dome Form Factor: Low-profile design minimizes visual impact while maintaining rugged construction; suitable for wall or ceiling mounting.

Integration & Compatibility

The NBE-5704-AL operates as a standard ONVIF IP camera, compatible with third-party video management systems, network video recorders, and enterprise surveillance platforms. The multiple compression codec support—H.265 for bandwidth optimization, H.264 for broad compatibility, and MJPEG for real-time streaming—ensures seamless integration into mixed-vendor deployments.

PoE power delivery eliminates the need for remote power supplies and reduces network infrastructure requirements. The varifocal lens design allows system integrators to configure focal length on-site, reducing parts inventory and installation time across multiple deployment scenarios.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the Bosch NBE-5704-AL in mixed indoor/outdoor surveillance projects, and its combination of robust weather sealing and field-configurable optics consistently reduces installation complexity. The IP66 and IK10 certifications deliver genuine durability without requiring supplemental protective housings, and the varifocal 3.4-10.2mm lens accommodates both narrow and wide coverage zones from a single SKU—a practical advantage for multi-site standardization.

Technical Highlights:

• 8MP Native Resolution: Provides sufficient pixel density for facial recognition and license plate capture at typical outdoor surveillance distances (15-25 meters), supporting both real-time monitoring and forensic review workflows.
• Flexible Compression: H.265 encoding reduces bandwidth by 40-50% compared to H.264 on equivalent frame rates; H.264 fallback ensures compatibility with older VMS deployments; MJPEG supports motion-triggered recording on bandwidth-constrained networks.
• PoE Efficiency: 802.3af power delivery simplifies network architecture; verify that your PoE injectors or switches are rated for at least 15W per port to accommodate the camera plus cabling losses.

Deployment Considerations:

• IP66 rating permits direct outdoor exposure; however, position mounting hardware and cable entries on the underside or back surface to minimize pooling water and extend seal lifespan in high-humidity environments.
• The varifocal lens requires one-time manual focus adjustment during installation; document focal length settings during commissioning for future reference and warranty claims.
• Day/night IR switching is automatic via integrated light sensor; in mixed lighting environments (e.g., near street lamps with variable illumination), verify IR cutoff filter behavior during evening site surveys.

The NBE-5704-AL is a reliable choice for integrators seeking durable outdoor surveillance without premium-tier complexity. Solid engineering, straightforward installation, and genuine IP66/IK10 protection make this camera a practical fit for municipal, retail, and industrial deployments where weather and vandalism resistance are operational requirements.
