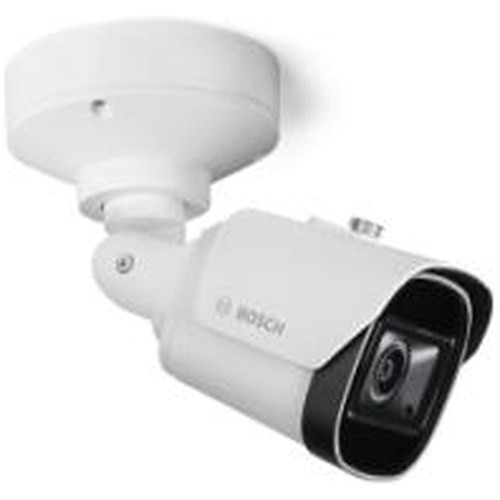

Bosch NBE-3702-AL DINION 3100i IR 2MP Outdoor Bullet Camera

Bosch NBE-3702-AL Compact Network Camera

Overview

The Bosch NBE-3702-AL is a 2MP compact network camera engineered for outdoor and mixed-environment surveillance applications. This model delivers reliable image capture across day and night conditions with a varifocal lens (3.3–10.2 mm), IP66-rated weather sealing, and IK10 vandal-resistant construction. Powered by standard PoE (802.3af), the NBE-3702-AL integrates seamlessly into existing network infrastructure without requiring dedicated power runs or specialized cabling.

Key Features

• 2MP Resolution: Captures detailed imagery at standard HD resolution (1920×1080 effective), suitable for perimeter monitoring, building facades, and general-purpose surveillance zones.
• Varifocal Lens (3.3–10.2 mm): Field-of-view adjustment from wide-angle to telephoto without camera repositioning, enabling flexible deployment in confined or variable-distance scenarios.
• IR Day/Night: Integrated infrared illumination enables continuous operation across day and night transitions without manual mode switching or external lighting infrastructure.
• IP66 Environmental Rating: Sealed construction withstands heavy rain, spray, and dust ingress, certified for outdoor mounting without supplemental protective housings.
• IK10 Vandal Resistance: Robust mechanical design rated to resist impact testing at the IK10 level, suitable for high-risk or publicly accessible locations.
• H.265 / H.264 / MJPEG Compression: Multiple codec support optimizes bandwidth consumption and storage efficiency. H.265 delivers 50% bitrate reduction versus H.264 at comparable quality, reducing NAS and recorder load in large-scale deployments.
• PoE 802.3af Power: Single-cable deployment simplifies installation; compatible with standard PoE switches and injectors certified to IEEE 802.3af standards.
• Built-in Microphone: Audio capture integrated into the camera body supports two-way communication and forensic audio logging where policy permits.

Integration & Compatibility

The NBE-3702-AL is built on open network standards, supporting ONVIF-compliant VMS platforms and recording systems. Varifocal lens adjustment simplifies installation workflows in retrofit and greenfield projects where precise focal-length matching is difficult to predict. The combination of PoE power, standard compression codecs, and IP-based video output ensures compatibility with Bosch Video Management Systems and third-party ONVIF-Profile-S-compliant NVRs and VMS software.

Deployment flexibility is enhanced by the compact form factor and universal mounting provisions, enabling installation in corner domes, wall brackets, or pendant configurations depending on environment and sightline requirements.

Operational Specifications

The NBE-3702-AL (often searched as NBE 3702 AL) operates reliably across industrial and commercial temperature ranges. Audio input via the integrated microphone supports standard IP audio protocols, enabling integrated communications in access-control and intercom applications. The camera's low PoE draw reduces power-budget stress on daisy-chained switch ports, enabling longer cabling runs and denser deployments per PoE power supply.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Bosch NBE-3702-AL in both retrofit and new-build network security projects. This camera occupies a practical middle ground—compact enough for tight mounting spaces, rugged enough for outdoor exposure, and straightforward enough for branch-office and light-commercial deployments where dedicated video engineering resources are limited.

Technical Highlights:

• Varifocal Lens Flexibility: The 3.3–10.2 mm zoom range eliminates the guesswork of fixed focal-length selection during design phase. This is particularly valuable in retrofit work where mounting points are already established and field-of-view adjustments would otherwise require camera relocation.
• Codec Efficiency: H.265 support reduces bandwidth requirements by approximately 50% compared to H.264. In bandwidth-constrained environments—branch sites on MPLS circuits, remote facilities with satellite uplinks—this difference translates directly to lower operating costs and fewer upgrade cycles.
• Environmental Durability: IP66 + IK10 ratings mean this camera can be mounted in exposed locations (under eaves, on perimeter posts, in loading dock areas) without supplemental protective enclosures. That simplifies mechanical installation and reduces long-term maintenance burden from protective housing corrosion or seal degradation.

Deployment Considerations:

• Confirm PoE switch capacity before large-scale deployments. While the NBE-3702-AL draws modest power (typical PoE budgets accommodate 8+ cameras per standard 802.3af switch port), high-density corner installations or long cable runs may require inline power testing.
• Position the IR emitter to avoid direct reflection off glass or metallic surfaces within the immediate field of view. IR washout from reflections is a common tuning issue in tight-quarters installations.
• Varifocal lens adjustment should be locked after commissioning to prevent gradual drift from vibration in high-traffic areas.

The NBE-3702-AL is a sensible choice for integrators managing mixed-environment portfolios where a single SKU must serve outdoor perimeter, building facade, and semi-protected interior roles. Its IP66/IK10 robustness eliminates special-case handling, and PoE simplicity cuts installation time. Recommended for branch deployments, campus perimeter, and light-commercial access monitoring where codec efficiency and long-term durability matter more than cutting-edge sensor performance.
